Trinity Mini
MINI TOWER CASE
Designed with ventilation in mind, this case delivers superior air flow while allowing for viewing of your front LED fans. This high-performance mini tower case comes equipped with a full tempered glass side panel to showcase the inside of your rig. Supports liquid cooling in the front and rear of the case for maximum efficiency cooling.

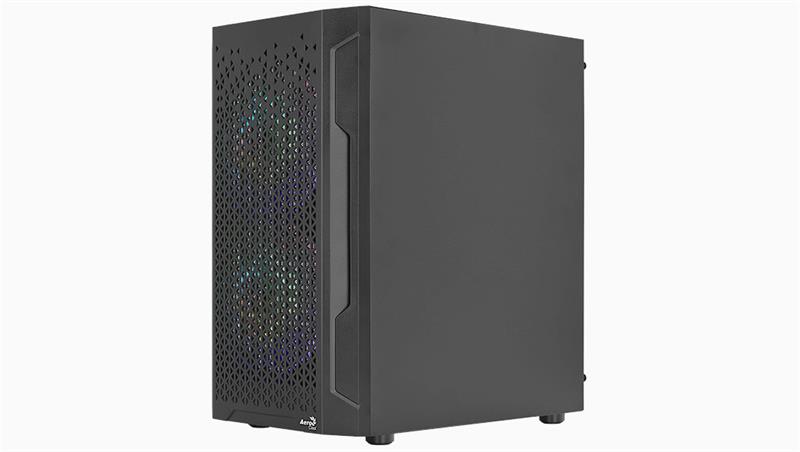

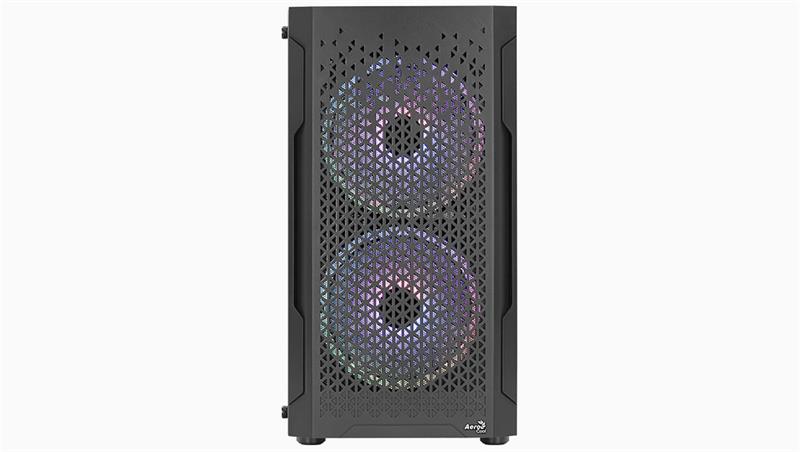

Front panel with air vents delivers superior air flow and ventilation while allowing for viewing of your front LED fans

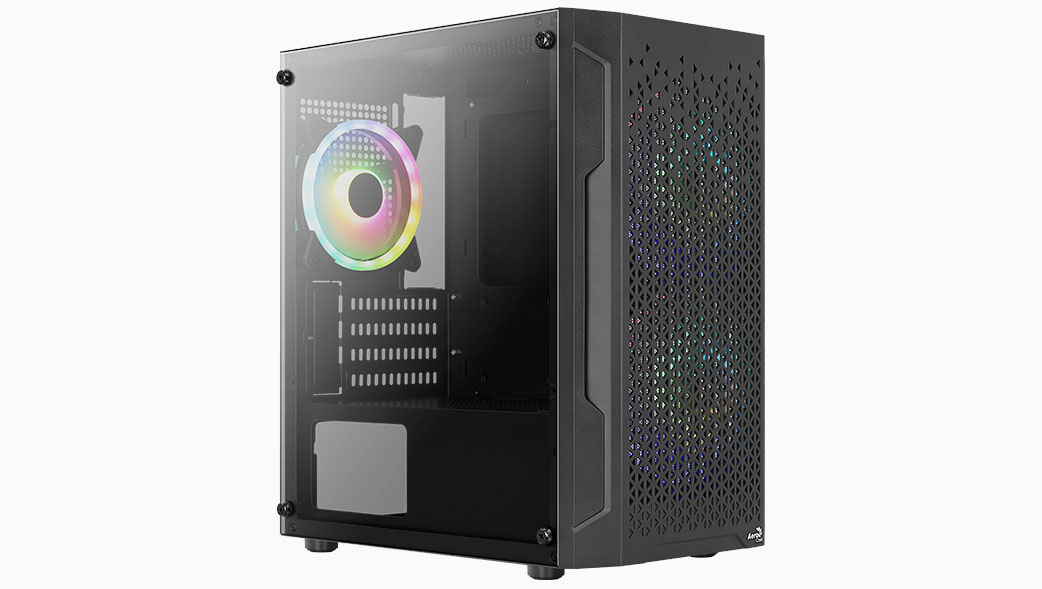

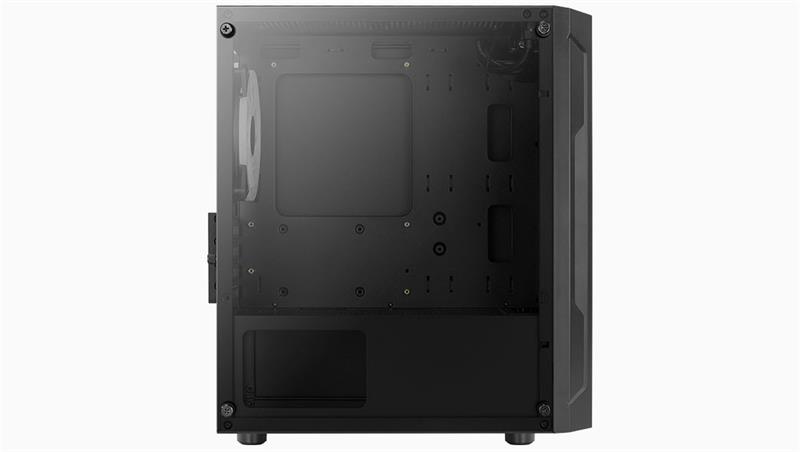

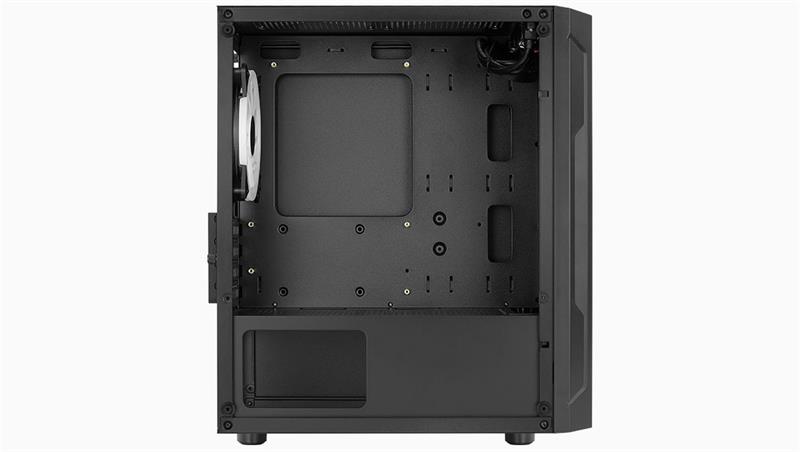

Comes equipped with a full tempered side panel to showcase the inside of your rig
Fan mounts on the PSU shroud support up to two 12cm fans for improved VGA cooling
Supports liquid cooling in the front and rear of the case
Supports air cooling in the front, top, and rear of the case

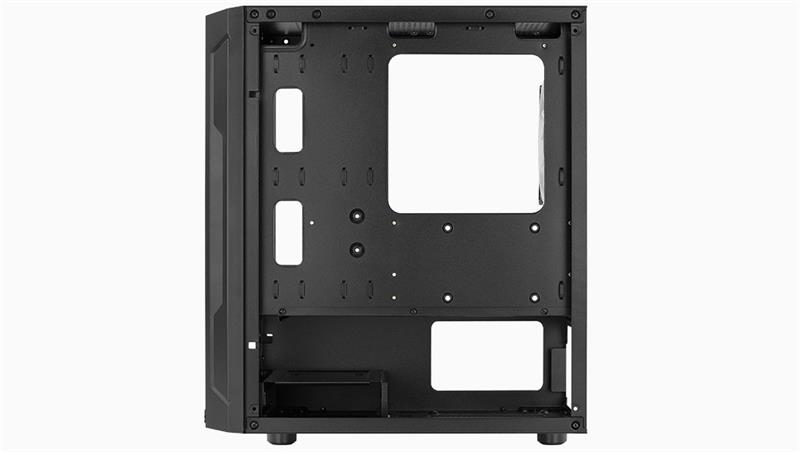

Dual chamber design for improved ventilation
Specifications are subject to change without notice.
Products and models may vary depending on your region.
Contact your local retailer for more information.
Model Trinity Mini
Case Type Mini Tower
Color Black
Body Material SPCC
Front Panel Material ABS
Steel Thickness 0.5mm
Motherboards Micro ATX/mini-ITX
Dimensions Internal 200 x 375 x 300mm (W x H x D)
Dimensions Overall 206.5 x 385 x 353.4mm (W x H x D)
3.5” Drive Bays 2 Max. (2 x 3.5”/2.5”)
2.5” Drive Bays 3 Max. (1 x 2.5” and 2 x 2.5”/3.5”)
Expansion Slots 4
GPU Clearance Supports GPU up to 297mm (without front radiator)
CPU Cooler Supports CPU cooler up to 158mm
Air Cooling Front: 120mm x 2 or 140mm x 2 (Max.)
Top: 120mm x 2 (Max.)

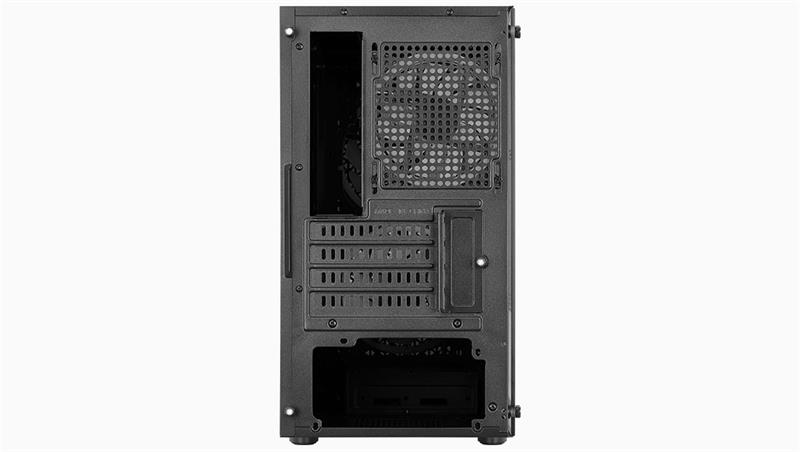

Rear: 120mm x 1 (Max.)
PSU Shroud: 120mm x 2 (Max.)
Liquid Cooling Front: 120/240mm Radiator (Optional)
(for 240mm, supports max thickness of 28mm)
Rear: 120mm Radiator (Optional)

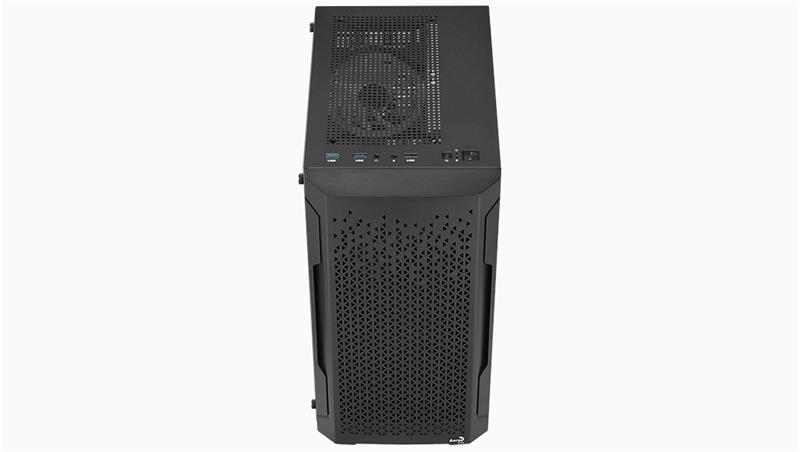

I/O Ports USB3.0 x 2 | USB2.0 x 1 | HD Audio & Mic.
Cable Man Depth 20.5mm
Power Supply ATX PSU (Including cables, up to 159mm) (Optional)
EAN Code Trinity Mini-G-BK-v1: 4710562758610 (includes: 12cm black fan x 1)
Trinity Mini-G-BK-v2: 4710562758627 (includes: 14cm FRGB fan x 2, 12cm FRGB fan x 1)
Trinity Mini-G-BK-v3: 4710562758634 (includes: 14cm RGB fan x 2, 12cm RGB fan x 1)
