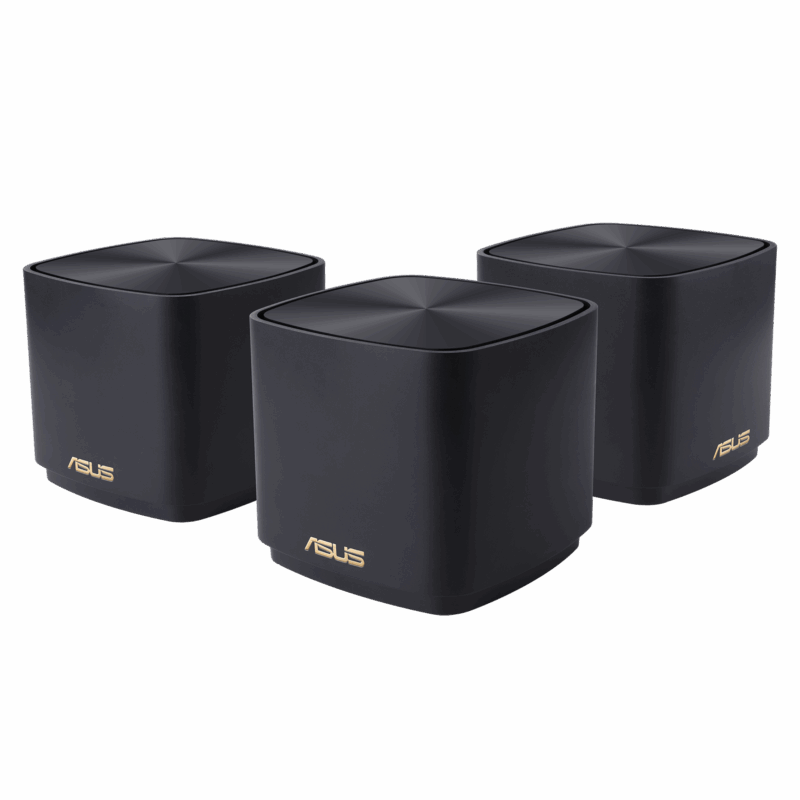

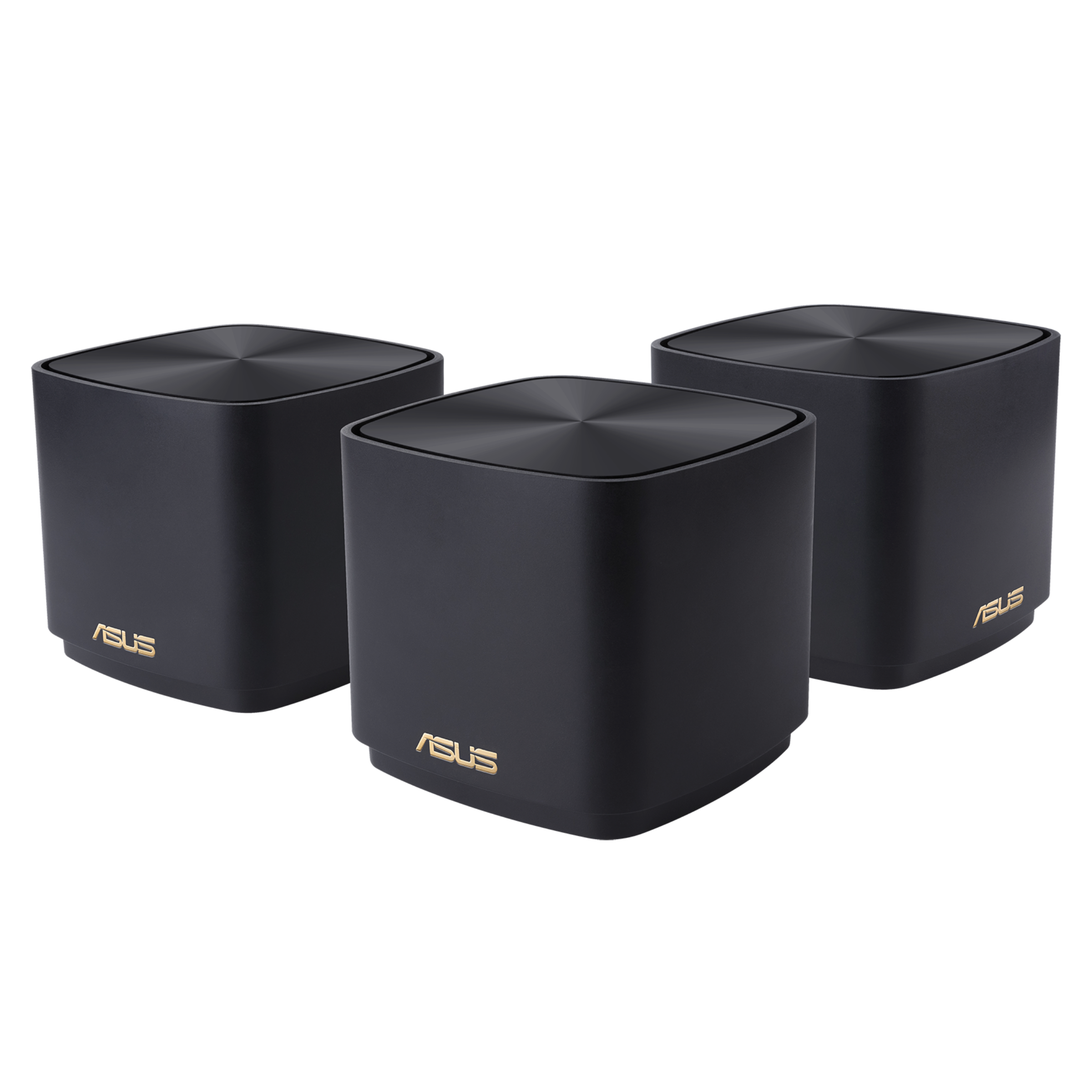

S ZenWiFi XD4 Plus
The ZenWiFi XD4 Plus system consists of three ASUS AX1800 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
WiFi 6
True 8K Streaming
WiFi 6 icon
8K Streaming icon
Live stream icon
ZenWiFi XD4 Plus puts your WiFi into top gear! With a total bandwidth of up to of 1800 Mbps, it’s up to 1.4X faster* than WiFi 5 routers **.
** The data compares speed of 2X2 11ax on 5GHz 80 MHz bandwidth with 1024QAM modulation to speed of 2×2 11ac on 5GHz 80MHz with 256QAM modulation.
The smoothest WiFi for all your devices
WiFi 6 (802.11ax) is engineered to cope with multiple devices, so even if your home’s packed with WiFi devices, you’ll still enjoy fast WiFi everywhere. WiFi 6 also uses special Target Wake Time technology that reduces the power consumption of connected devices by up to 7X, extending their battery life*.
* Compatible WiFi 6 device required
XD4 PLUS (B-3-PK)
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 4 (802.11n) TurboQAM : up to 867 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
Antenna
Internal dual-band antenna x 2
Transmit / Receive
MIMO technology
2.4GHz 2×2
5GHz 2×2
Memory
128 MB Flash, 256 MB RAM
Boosts Speed
MIMO technology
Operating Frequency
2.4 G Hz / 5 GHz
I/O Ports
RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1
Buttons
WPS Button, Reset Button
LED Indicator
Power x 1
Power Supply
„AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current“
Package Content
XD4 Plus
?RJ45 Ethernet cable
?Power adapter
?Quick start guide
?Warranty card
?Screw pack
Product Weight (g)
307 g
Product Dimensions
90 x 90 x 85 mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Parental Control
„Allow you to block access to unwanted websites and apps.“
Customized Internet Schedule
Router APP
APP: ASUS Router APP
Guest Network
Support Guest Network
• Maximum Guest Network Rule : 6
Guest Network Connection Time Limit
Security
WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
WPS
Let’s Encrypt
SSH
Firewall
AiProtection
AiProtection Classic
• Malicious Site Blocking
• Infected Device Prevention and Blocking
VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
Traffic Control
• Bandwidth Monitor
• Bandwidth Limiter
Traditional QoS
• Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
4G / 5G Auto Mobile Tethering
Port Forwarding
Port Triggering
DMZ
DDNS
LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
UTF-8 SSID
USB application
4G / 5G Auto Mobile Tethering
Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
