Elite 500 / Elite 500 ODD
Large Filtered Intakes
With/Without ODD Support
Versatile Cooling Options
Full Black Coating & PSU Cover
Breathable Power Supply Shroud
Room For Upgrades
Removable HDD Cage
Radiator Support – Rear120mm
Power Supply SupportBottom Mount
Dust FiltersTop
Kensington LockN/A
Dust FiltersFront
Warranty2 years
2.5″ / 3.5″ Drive Bays (Combo)2
Color(s)Black
SizeMid Tower
Dust FiltersBottom
Power Supply SupportATX
Fan Support – Rear1x 120mm
Radiator Support – Front280mm
Radiator Support – Front240mm
SeriesElite Series
Radiator Support – Front140mm
Motherboard SupportATX
Expansion Slots7
Pre-installed Fans – Rear1x 120mm
Radiator Support – Front120mm
Motherboard SupportMicro ATX
Fan Support – Top2x 140mm
Cable Routing18.5mm
Motherboard SupportMini ITX
Volume37.29L (E500-KGNN-S00, E500-KNNN-S00) (exlc. Protrusions), 42.40L (E500-KG5N-S00, E500-KN5N-S00) (exlc. Protrusions)
Fan Support – Top2x 120mm
I/O Panel2x USB 3.2 Gen 1 Type-A
Radiator Support – Front360mm (Remove ODD) (E500-KG5N-S00, E500-KN5N-S00)
Radiator Support – Top120 / 240mm (32mm max motherboard component height)
I/O Panel1x 3.5mm Headset Jack (Audio+Mic)
Clearance – PSU160mm (E500-KGNN-S00, E500-KNNN-S00), 180mm (E500-KG5N-S00, E500-KN5N-S00)
Clearance – CPU CoolerTG: 161mm, Steel: 163mm
Fan Support – Front2x 140mm, 3x 120mm (E500-KGNN-S00, E500-KNNN-S00), 2x 120mm (E500-KGNN-S00, E500-KNNN-S00), 3x 120mm (remove ODD bracket) (E500-KGNN-S00, E500-KNNN-S00)
5.25″ Drive Bays0 (E500-KGNN-S00, E500-KNNN-S00), 1 (E500-KG5N-S00, E500-KN5N-S00)
2.5″ Drive Bays3 (E500-KGNN-S00, E500-KNNN-S00), 5 (E500-KG5N-S00, E500-KN5N-S00)
MaterialsSteel, Plastic, Tempered Glass
Clearance – GFX350mm (w/o front fans & radiator) (E500-KGNN-S00, E500-KNNN-S00), 400mm (w/o front fans & radiator) (E500-KG5N-S00, E500-KN5N-S00)
Dimensions (L x W x H)409 x 204 x 455mm (incl. Protrusions), 402 x 204 x 455mm (excl. Protrusions), 464 x 204 x 455mm (incl Protrusions, ODD), 457 x 204 x 455mm (excl. Protrusions, ODD)

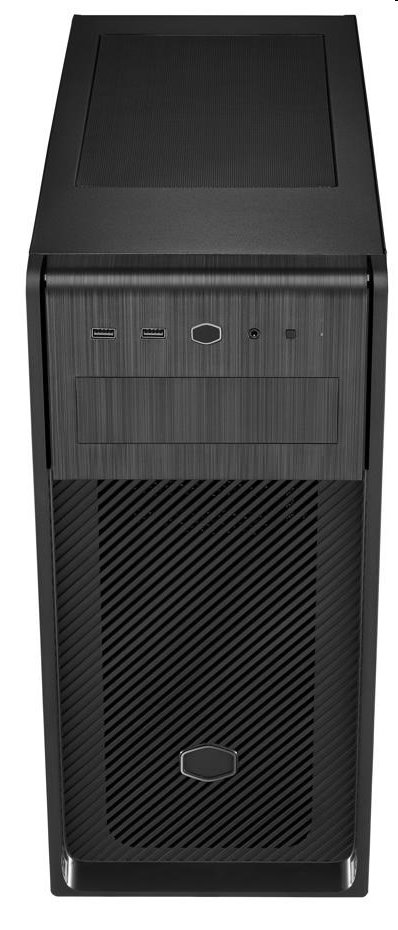

Model NumberE500-KGNN-S00 (TG), E500-KNNN-S00 (Steel), E500-KG5N-S00 (TG, ODD), E500-KN5N-S00 (Steel, ODD)
