Big Possibilities, Small Size

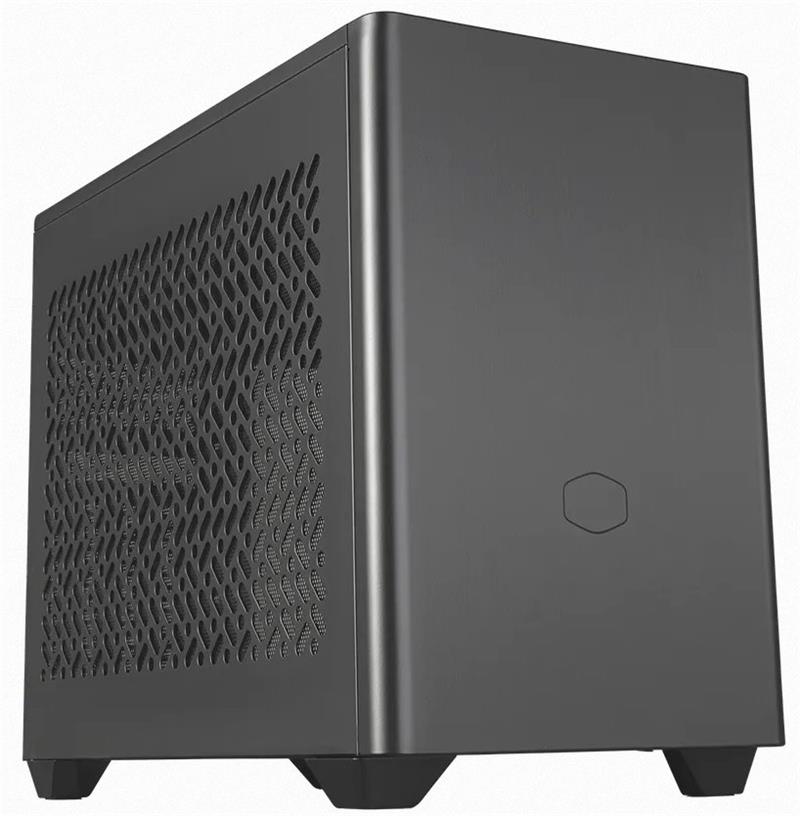

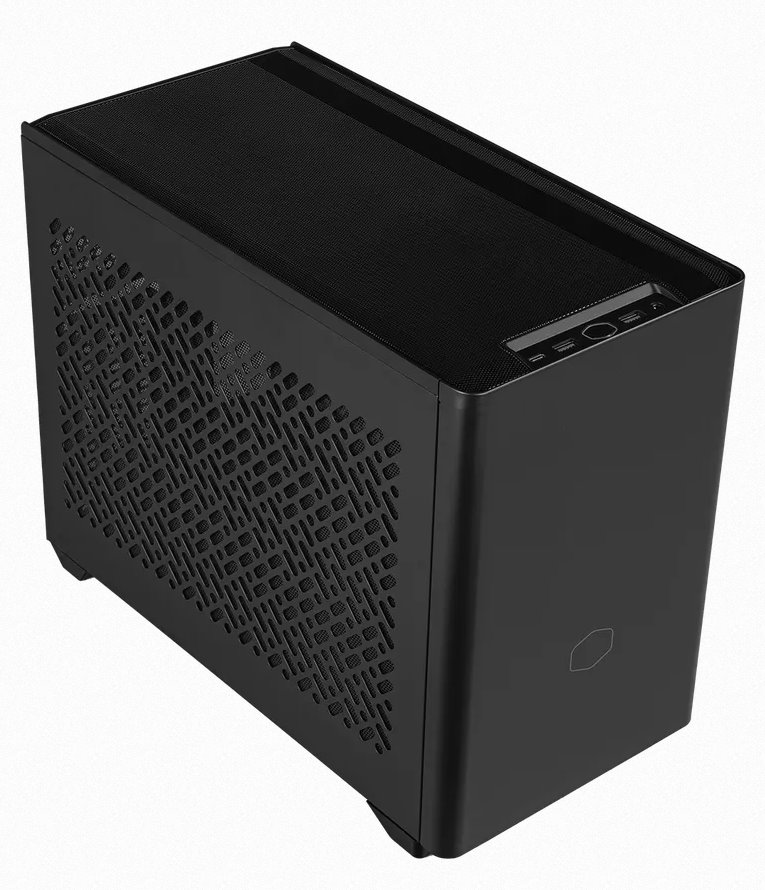

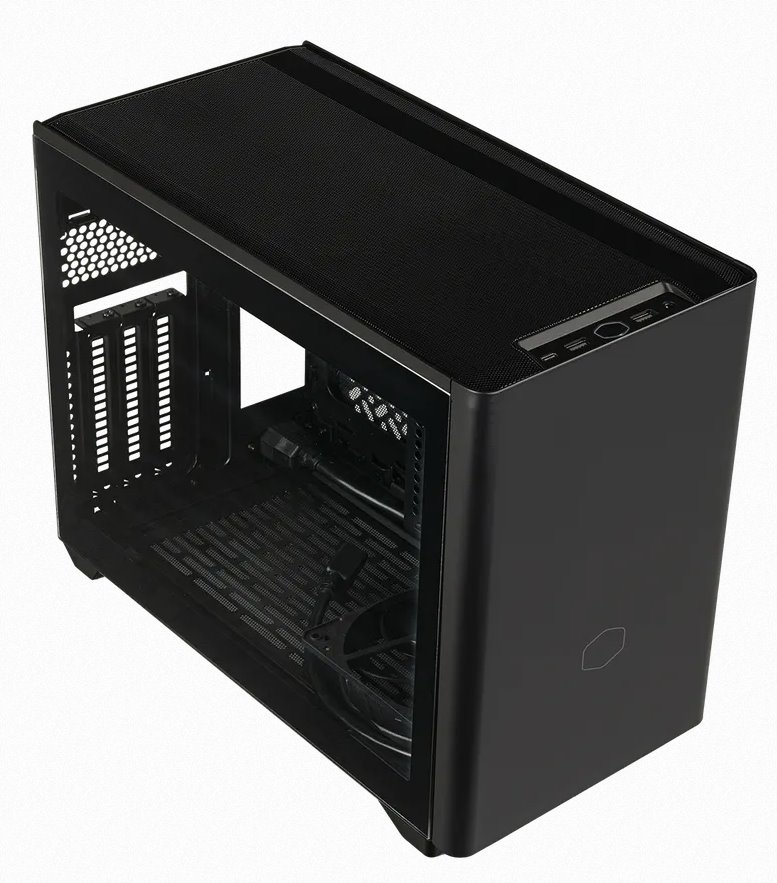

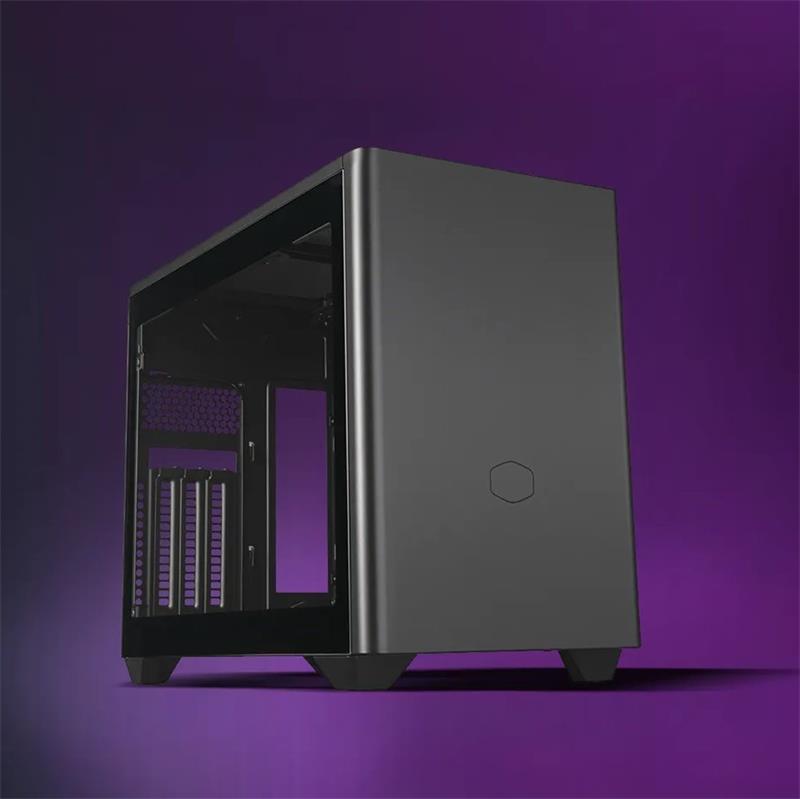

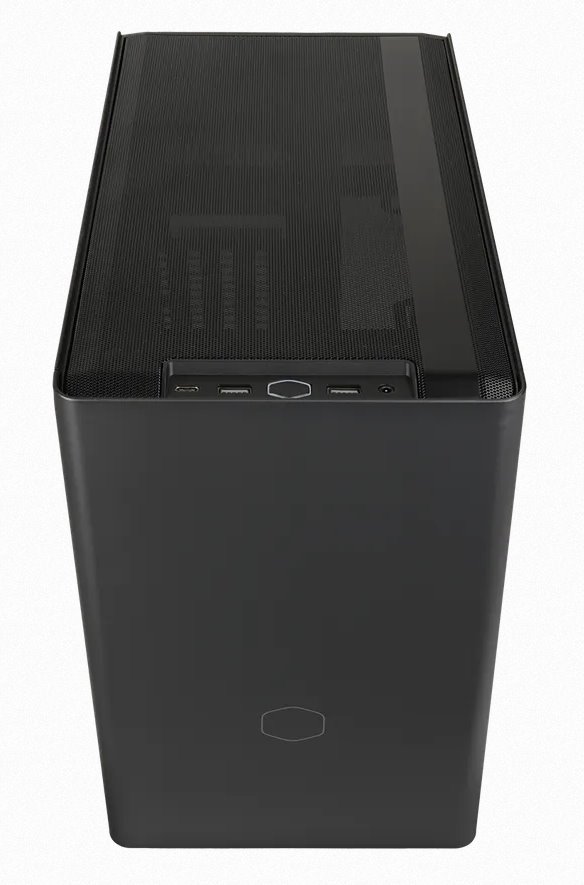

MasterBox NR200P V2
Compact yet powerful
Stay cool under pressure
Optimized GPU performance
Comprehensive GPU support
Easy, tool-free access
USB 3.2 Gen 2×2 Type C support
Refreshed NCORE style
Dust FiltersTop
2.5″ / 3.5″ Drive Bays (Combo)1
Materials – ExteriorSGCC Steel
Materials – ExteriorMesh
Pre-installed Fans – TopN/A
Exterior ColorBlack
SeriesMasterBox Series
Warranty2 years
Dust FiltersBottom
Radiator Support – Top280mm
SizeMini ITX
Materials – ExteriorABS Plastic
Dust FiltersLeft side
Dust FiltersRight side
Radiator Support – Top240mm
Fan Support – SideN/A
Radiator Support – RearN/A
Pre-installed Fans – Bottom1x 120mm 650~1800rpm PWM SickleFlow
Fan Support – Top2x 120/140mm
Radiator Support – Top140mm
Radiator Support – BottomN/A
Materials – Left Side PanelTempered Glass x1, Steel x1
Radiator Support – Top120mm
Exterior ColorWhite / Grey
Radiator Support – SideN/A
Fan Support – RearN/A
Included Accessories1x PCIe 4.0 x16 riser cable
Included Accessories1x GPU Holder
Expansion Slots3
Motherboard SupportMini ITX
Pre-installed Fans – RearN/A
Fan Support – Bottom2x 120mm (1x max 15mm, w/o 3.5″ HDD at the bottom)
I/O Panel2x USB 3.2 Gen 1 Type-A
Motherboard SupportMax. size: 170x180mm
Clearance – PSU130mm
Pre-installed Fans – FrontN/A
Power Supply SupportSFX
Power Supply SupportSFX-L
I/O Panel1x 3.5mm Headset Jack (Audio+Mic)
Volume18.25L
Clearance – CPU Cooler67mm
3.5″ Drive Bays1 (Max. 2, remove bottom fan)
2.5″ Drive Bays1 (Max. 2)
Clearance – GFXExceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot); Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot)
I/O Panel1x USB 3.2 Gen 2×2 Type C
Dimensions (L x W x H)372 x 185 x 292mm (incl. Protrusions)
Dimensions (L x W x H)360 x 185 x 274mm (excl. Protrusions)
Model NumberNR200PV2-KCNN-S00
Model NumberNR200PV2-WCNN-S00
