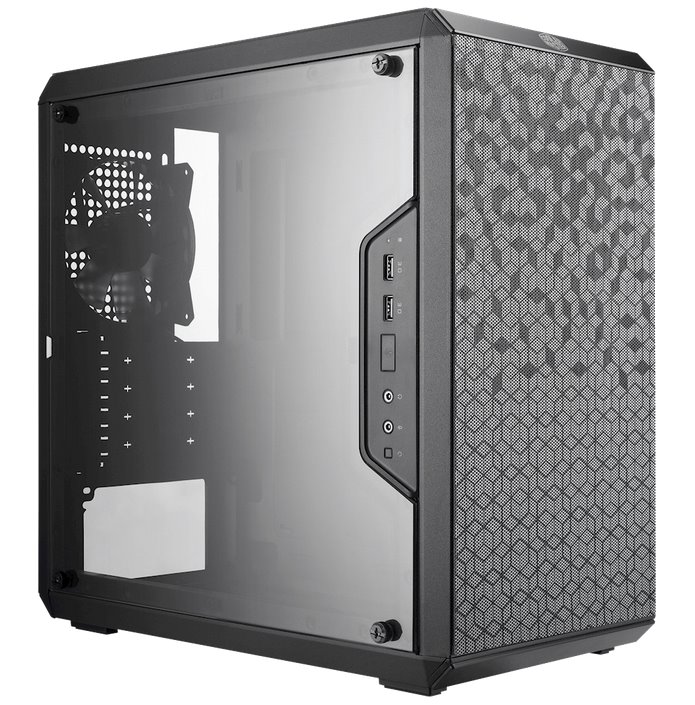

MasterBox Q300L
Choose Your Style
High Flexibility for System Building
Minimized Dimension with ATX PSU Support

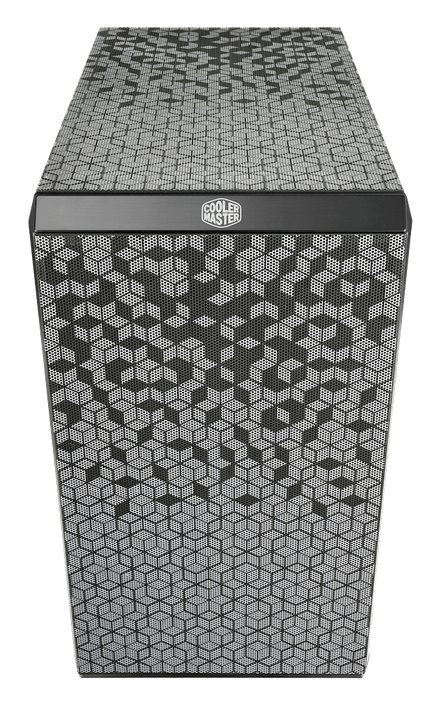

Patterned Dust Filter

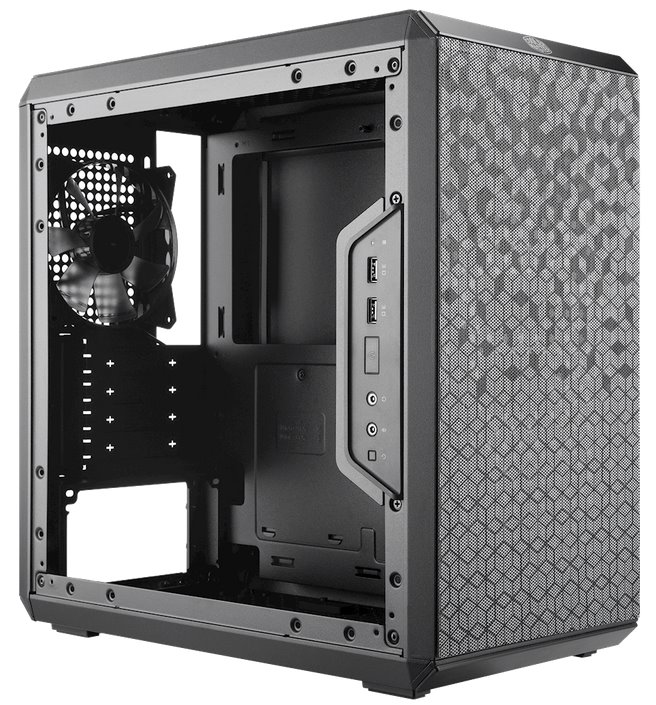

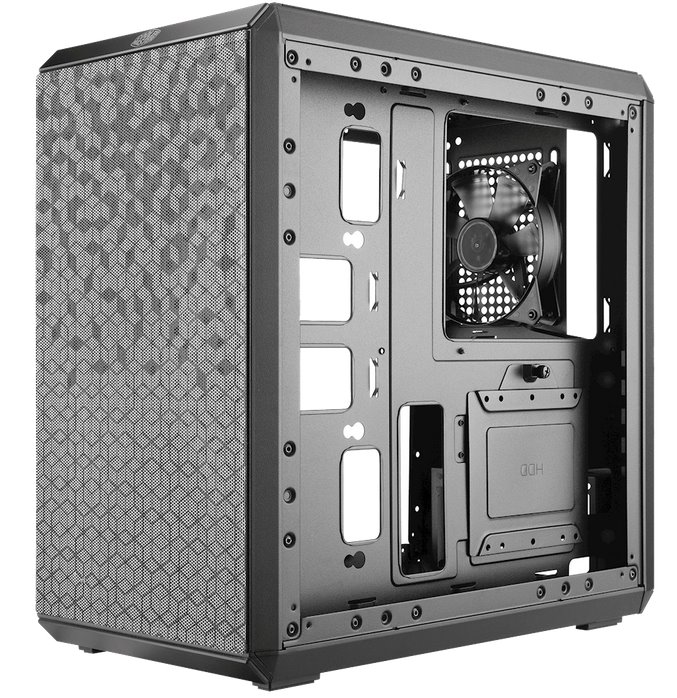

Clean Routing Space
Excellent Thermal Performance

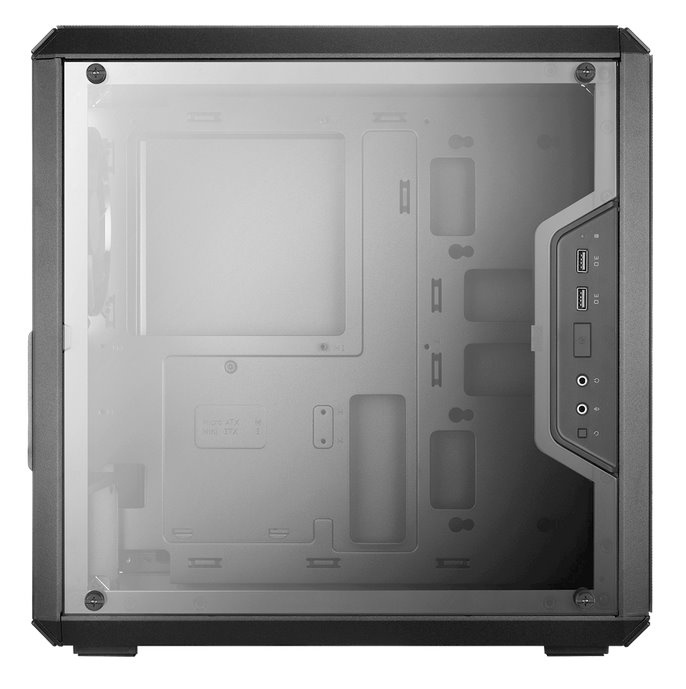

Edge-to-Edge Acrylic Transparent Side Panel
Vertical and Horizontal position
Model Number MCB-Q300L-KANN-S00
Series MasterBox Series
Size Mini Tower
Color(s) Black
Materials Steel, Plastic
Dimensions (L x W x H) 387 x 230 x 381mm
Motherboard Support Micro ATX, Mini ITX
Expansion Slots 4
5.25″ Drive Bays 0
3.5″ Drive Bays 1
2.5″ Drive Bays 2
I/O Panel 2x USB 3.0, Audio In & Out (Supports HD Audio)
Pre-installed Fans – Rear 1x 120mm
Fan Support – Front 2x 120/140mm
Fan Support – Top 2x 120mm

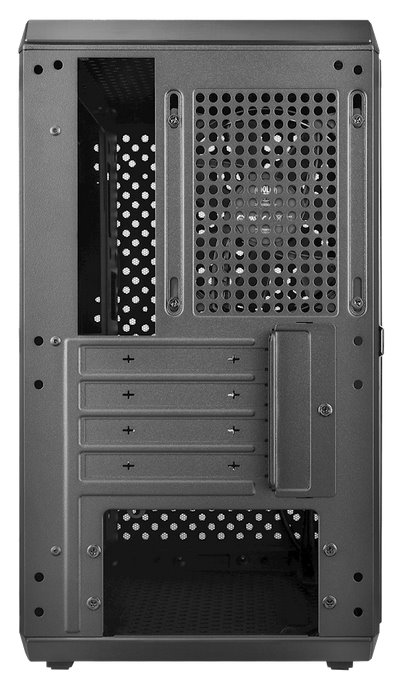

Fan Support – Rear 1x 120mm
Radiator Support – Front 120mm, 240mm
Radiator Support – Rear 120mm
Clearance – CPU Cooler 159mm
Clearance – GFX 360mm
Power Supply Support Bottom Mount, ATX PS2 / EPS 12V
Dust Filters Top, Front, Bottom
Warranty 2 years
Product Sheet
Manual
EAN UPC
4719512065488 884102038006
