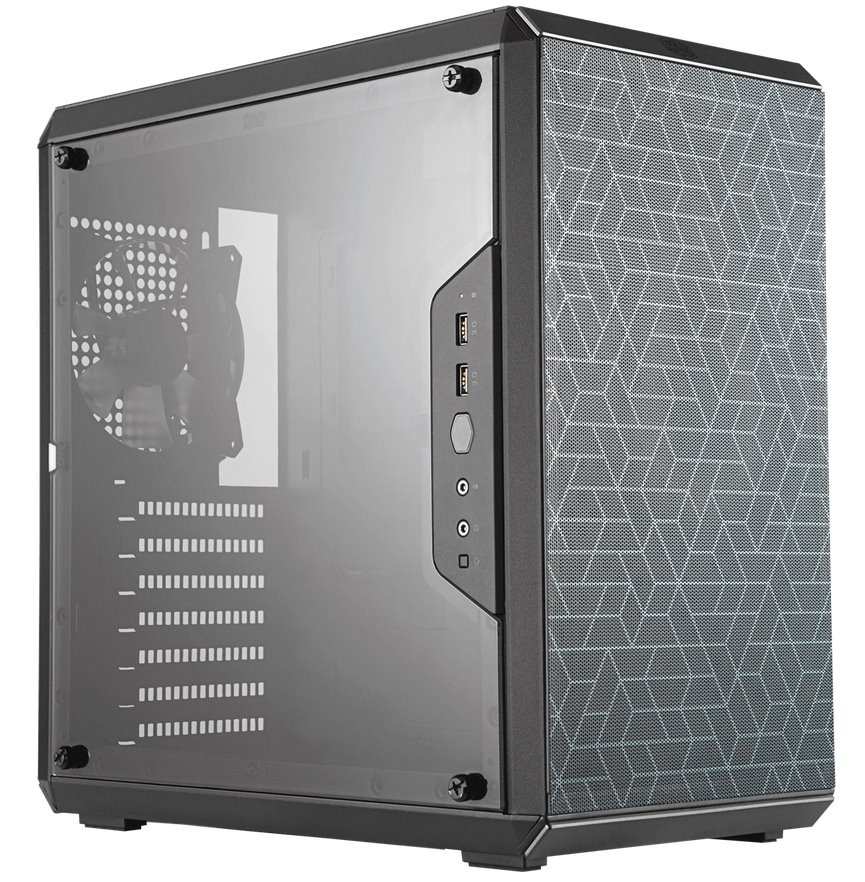

MasterBox Q500L
Choose Your Style
Highly Compact Standard ATX

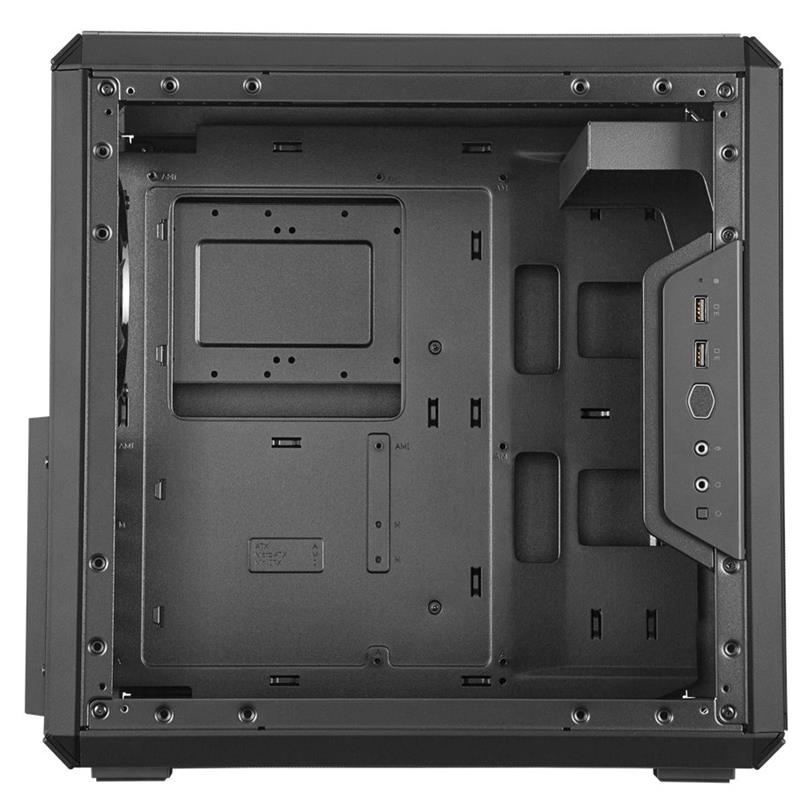

Orientation & A Movable I/O Panel
Versatile PSU Bracket
Fully Perforated Chassis
Magnetic Dust Filters

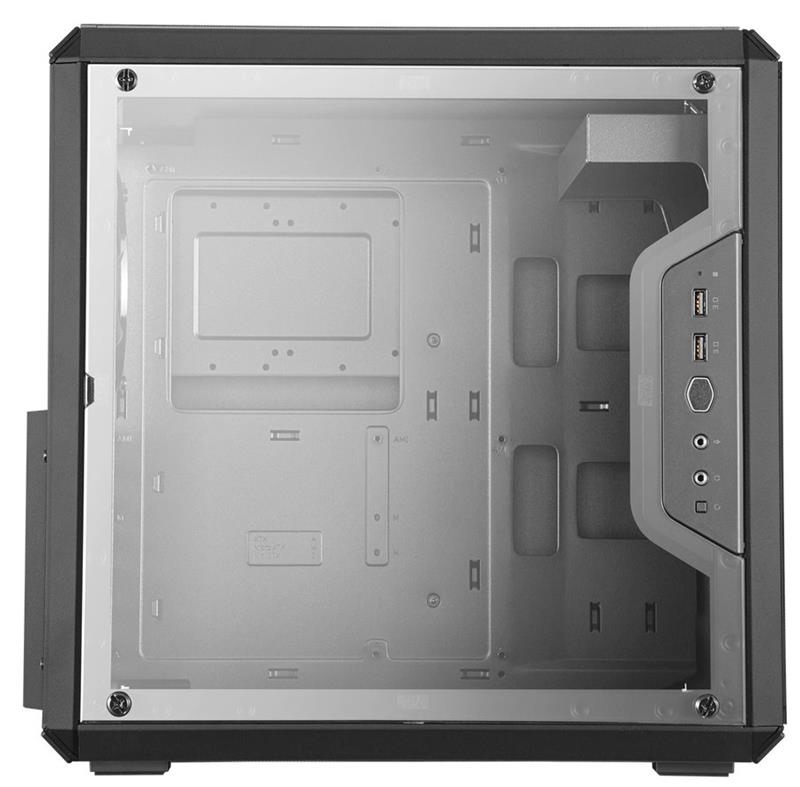

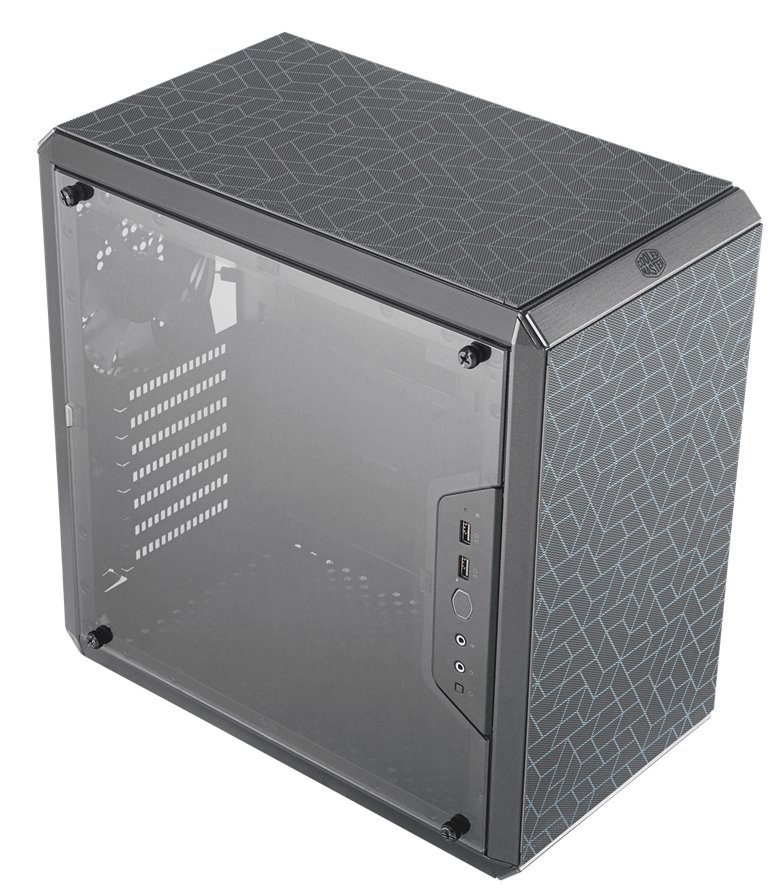

Edge-to-Edge Transparent Side Panel

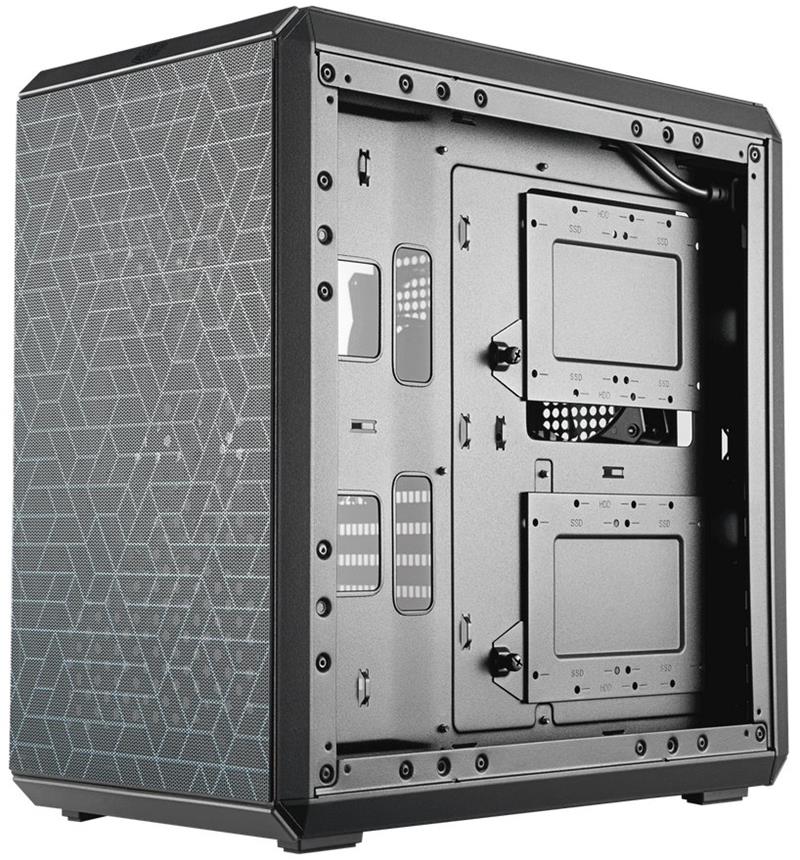

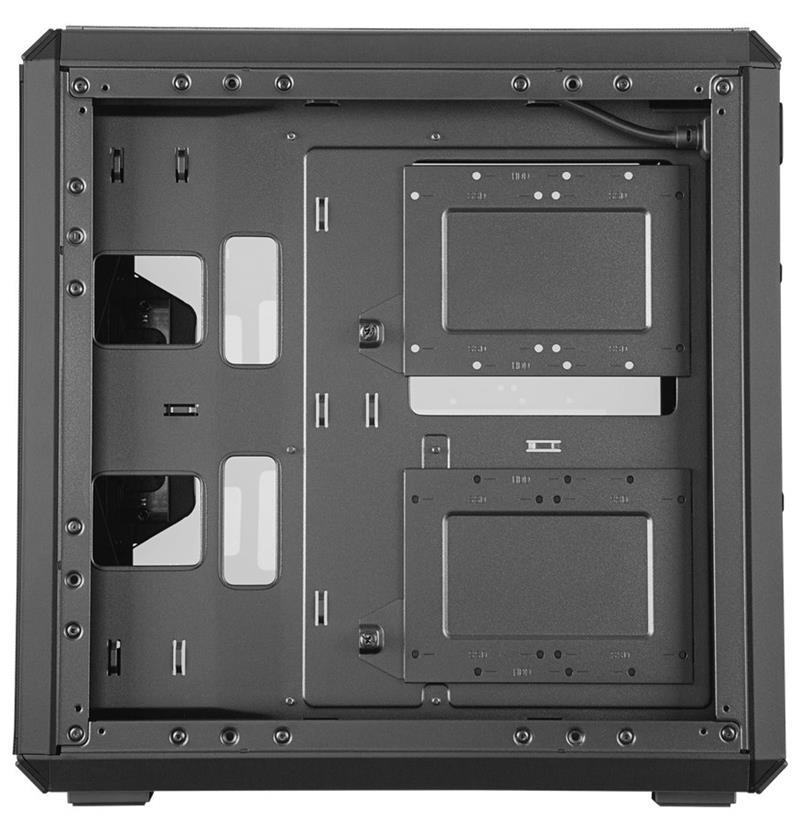

Clean Routing Space
Model Number MCB-Q500L-KANN-S00
Exterior Color Black
Materials – Body Steel, Plastic
Materials – Side Panel Acrylic
Dimensions (L x W x H) 386 (L) x 230 (W) x 381 (H) mm
Motherboard Support ATX, Micro ATX, Mini ITX
Expansion Slots 7
5.25″ Drive Bays 0
2.5″ / 3.5″ Drive Bays (Combo) 2 (each bay supports: 1 HDD or 2 SSDs)
2.5″ Drive Bays 0
I/O Panel 2x USB 3.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
Pre-installed Fans – Rear 1x 120mm
Fan Support – Top 2x 120/140mm
Fan Support – Rear 1x 120mm
Fan Support – Bottom 2x 120mm
Radiator Support – Top 120 / 240mm (35mm max motherboard component height)
Radiator Support – Rear 120mm
Clearance – CPU Cooler 160mm/6.29″
Clearance – PSU 180mm/7.08″
Clearance – GFX 360mm/14.17″ (270mm clearance with PSUs longer than 160mm)
Cable Routing 27-30mm
Dust Filters Bottom
Power Supply Support Top Front Mount, ATX PS2
Series MasterBox Series
Size Mid Tower
