Eight Recreated

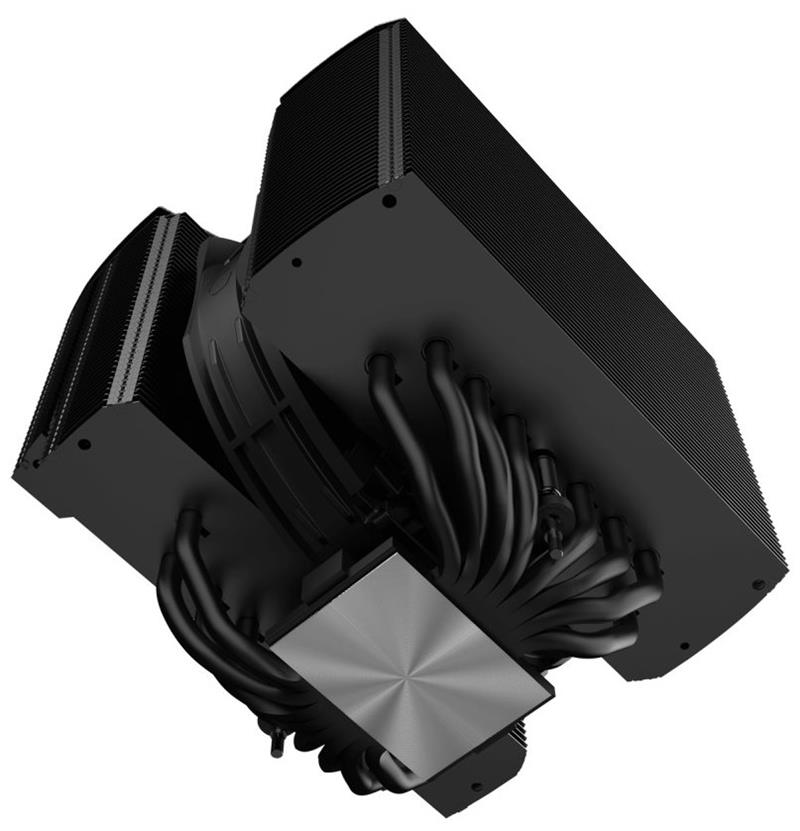

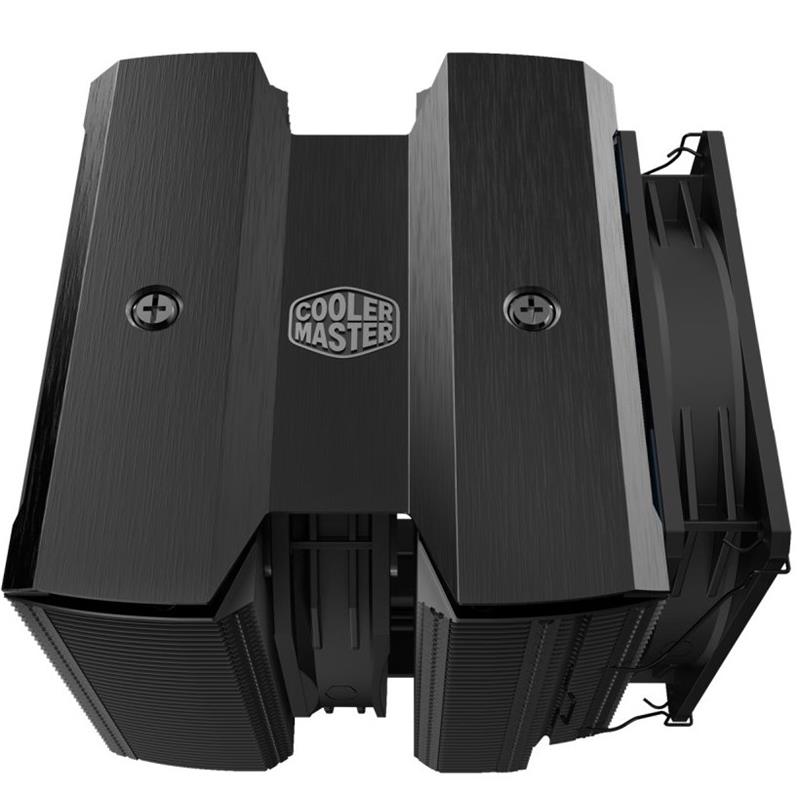

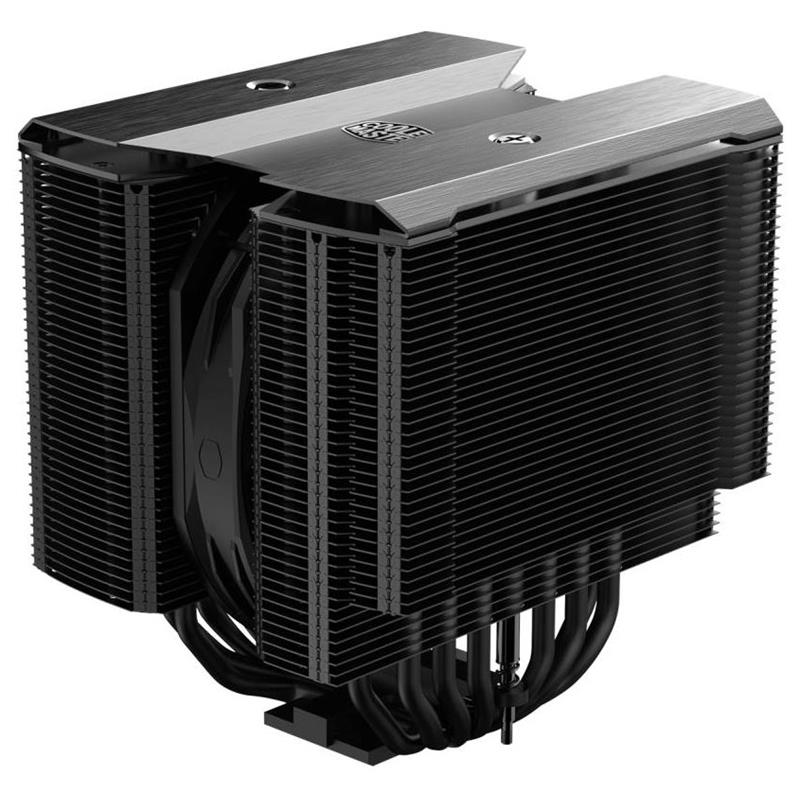

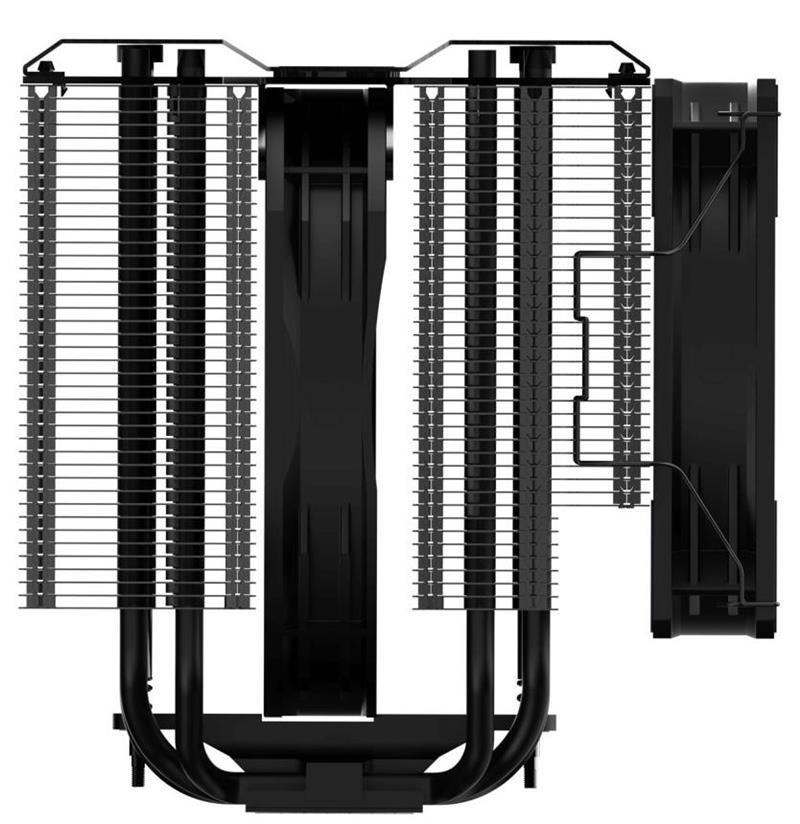

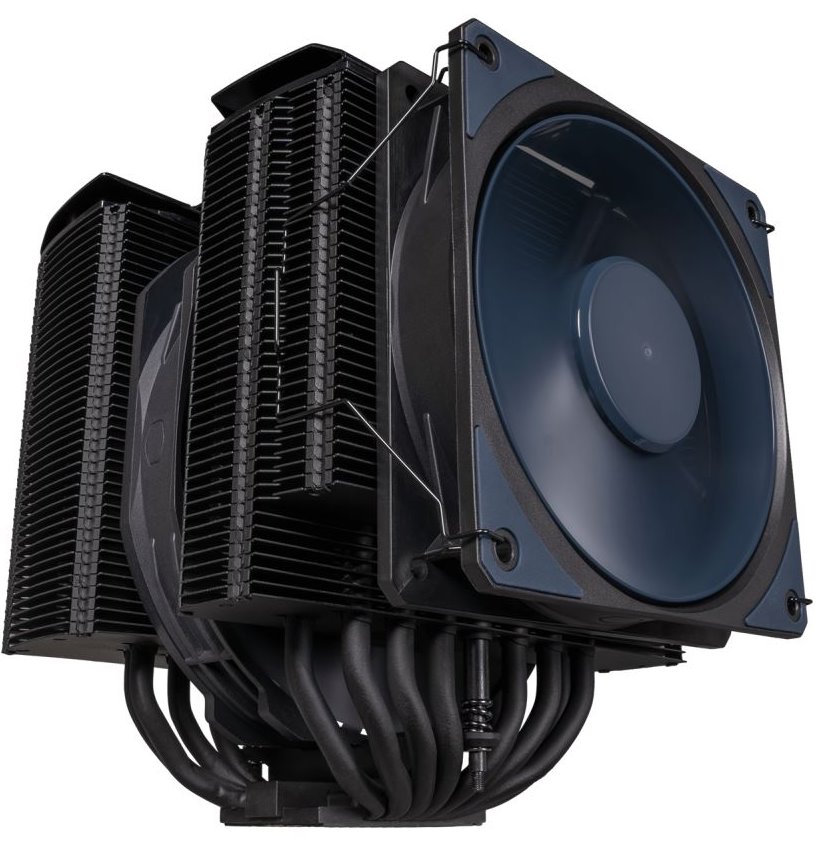

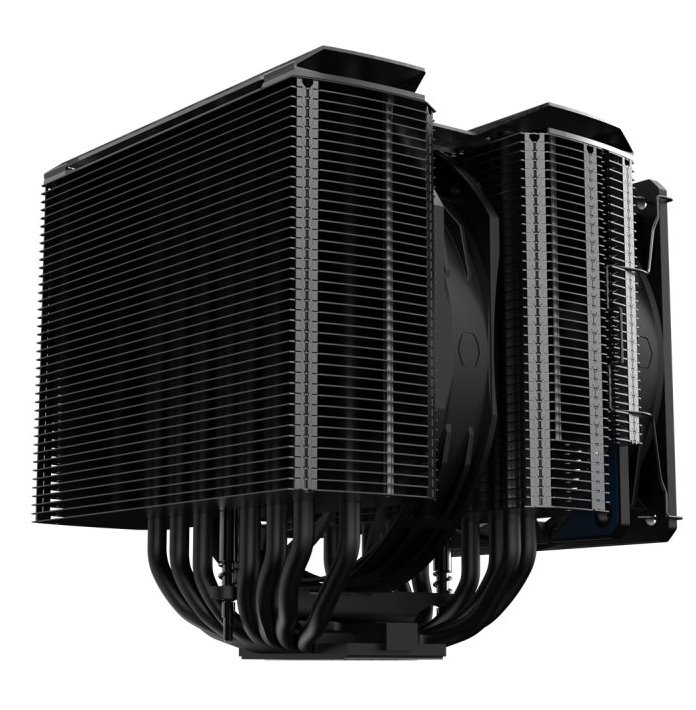

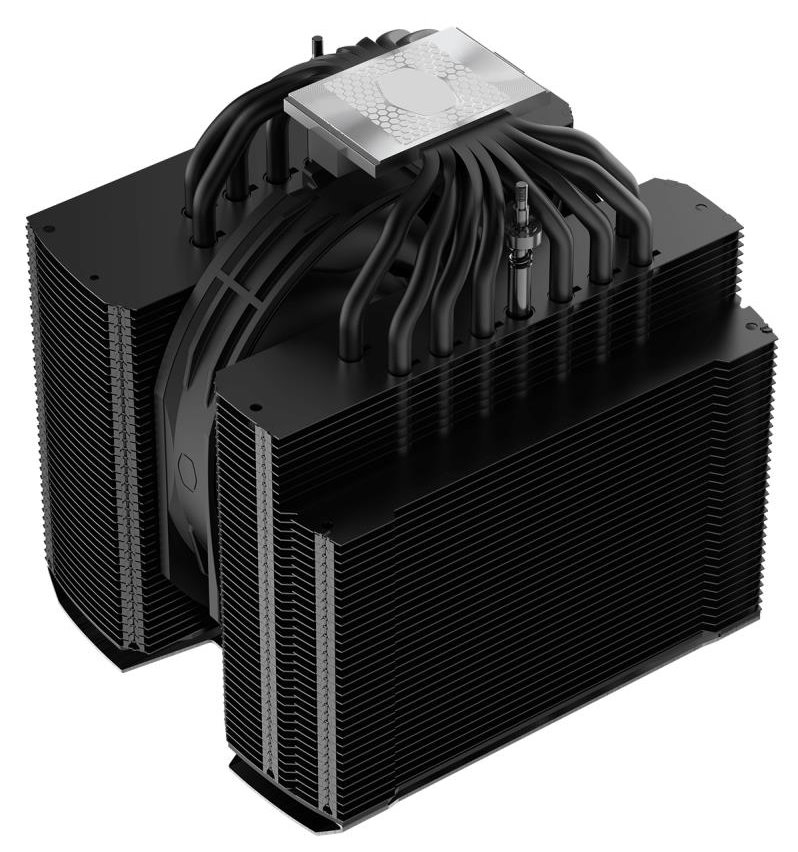

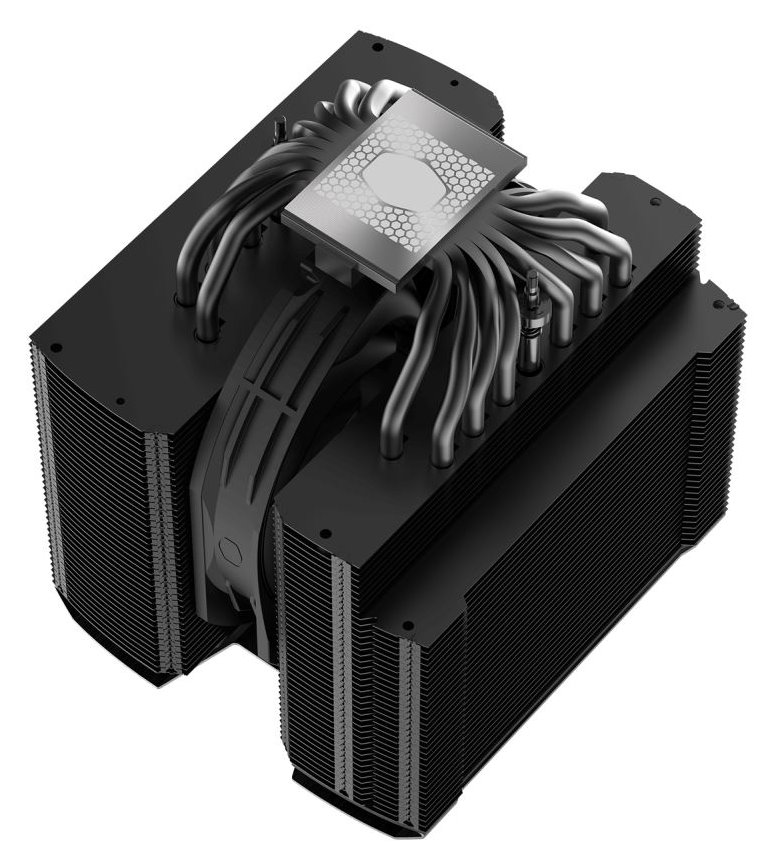

MasterAir MA824 Stealth
Cooler Master is unveiling its flagship air cooler and newest addition to the Stealth Series – the MA824 Stealth.
Product NumberMAM-D8PN-318PK-R1
Exterior ColorBlack
CPU SocketIntel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
CPU SocketAMD® AM5 / AM4 socket
Dimensions (L x W x H)162.2 x 150.6 x 165.6 mm / 6.3 x 5.9 x 6.5 inch
Heat Sink Material8 Heat Pipes / Aluminum Fins
Fan Dimensions (L x W x H)135mm Fan: 135 x 135 x 26 mm, 120mm Fan: 120 x 120 x 25 mm
Fan ProfilesNon-LED
Fan Quantity1 PC
Fan Speed135mm Fan: 0-1550 RPM ± 15%, 120mm Fan: 0-1950 RPM ± 15%
Fan Airflow135mm Fan: 63.6 CFM (Max), 120mm Fan: 63.1 CFM (Max)
Fan Pressure135mm Fan: 1.92 mmH2O, 120mm Fan: 2.69 mmH2O
Fan MTTF>200,000 Hours
Fan Noise Level135mm Fan: 24.6 dBA (Max), 120mm Fan: 22.6 dBA (Max)
BearingLoop Dynamic Bearing
Fan Power Connector4-Pin (PWM)
Rated Voltage12 VDC
Fan Rated Current135mm Fan: 0.1 A, 120mm Fan: 0.12 A
Fan Safety Current0.25A
Power Consumption135mm Fan: 1.2-2.4W, 120mm Fan: 1.44-3.0W
Warranty5 years
Cooler TypeAir Cooler
SeriesMasterAir
Heatpipes8
