NEX Level Power

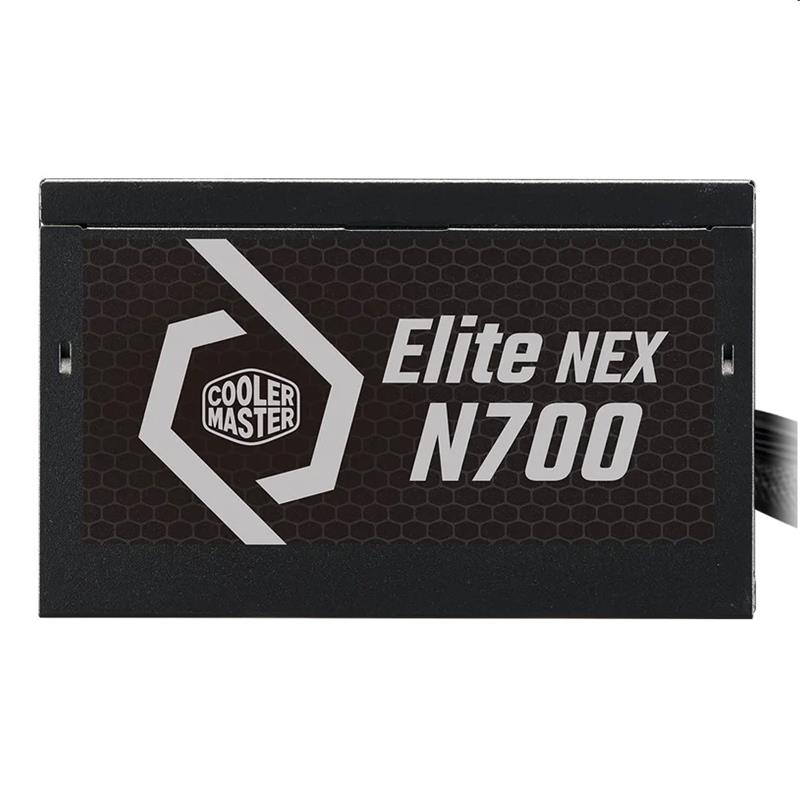

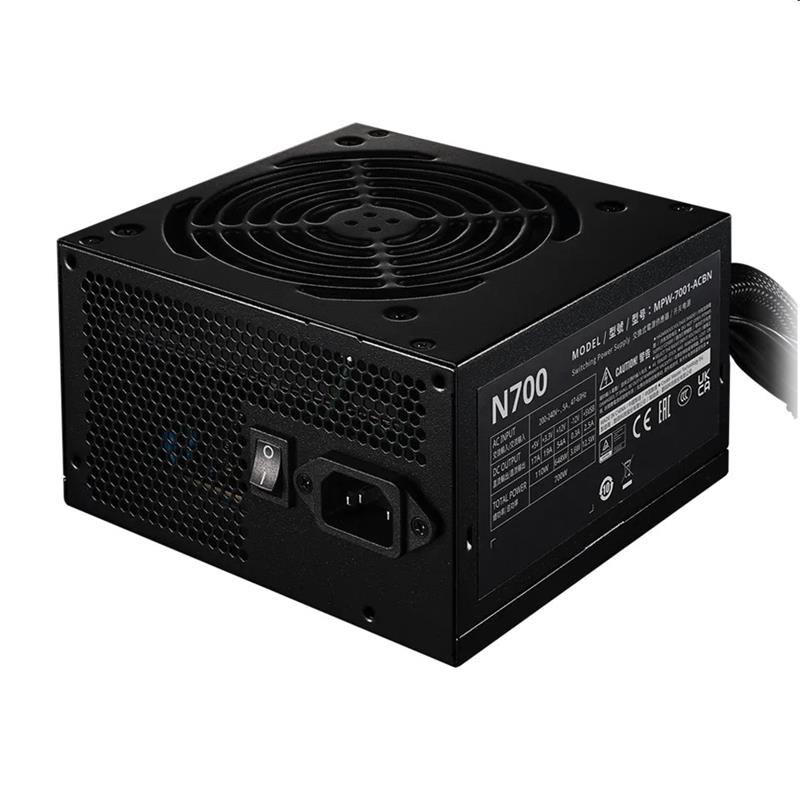

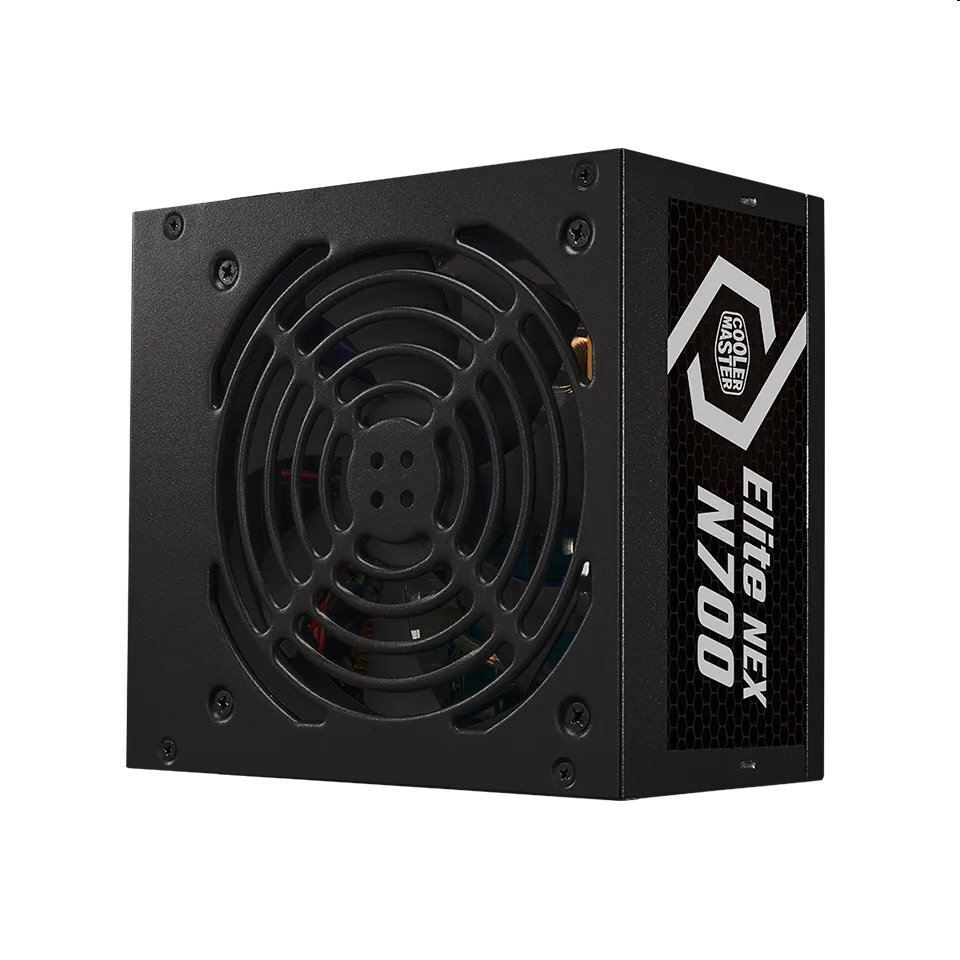

ELITE NEX N700 230V

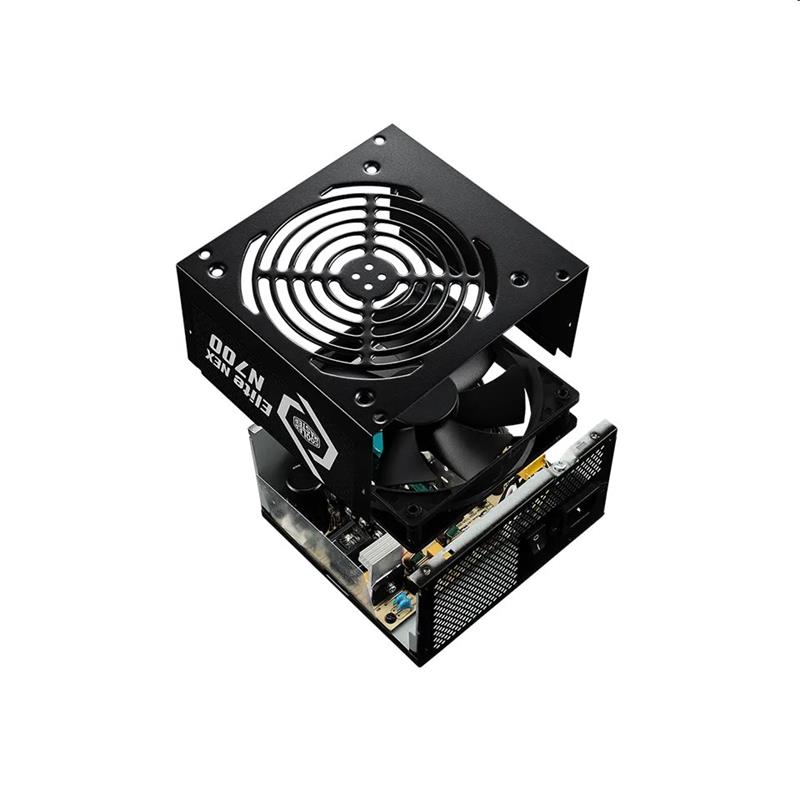

• Active PFC and a dual forward topology design
• Excellent temperature resistance
• High peak power tolerance
• Durability, reliability, and safety
• 75% efficiency
• 3-year warranty

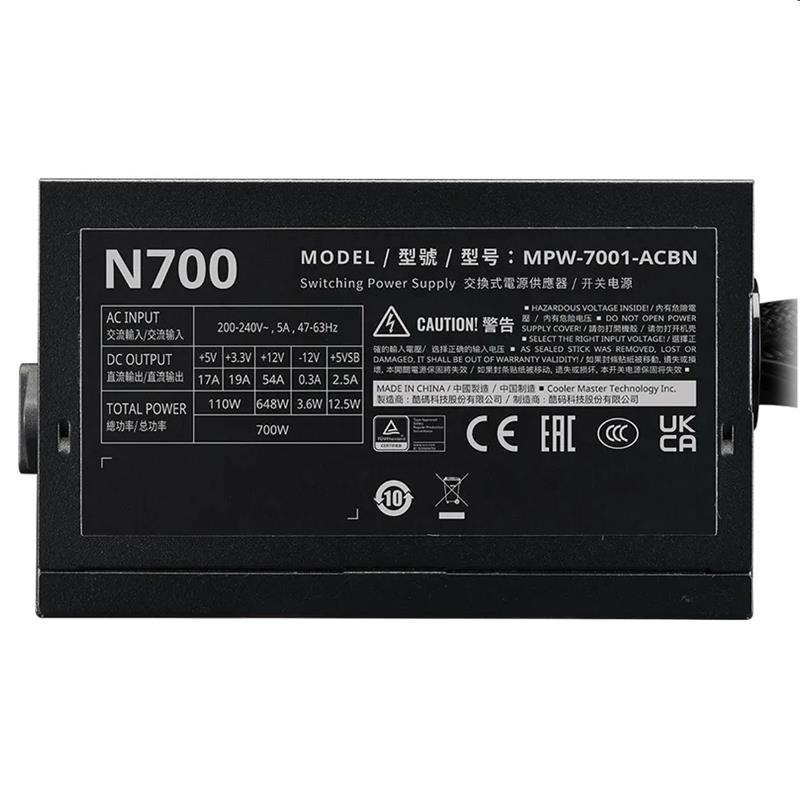

ModelMPW-7001-ACBN-B
ATX VersionATX 12V Ver. 2.41
PFCActive PFC
Input Voltage200-240V
Input Current5A
Input Frequency50-60Hz
Dimensions (L x W x H)140 x 150 x 86 mm
Fan Size120mm
Fan BearingSleeve Fan
Efficiency? 75% @ Typical Load
ErP 2014 Lot 3Yes
Operating Temperature0-40°C
Power Good Signal100 – 500 ms
Hold Up Time?10ms at 100% load
MTBF>100,000 Hours
ProtectionsOVP / OPP / SCP / UVP / OTP / Inrush Protection
RegulatoryTUV, CE, CCC, EAC, UKCA
ATX 24 Pin Connectors1
EPS 8 Pin / 4+4 Pin Connectors2
SATA Connectors5
Peripheral 4 Pin Connectors3
PCI-e 6+2 Pin Connectors2
SeriesElite Series
Category500 to 750W
ModularNon Modular
80 Plus EfficiencyNone 80 PLUS
Form FactorATX
Watts700W
