Full Modular 80 Plus Gold ATX Power Supply Unit
MWE Gold 850 – V2 Full Modular
80 Plus Gold Efficiency
2 EPS Connectors

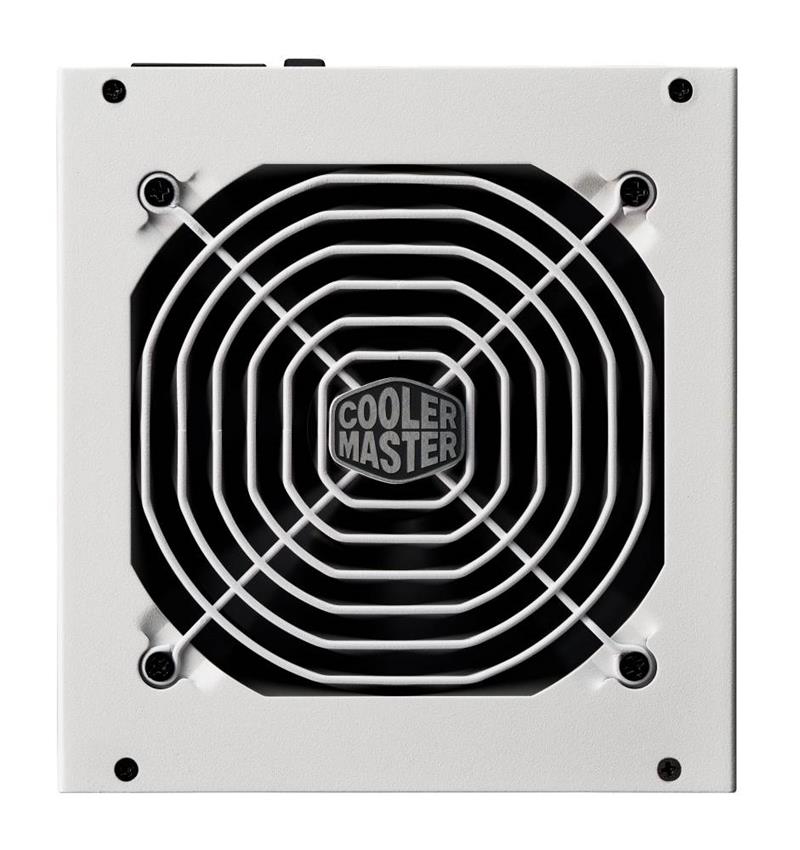

120mm HDB Fan
High Temperature Resilience

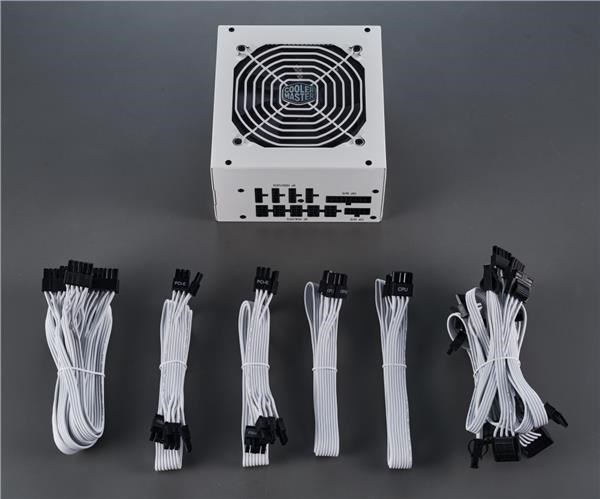

Full Modular Cabling
5 Year Warranty
ModelMPE-8501-AFAAG
ATX VersionATX 12V Ver. 2.41
PFCActive PFC
Input Voltage100-240V
Input Current12-6A
Input Frequency50-60Hz
Dimensions (L x W x H)160 x 150 x 86 mm
Fan Size120mm
Fan BearingHDB
Fan Speed1500 RPM
Noise Level @ 20%0 dBA
Noise Level @ 50%17.8 dBA
Noise Level @ 100%25.9 dBA
Efficiency90% @ Typical Load
80 PLUS Rating80 PLUS Gold
ErP 2014 Lot 3Yes
Operating Temperature0-50°C
Power Good Signal100 – 150 ms
Hold Up Time>16ms at 100% Load
MTBF>100,000 Hours
ProtectionsUVP / OVP / OPP / OTP / SCP / OCP
RegulatoryTUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, UKCA

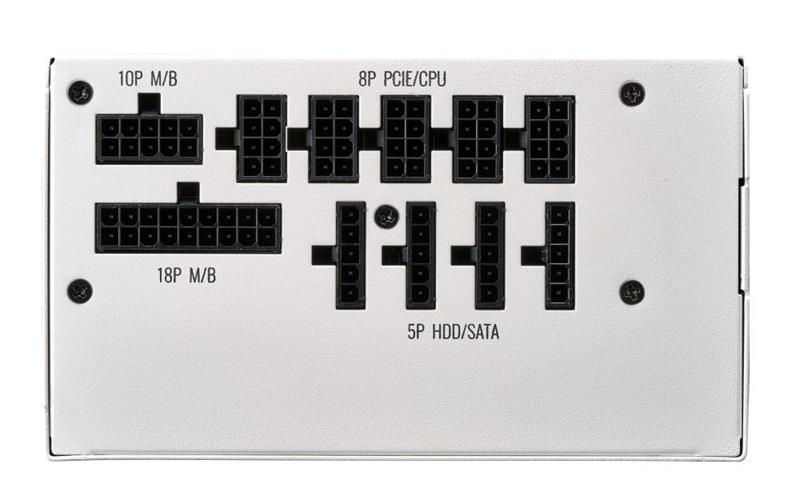

ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors1
EPS 8 Pin Connector1
SATA Connectors12
Peripheral 4 Pin Connectors4
PCI-e 6+2 Pin Connectors4
SeriesMWE Gold Series
CategoryAbove 750W
ModularFully Modular
80 Plus EfficiencyGold
Form FactorATX
Watts850W
