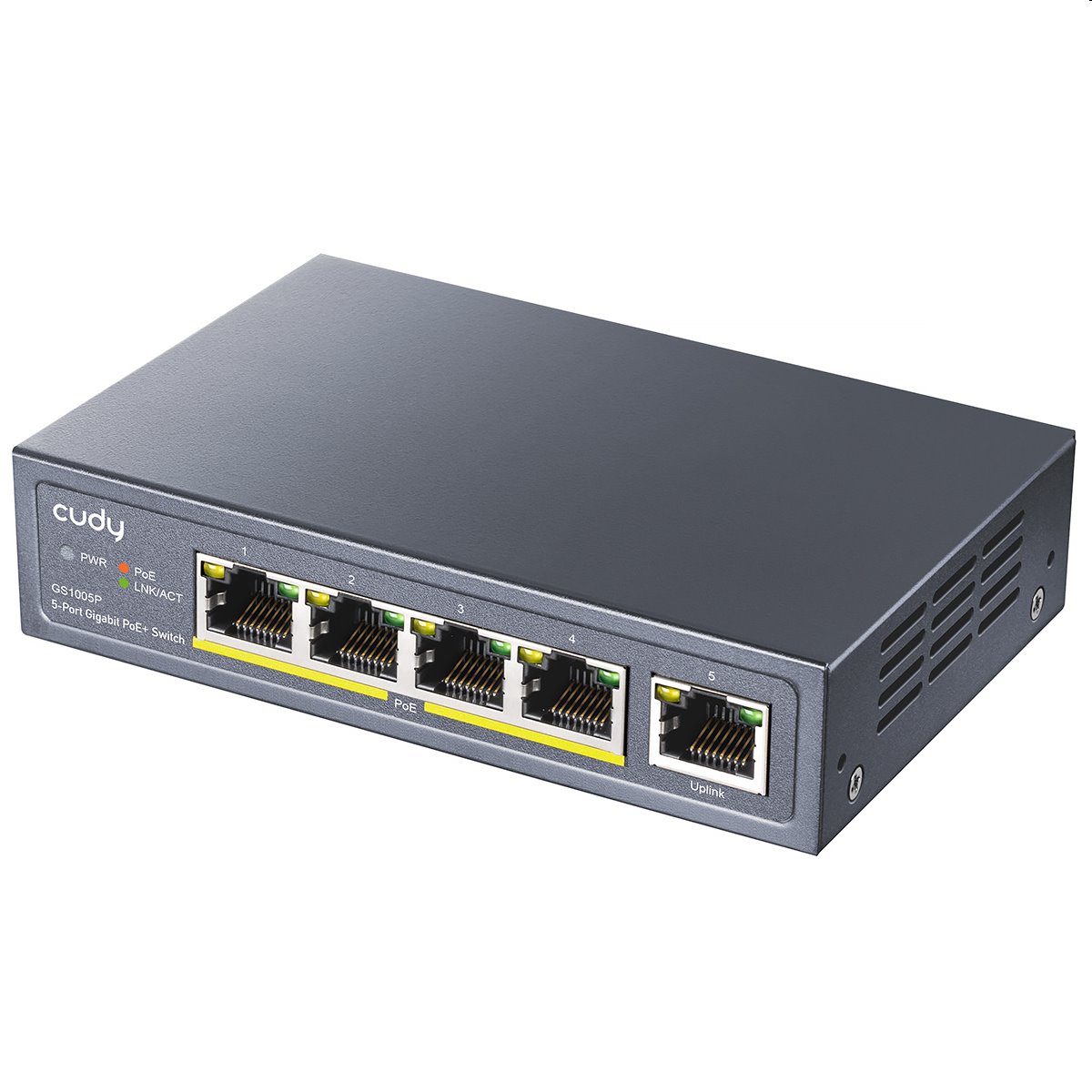

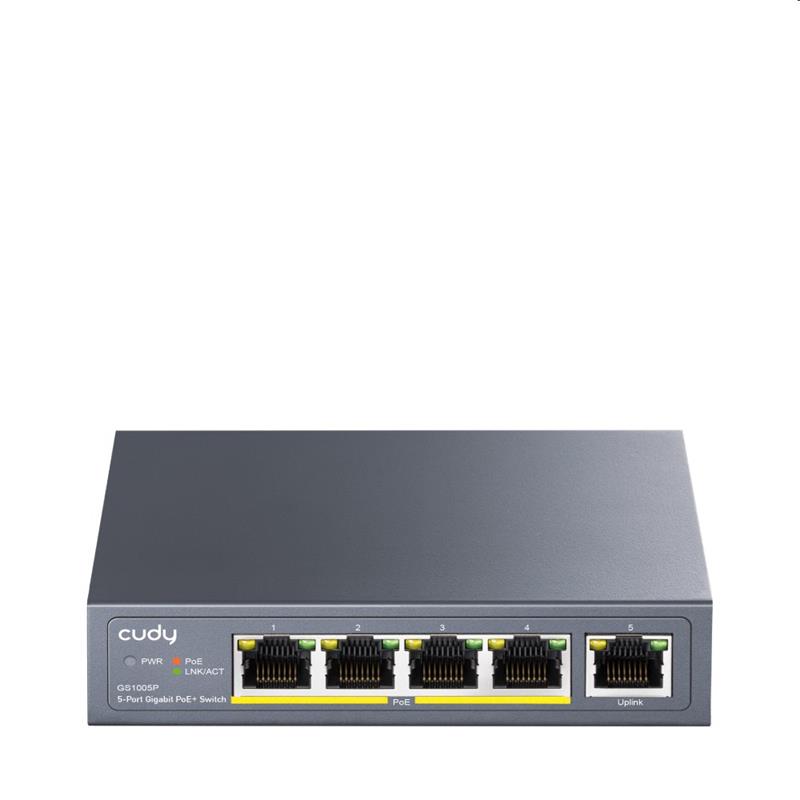

5-Port Gigabit POE+ Switch, Model: GS1005P
– Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
– Provides 5 10/100/1000Base-TX ports
– 60W PoE power output total
– High back-plane bandwidth 10Gbps
– IEEE802.3x Flow control
– EMI standards complies with FCC, CE class B
Specification
Power
Power supply External Power Adaptor
Voltage Range DC48~57V
Switch Consumption <5W
Ethernet
Speed
1~5 Port : 10/100/1000Mbps
Uplink: 10/100/1000Mbps
Transmission Distanc
100Meter (328ft)
Network Switch
Ethernet Standard IEEE 802.3/802.3u/802.3ab/802.3af/at
Switching capacity 10G
Transfer Rate 14,880pps for 10Mbps
148,800pps for 100Mbps
1,488,000pps for 1000Mbps
MAC Address 2K MAC address table
PoE Capacity 60W
Environment
Working Temperature 0~40?
Storage Temperature -40~70?
Humidity Non condesing 0~90%
Mechanical
Dimension 119 x 85 x 28mm
Color Gray
