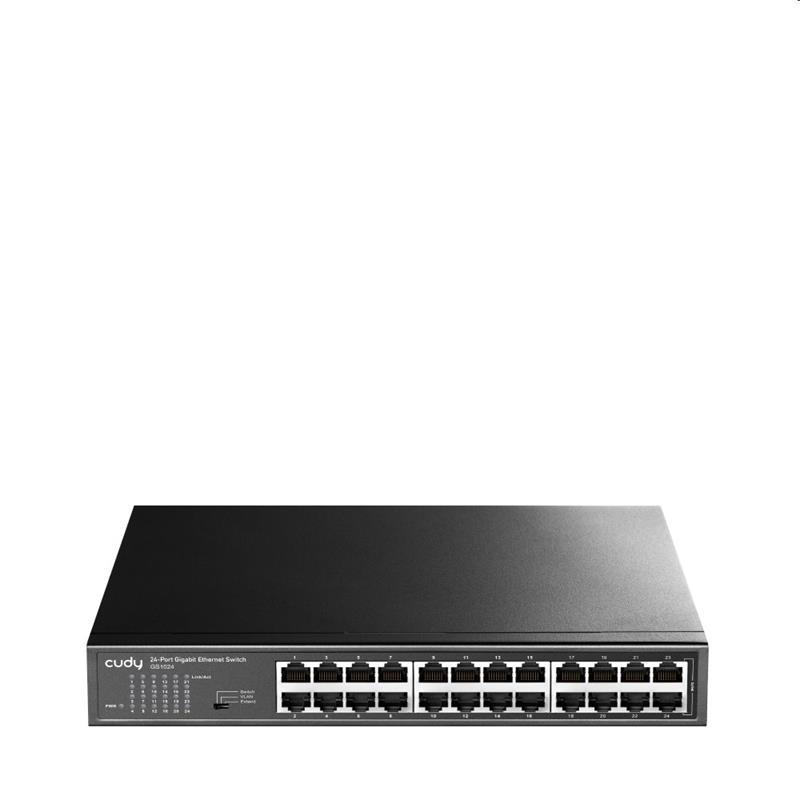

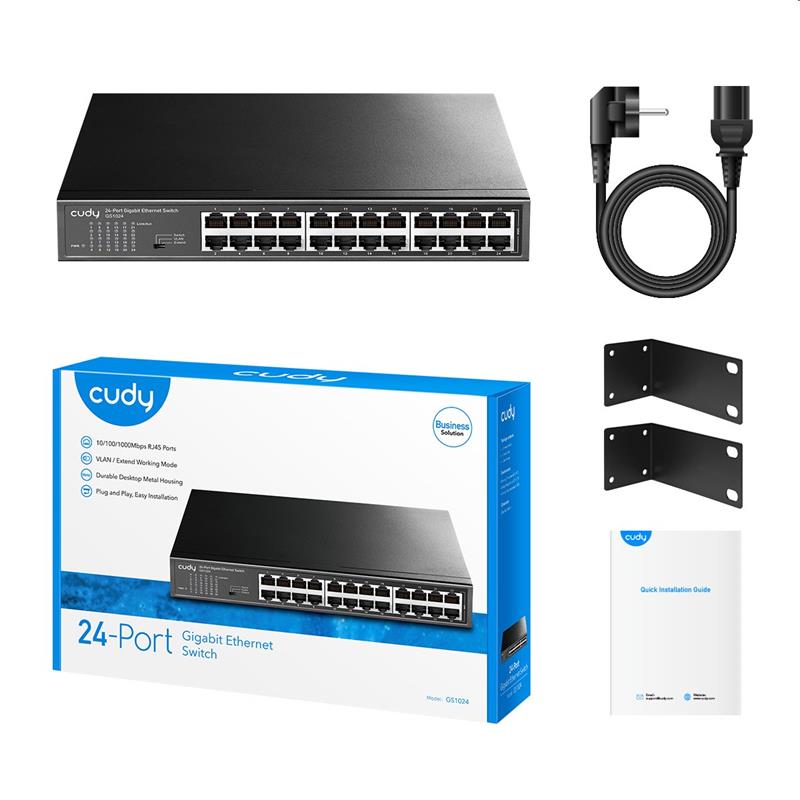

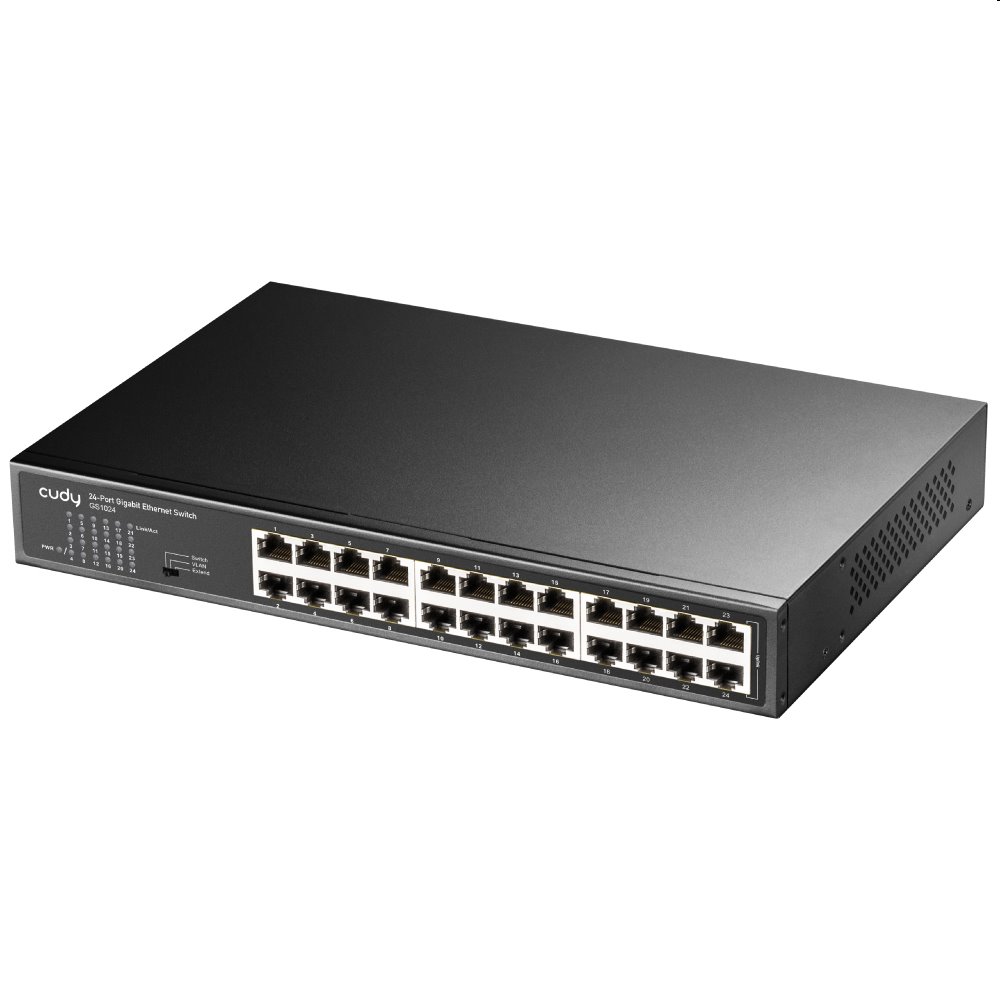

24-Port Gigabit Ethernet Switch, Model: GS1024
– Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
– 24 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
– Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
– Store-and-Forward switching method
– Supports 16K MAC address auto-learning and auto-agin
Specifications

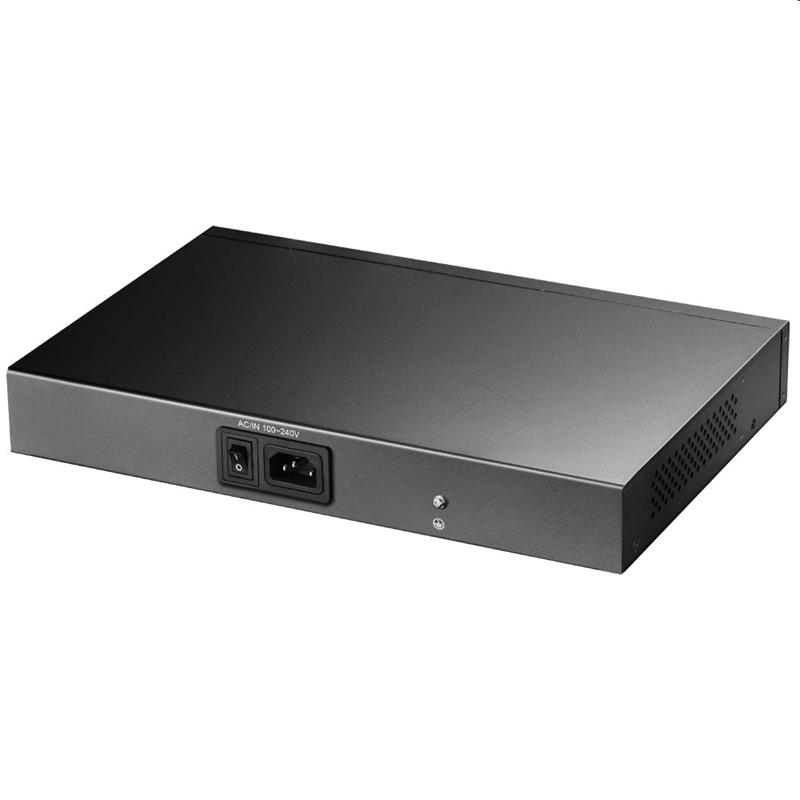

Power Supply Built-in power supply
Voltage Range Ac100~ 240V
Consumption <15W
Speed 1-24 Port: 10/100/1000Mbps
Transmission Distance 100Meter (328ft)
Ethernet Standard IEEE 802.3/802.3u / 802.3ab
Switching capacity 48G
MACAddress 8K MAC address table
Dimension L* W * H 270 x 180 x 44mm
VLAN (1-22Ports) Port Isolation Downlink designated ports are isolated from each other, only transmit data with the uplink port.
Default Standard Switch All ports communicate freely
Extend (1-22Ports) Link Extension The specified port speed drops to 10Mbps, max transmission distance is 250 meters.
Transfer Rate
14,880 pps for 10Mbps
148,800 pps for 100Mbps
148,8000 pps for 100Mbps
Environment
Operating Temperature: 0? ~ 40?
Storage Temperature: -40? ~70?
Operating Humidity: 10%~85% non-condensing
Storage humidity: 5%~85% non-condensing
