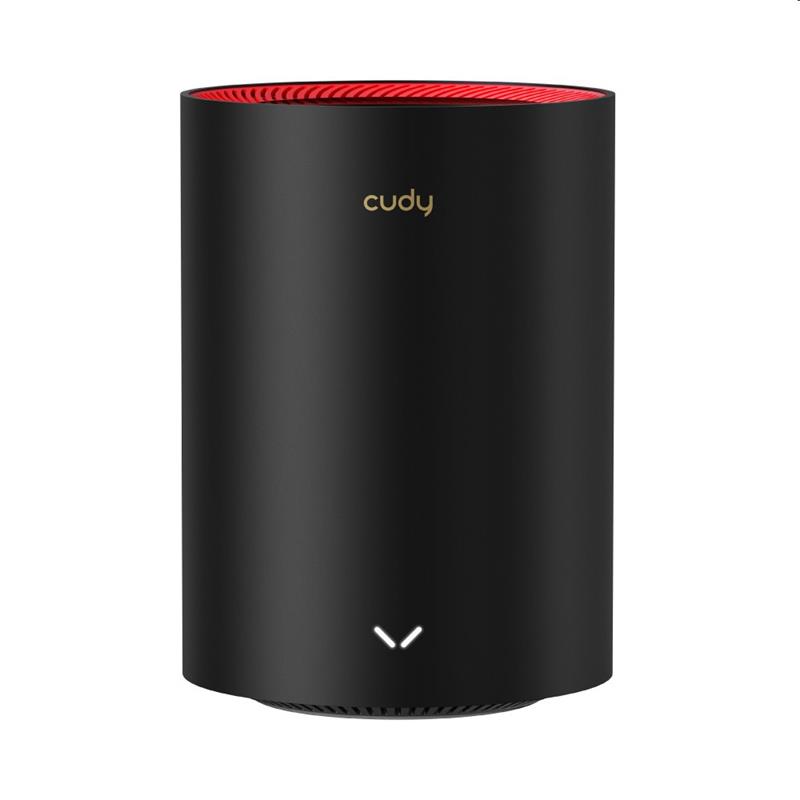

AX3000 2.5G Dual Band Wi-Fi 6 Mesh System
1.3GHz Dual Core Cortex-A53 Processor
Extremely Fast AX3000 Wi-Fi 6 Technology
1 x 2.5Gbps Ethernet Ports Per Unit
1 x 10/100/1000Mbps Ethernet Port Per Unit
20/40/80/160MHz Bandwidth Supported
DL-OFDMA/MU-MIMO
UL-OFDMA/MU-MIMO
TX Beamformer and RX Beamformee
1024QAM supported
IPv4/IPv6, TR069/TR098/TR181/TR111

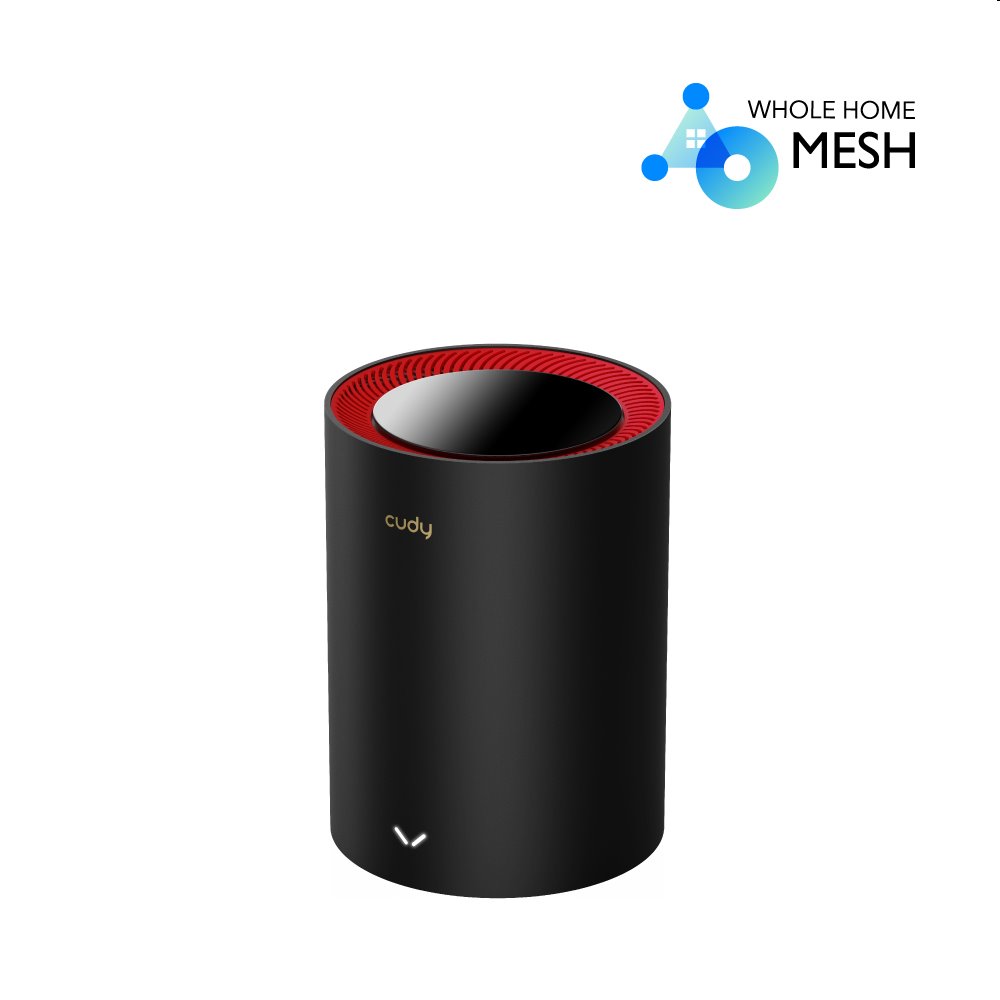

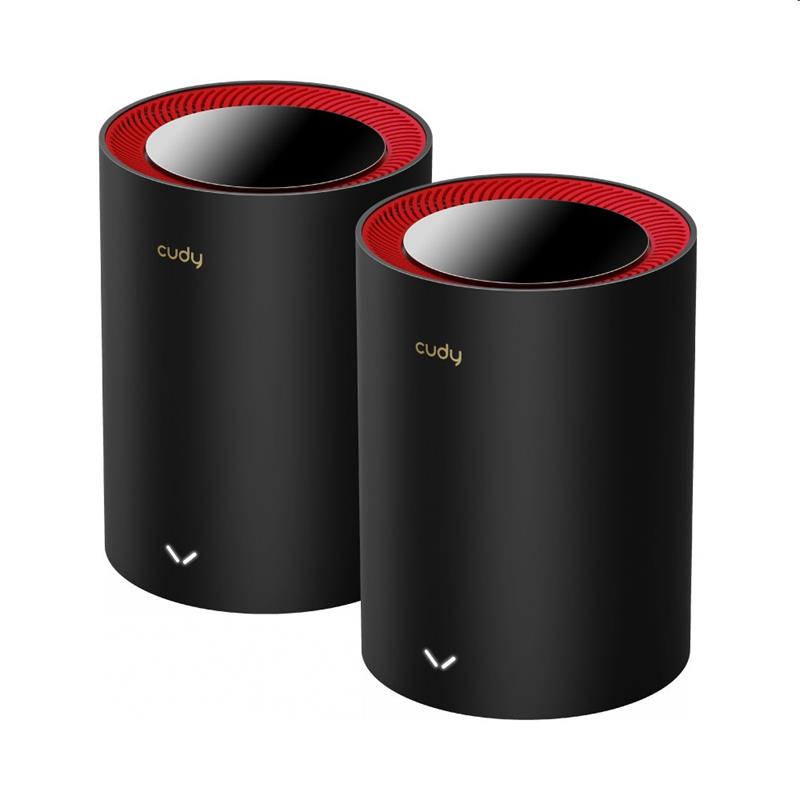

Cudy Whole Mesh System
Specifications
Hardware Features
Processor 1.3GHz Dual Core Cortex-A53 Processor
Flash 1Gbit (128MB)
DDR 2Gbit (256MB)
Antenna 5 × Internal Omni-Directional Antennas

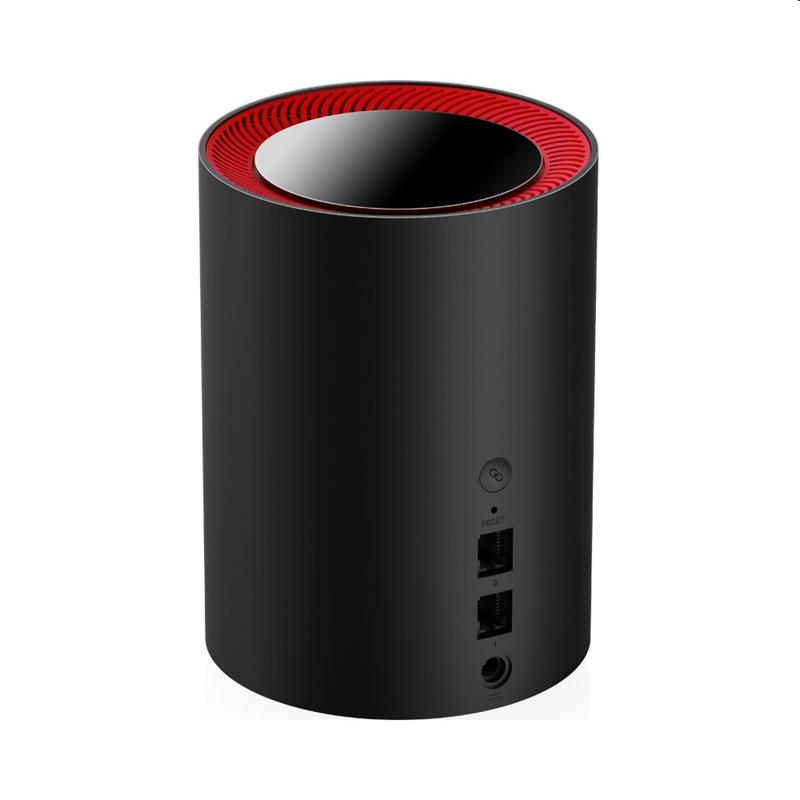

Interface
1 × 2.5Gbps WAN Port
1 × 10/100/1000 Mbps LAN Port
Button
Pair Button, Reset Button
External Power Supply
12V/1A
Wireless Features
Wireless Standards
IEEE 802.11ax/ac/n/a 5GHz
IEEE 802.11ax/n/b/g 2.4GHz
Frequency 5GHz, 2.4GHz
Wireless Bandwidth 20/40/80/160MHz
Signal Rate 2402Mbps (5GHz), 574Mbps (2.4GHz)
Compatible with 802.11a/b/g/n/ac/ax Wi-Fi standards
Transmit Power CE: <20dBm (2.4GHz), <23dBm (5GHz)
Wireless Modes Enable/Disable Wireless Radio, WMM
Wireless Security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3
Wireless Features OFDMA, MU-MIMO, Beamforming
Software Features
WAN Type Dynamic IP/Static IP/PPPoE
DHCP Server, DHCP Client List, Address Reservation
Dynamic DNS Compatible with 15 more DDNS providers
Guest Network
2.4GHz guest network × 1
5GHz guest network × 1
NAT Port Forwarding, Port Triggering, UPnP, DMZ
VPN Client PPTP/L2TP/OpenVPN/WireGuard/IPsec
Others
Package Contents
1-Pack AX3000 Wi-Fi Mesh Router
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
