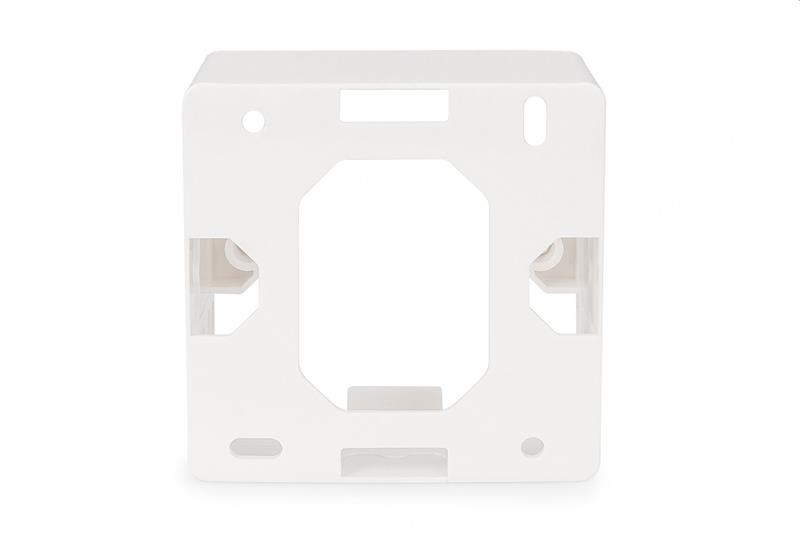

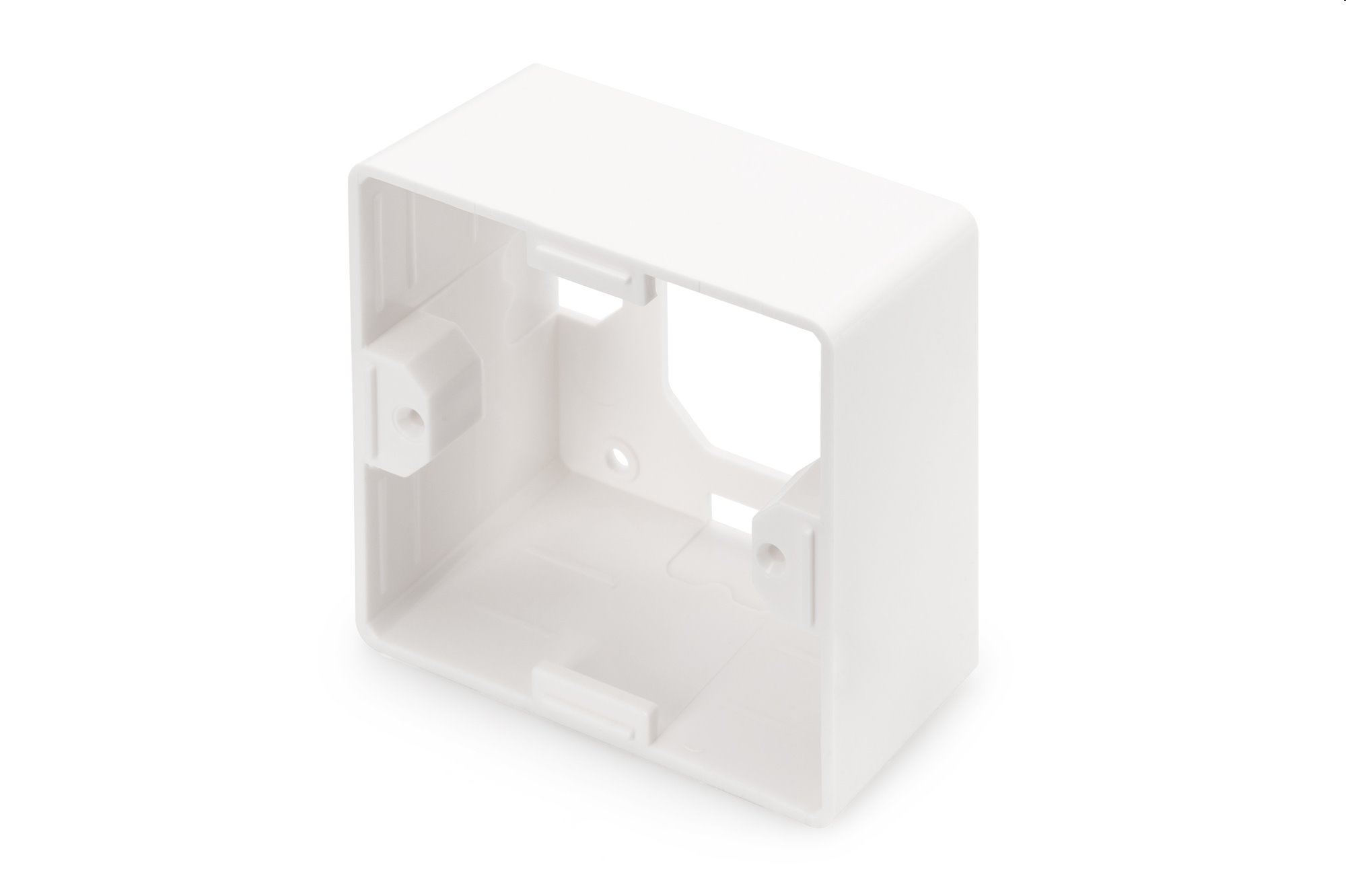

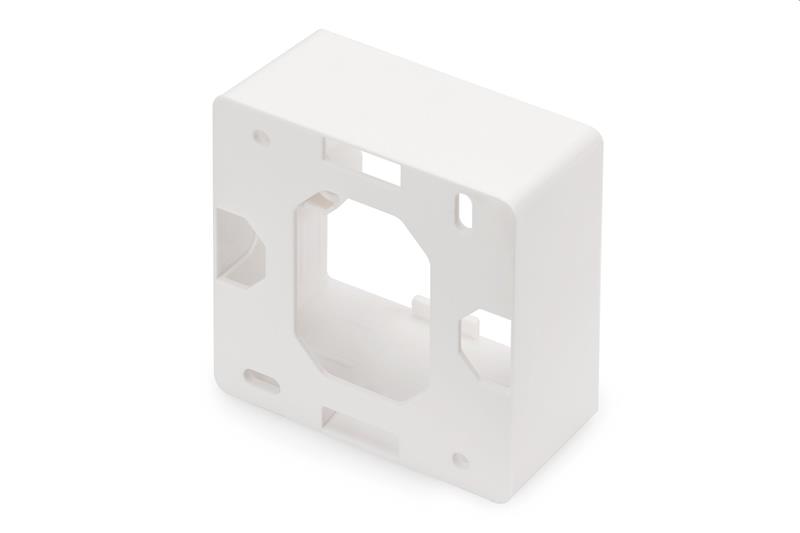

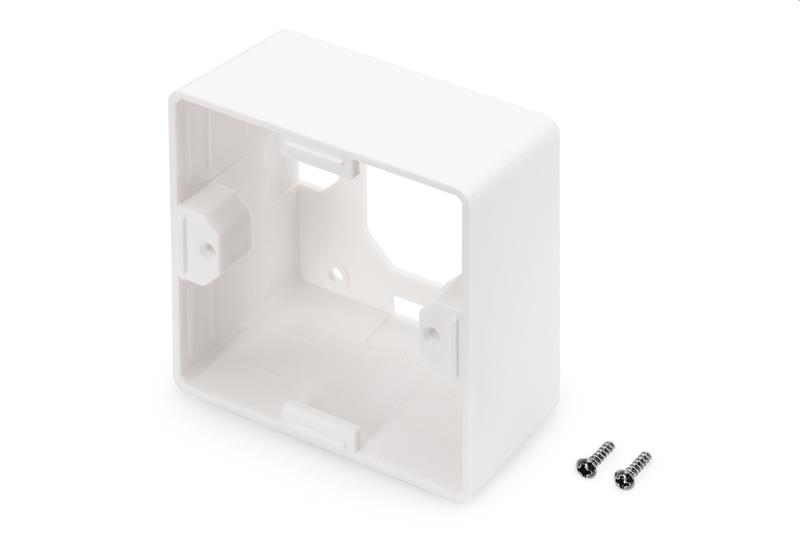

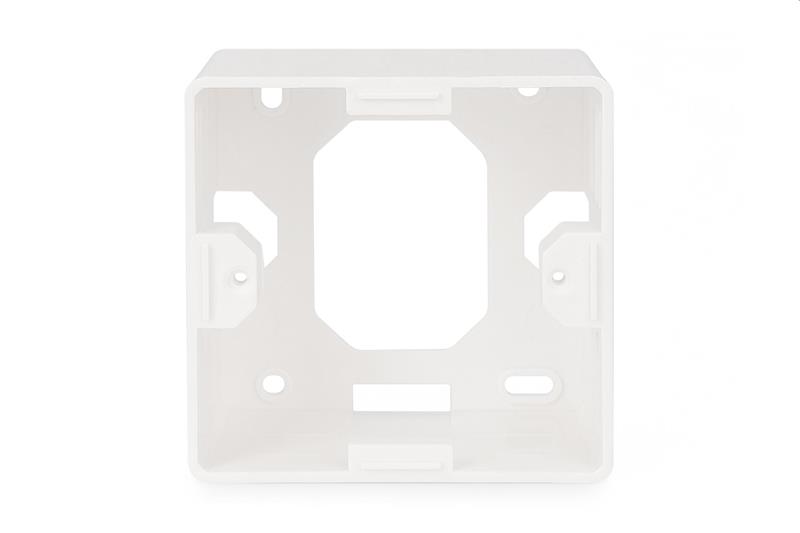

Surface mount box for faceplates 80x80x42 mm, color pure white, German layout
DESCRIPTION
The DIGITUS® Surface mount boxes for keystone outlets are the perfect solution to extend your data outlets. Available layouts: German, French, British.
TECHNICAL DETAILS
Layout keystone entry: 45° outlet
Area of application: Cavity socket, trunking, surface mount box
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for installation in trunking, flush and surface mount
Central ground connection
Integrated dust cover
Plastic label field
Design compatible to current switch ranges of switch manufacturers
Technical properties:
Wall outlet material: Die-cast metal
Central plate material: ABS UL 94V-0
Frame material: ABS UL 94V-0
Surface mount box material: ABS UL 94V-0
Physical properties:
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Colour: White RAL9003
