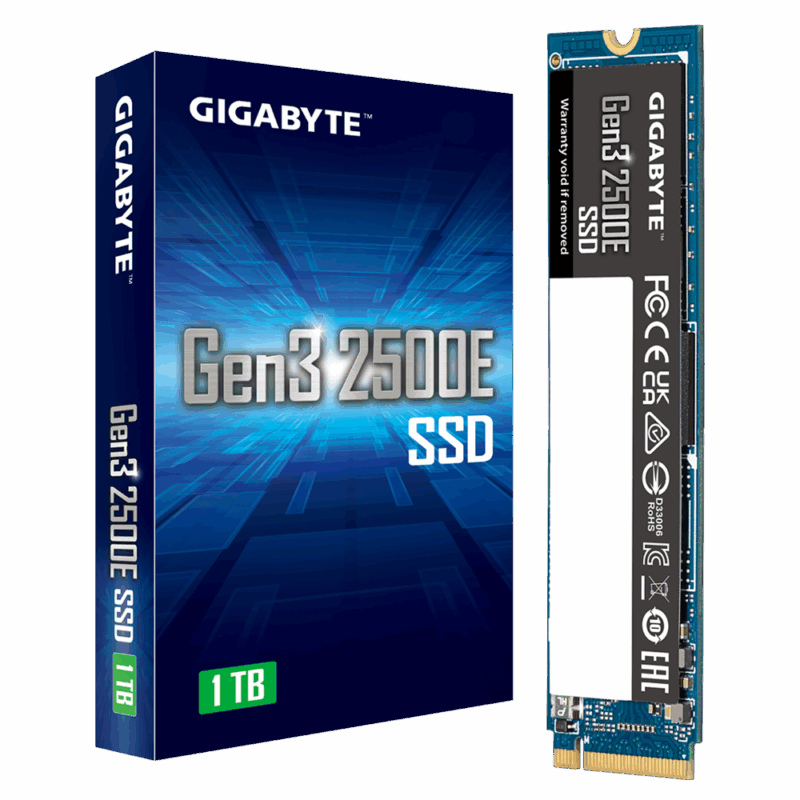

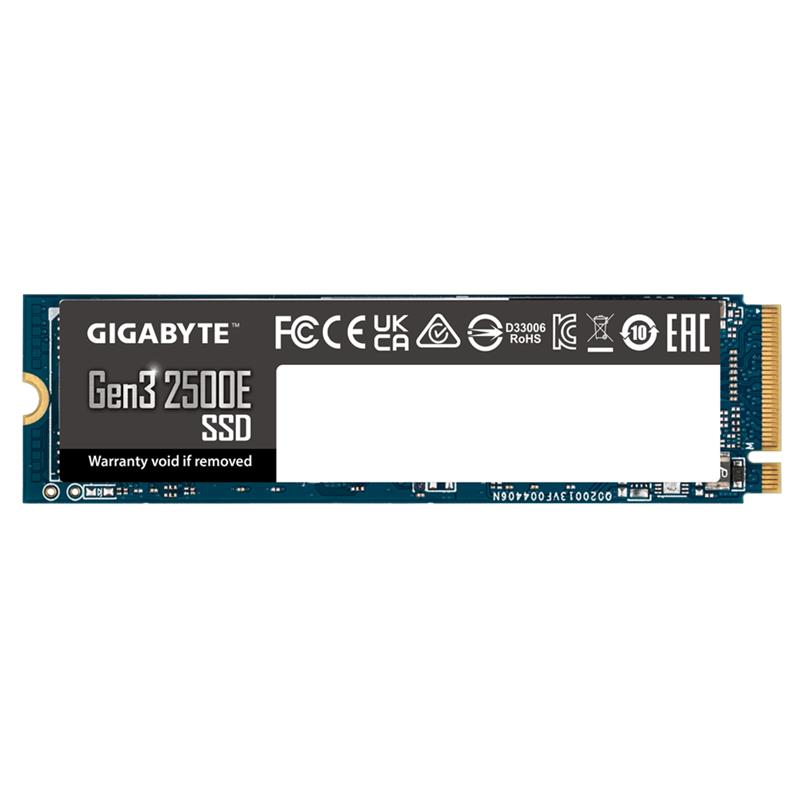

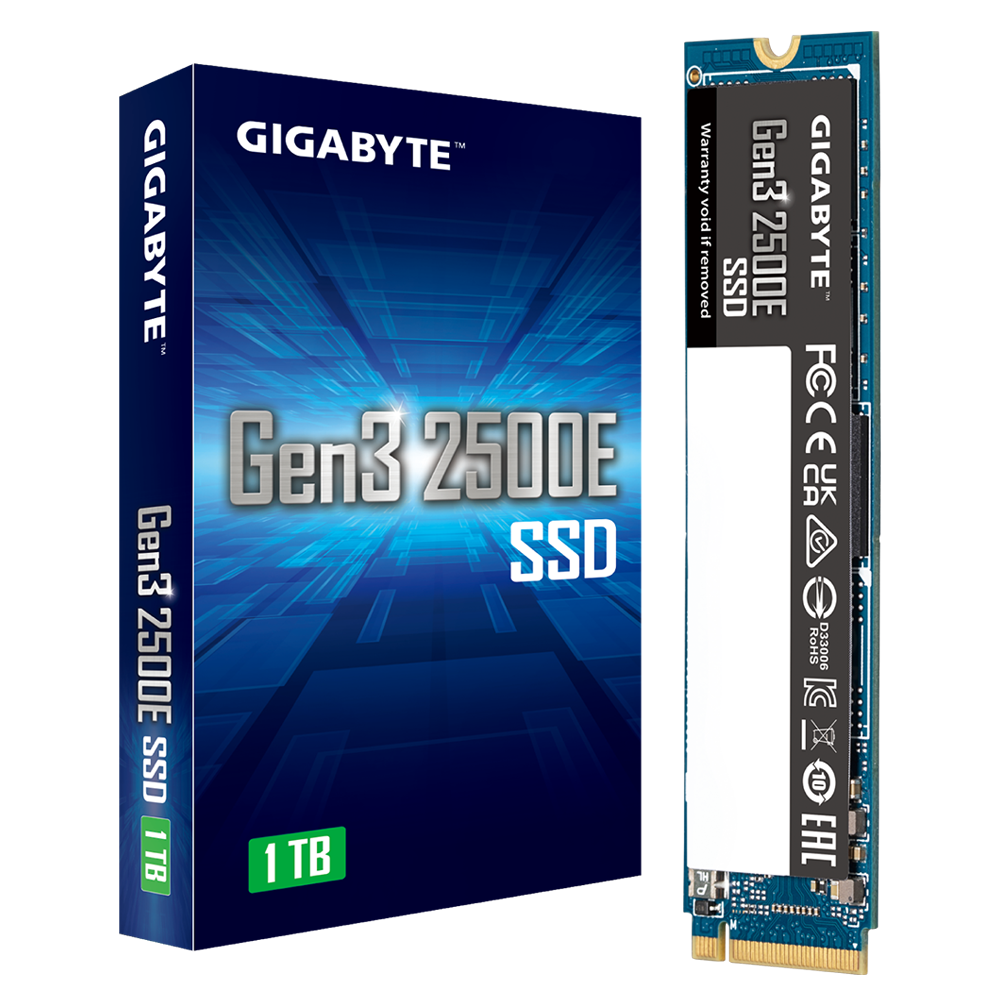

Gigabyte 2500E SSD 1TB M.2 NVMe Gen3 2400/1800 MBps

Interface
PCIe 3.0×4, NVMe1.3 interface
Form Factor
M.2 2280
Total Capacity
1000GB
External DDR Cache
N/A
Sequential Read speed
Up to 2400 MB/s
Sequential Write speed
Up to 1800 MB/s
Random Read IOPS
Up to 130K
Random Write IOPS
Up to 350K
Dimension
22 x 2.3 x 80 mm
Mean time between failure (MTBF)
1.5 million hours
Power Consumption (Active)
Average R : 2670mW
Average W : 3200mW
Power Consumption (Idle)
Idle : 30mW
L1.2 < 5mW Temperature (Operating) 0°C to 70°C Temperature (Storage) -40°C to 85°C Warranty 1. Limited 3 years or 240TBW. 2. Limited warranty based on 3 years or 240TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0) Note • Test system configuration: configuration may vary by models, we will choose the latest platform for verification. • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. • Speeds based on internal testing. Actual performance may vary. • 1GB = 1 billion bytes. Actual useable capacity may vary.
