KEY FEATURE
Powered by Radeon™ RX 7800 XT
Integrated with 16GB GDDR6 256-bit memory interface

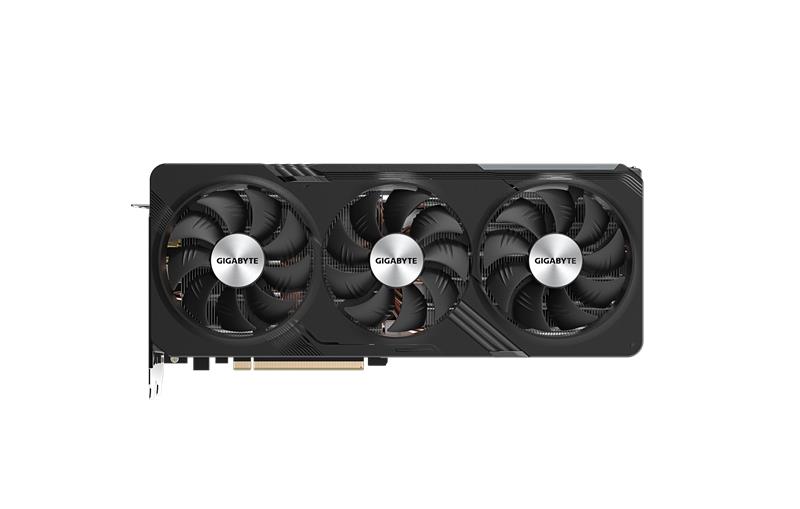

WINDFORCE Cooling System
RGB Fusion
Dual BIOS

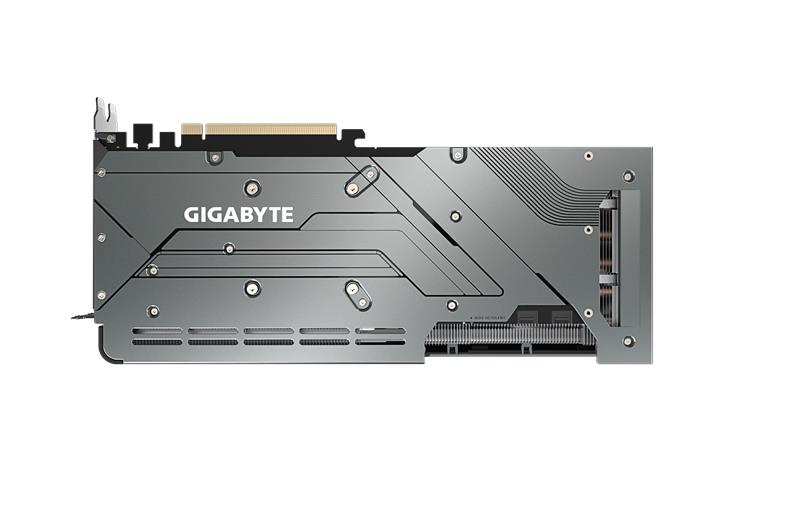

Protection metal back plate
CORE CLOCK
Boost Clock* : up to 2565 MHz (Reference card: 2430 MHz)
Game Clock* : up to 2254 MHz (Reference card: 2124 MHz)
Graphics Processing
Radeon™ RX 7800 XT
Core Clock
Boost Clock* : up to 2565 MHz (Reference card: 2430 MHz)
Game Clock* : up to 2254 MHz (Reference card: 2124 MHz)
Stream Processors
3840
Memory Clock
19.5 Gbps
Memory Size
16 GB
Memory Type
GDDR6
Memory Bus
256 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=302 W=130 H=56 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
700W
Power Connectors
8 Pin*2

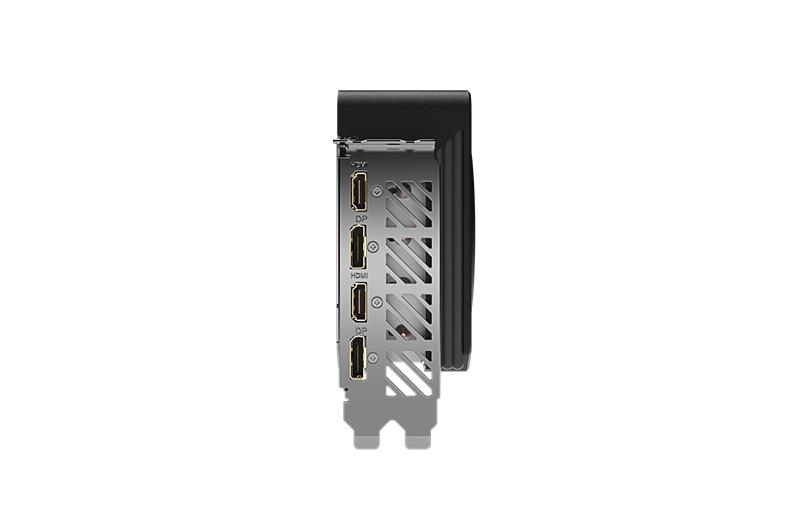

Output
DisplayPort 2.1 *2
HDMI 2.1 *2
Accessories
Quick guide
