KEY FEATURE
Powered by Radeon™ RX 7900 XT
Integrated with 20GB GDDR6 320-bit memory interface

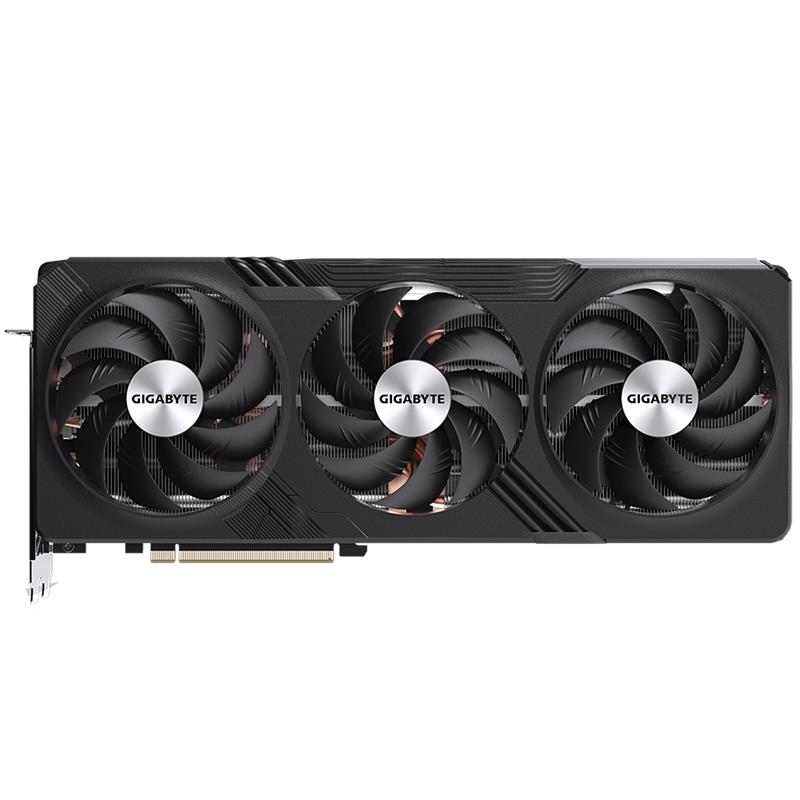

WINDFORCE Cooling System
RGB Fusion
Dual BIOS

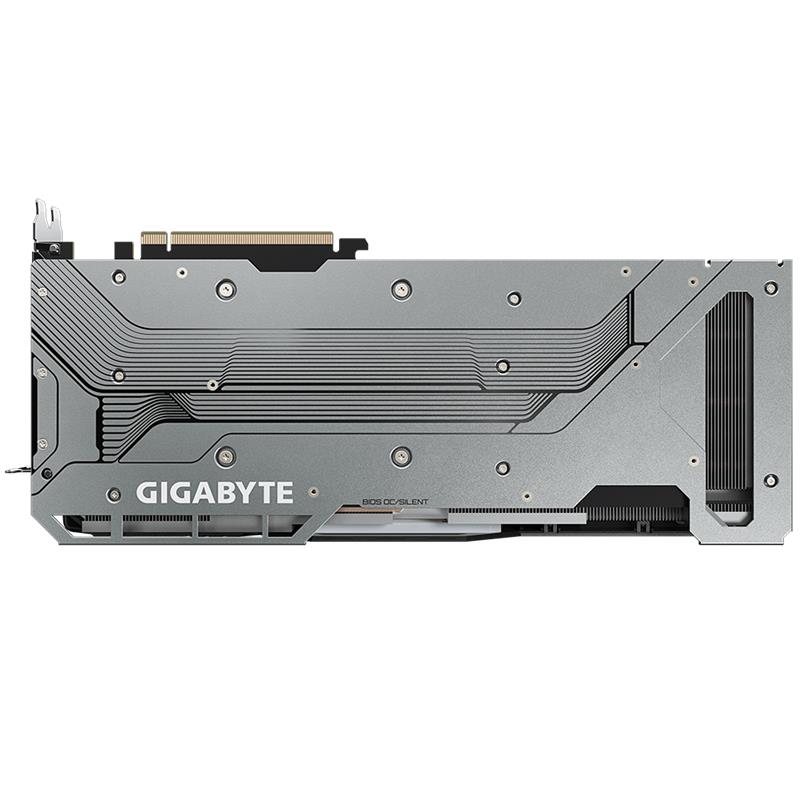

Protection metal back plate
Anti-sag bracket
CORE CLOCK
Boost Clock* : up to 2535 MHz (Reference card: 2400 MHz)
Game Clock* : up to 2175 MHz (Reference card: 2000 MHz)
Graphics Processing
Radeon™ RX 7900 XT
Core Clock
Boost Clock* : up to 2535 MHz (Reference card: 2400 MHz)
Game Clock* : up to 2175 MHz (Reference card: 2000 MHz)
Stream Processors
5376
Memory Clock
20 Gbps
Memory Size
20 GB
Memory Type
GDDR6
Memory Bus
320 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=331 W=138 H=50 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
800W
Power Connectors
8 Pin*2

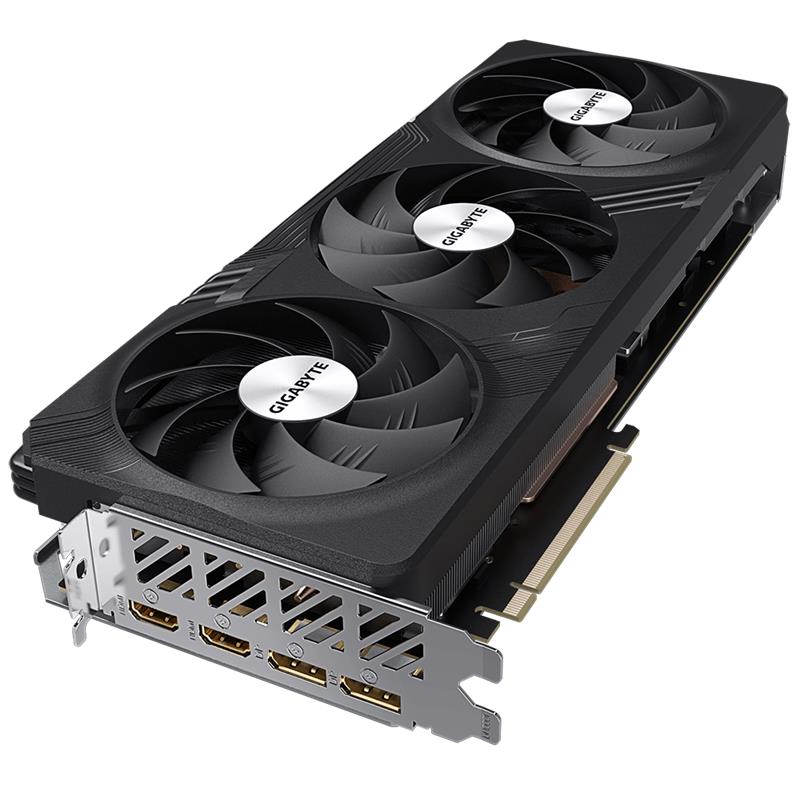

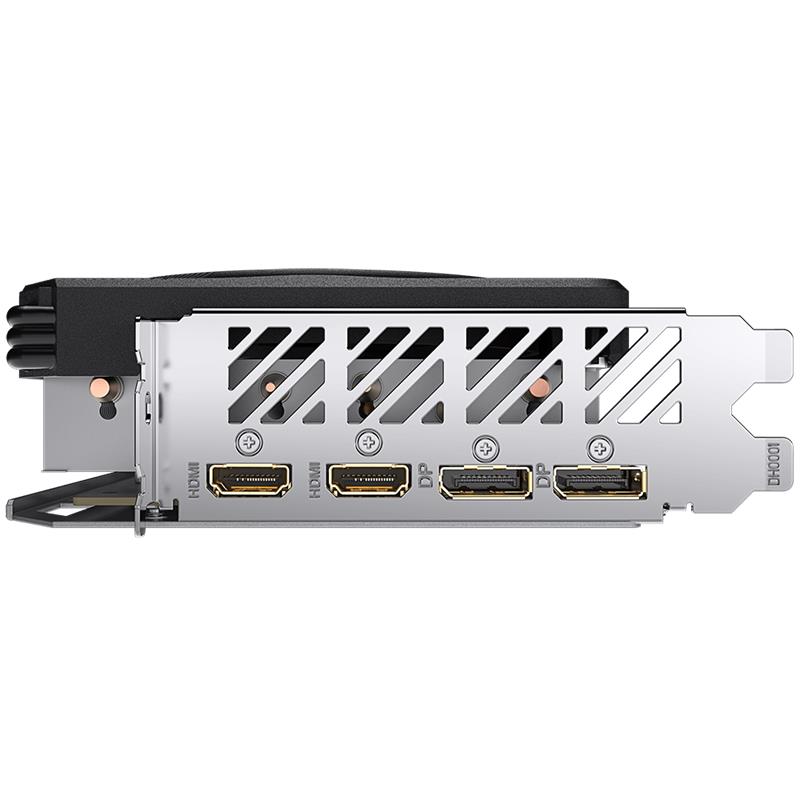

Output
DisplayPort 2.1 *2
HDMI 2.1 *2
Accessories
1. Quick guide
2. Anti-sag bracket
3. Anti-sag bracket installation guide
Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
