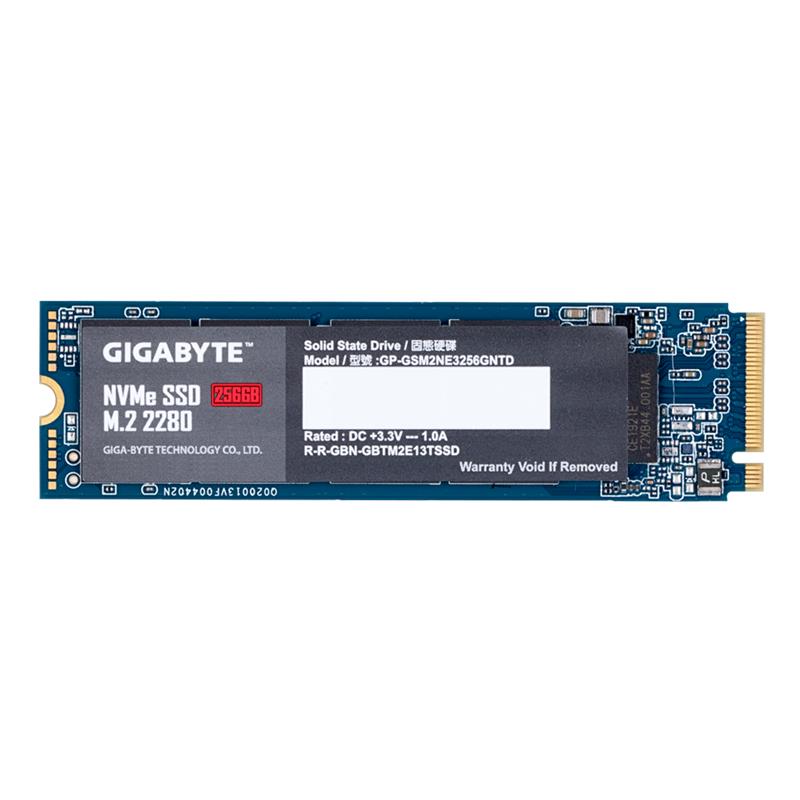

Form Factor: M.2 2280
Interface: PCI-Express 3.0 x4, NVMe 1.3
Total Capacity: 256GB*
Warranty: Limited 5-year or 300TBW
Sequential Read Speed : up to 1700 MB/s**
Sequential Write speed : up to 1100 MB/s**
HMB (Host Memory Buffer) supported
TRIM & S.M.A.R.T supported
Interface
PCI-Express 3.0 x4, NVMe 1.3
Form Factor
M.2 2280
Total Capacity
256GB
NAND
NAND Flash
External DDR Cache
N/A
Sequential Read speed
Up to 1700 MB/s
Sequential Write speed
Up to 1100 MB/s
Random Read IOPS
Up to 180k
Random Write IOPS
Up to 250k
Dimension
80 x 22 x 2.3 mm
Mean time between failure (MTBF)
1.5M hours
Power Consumption (Active)
Avg. read : 2.6W ; Write : 2.4W
Power Consumption (Idle)
1.9mw
Temperature (Operating)
0°C to 70°C
Temperature (Storage)
-40°C to 85°C
Warranty
1. Limited 5-years or 300TBW.
2. Limited warranty based on 5 years or 300TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the „Percentage Used“ (SMART ID: 05) in SMART page of „GIGABYTE SSD toolbox“ reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
