ThinkVision T32h-20 Monitor
DISPLAY
Panel Size 31.5-inch
Screen Dimensions 698.11 mm x 392.69 mm
Panel Type 3-side NearEdgeless In-Plane Switching
Backlight WLED
Aspect Ratio 16:9
Resolution 2560 x 1440
Pixel Pitch 0.2727 x 0.2727 mm
Dot/Pixel Per Inch (DPI/PPI) 94
Viewing Angle (H x V @ CR 10:1) 178° / 178°
Response Time 4ms (extreme mode) 6ms (normal mode)
Refresh Rate 60 Hz
Brightness (typical) 350 cd/m˛
Contrast Ratio (typical) 1000:1
Dynamic Contrast Ratio (typical) 3M:1
Color Gamut 99% sRGB
Color Support (typical) 1.07 Billion
Anti-glare Yes

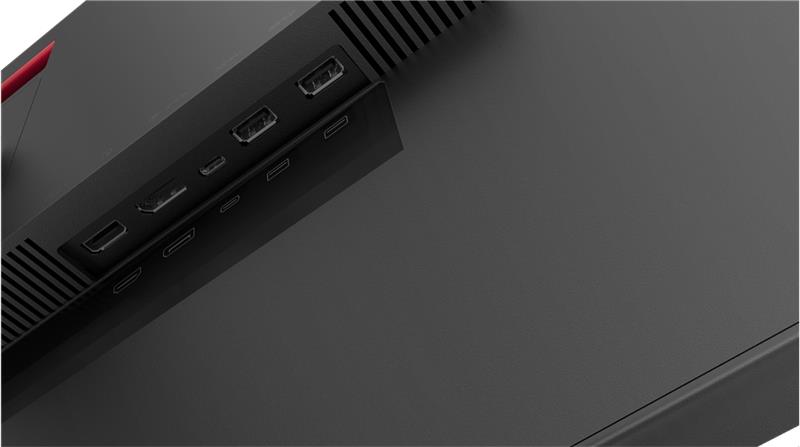

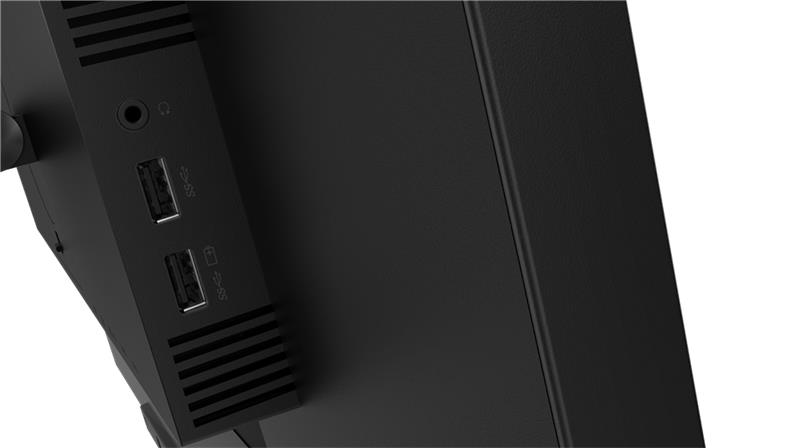

CONNECTIVITY
Video Signal
1 x USB Type-C Gen1 (DP 1.2 Alt Mode)
1 x HDMI 1.4
1 x DP 1.2
Audio Signal
1 x Audio out (3.5 mm)
USB Hub Yes
USB Upstream 1 x USB 3.1 Gen1 (by USB Type-C)
USB Downstream 4 x USB 3.1 Gen1 (1 BC)
POWER
Power Consumption (typ./max.) 28W / 138W
Power Consumption Sleep/Off Mode < 0.5W
Power Consumption Switch-off Mode < 0.3W
ENERGY STAR Power Consumption (Pon/ETEC) 21.6W / 69.2kWh
Power Supply Internal USB Type-C Power Delivery (W) up to 75 W*
Smart Power Yes
Voltage Required AC 100 to 240 V (50-60 Hz)
MECHANICAL
Tilt Angle (front/back) -5° / 35°
Swivel Angle (left/right) -45° / 45°
Lift (max range) 135 mm
Pivot -90° / 90°
VESA Mount Capability Yes (100 x 100 mm)
Kensington Lock Slot Yes
Cable Management Yes
Bezel Color Raven Black
Bezel Width (side) 2.0 mm
Bezel Width (top/bottom) 2.0 / 24.12 mm
DIMENSION
Size Packed (D x H x W) 528.0 x 190.0 x 845.0 mm
Size Unpacked w/ Stand (D x H x W, mm) (lowest position) 235.0 x 469.4 x 714.6 mm
Size Unpacked w/ Stand (D x H x W, mm)(highest position) 235.0 x 604.4 x 714.6 mm
Size Unpacked w/o Stand(head only) (D x H x W, mm) 714.6 x 426.0 x 51.0 mm
Weight Packed (kg) 12.96 kg
Weight Unpacked (kg) 9.85 kg
Weight (monitor head only)(kg) 6.78 kg
WHAT’S IN THE BOX
Monitor with stand
1 x Power cable (1.8 m)
1 x DP cable (1.8 m) (NA only)
1 x USB Type-C to Type-A cable (1.8 m) (NA only)
1 x USB Type-C to Type-C cable (1.8 m)
Quick setup guide
