Part number
63A1GAT1EU
PERFORMANCE
Display Size 27″
View Area 596.7×335.7 mm
Panel In-Plane Switching
Aspect Ratio 16:9
Resolution 2560×1440
Pixel Pitch 0.233×0.233 mm
Dot / Pixel Per Inch 109 dpi
View Angle (H / V) 178° / 178°
Response Time 4 ms (Extreme mode) / 6 ms (Typical mode)
Refresh Rate 60 Hz
Brightness 350 nits
Contrast Ratio 1000:1
Color Gamut 99% sRGB, 99% BT.709, 95% DCI-P3
Anti-glare Yes
Curvature None
Camera Modular Camera Support
Microphone None
Speakers Modular Soundbar Support
Power Consumption (Typical / Maximum) 22W / 180W
Power Adapter Integrated
Touchscreen None
Smart System None
DESIGN

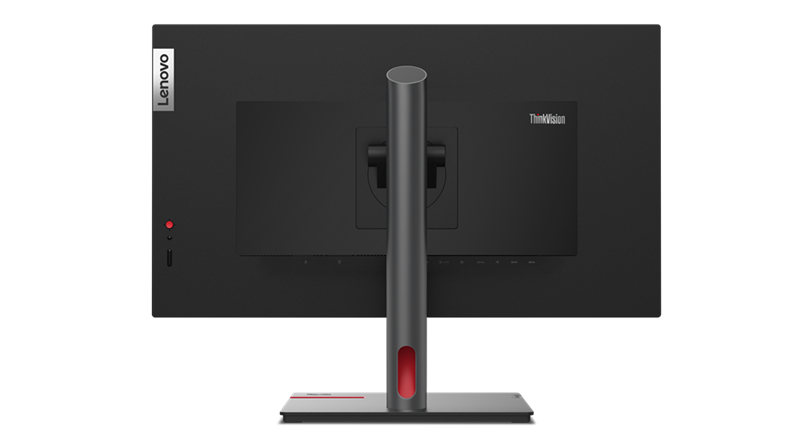

Stand Supports -5° to +23.5° tilt, left & right 45 swivel, -90° to +90° pivot, up to 155mm lift
Case Color Raven Black
Side Bezel Width 2 mm
Dimensions with Stand (HxWxD) 535.3×611.9×204.5 mm
Weight (Including Stand) 7.0 kg
Mounting Supports VESA mount 100mm
ThinkCentre M Series Support Tiny Support
CONNECTIVITY
Ports
1x USB-C 3.2 Gen 1 (DP 1.4 32.4 Gbps for 4 lanes Alt Mode, up to 100W), USB upstream
1x HDMI 2.0
1x DisplayPort 1.4
1x DisplayPort out
1x USB-B 3.2 Gen 1, USB upstream
1x USB-C 3.2 Gen 1 (15W), USB downstream
4x USB 3.2 Gen 1 (1x BC), USB downstream
1x Ethernet (RJ-45)
1x audio-out (3.5mm)
1x Power Connector
SERVICE
Base Warranty 3-year
CERTIFICATIONS
Environmental Certification ENERGY STAR Certified, TCO 9.0, TCO Edge 2.0, EPEAT Gold, RoHS
Ergonomic Certification Eyesafe Display, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort
Sync Technology None
SOFTWARE
Operating System Support Windows 10, Windows 11
ACCESSORIES
Video Cables USB Type-C Gen 2 cable, USB Type-A to Type-B cable
SPECIAL FEATURES Factory Calibration: Avg. Delta E<2 Picture In Picture (PIP) / Picture By Picture (PBP) Support HDR10 Compliance KVM Switch Mirrored Power Button The monitor's power button can be used to control the on/off and sleep modes of a compatible laptop when the two are connected via USB-C port Natural Low Blue Light Lenovo ThinkColour (Lenovo Display Control Center) Support ThinkColour can only be used with Windows 10 and Windows 11 Smart Power The Smart Power function intelligently detects overall power consumption and dynamically manages the power delivery to each device
