Details
Get high-performance cooling, display a favorite animated GIF or static image, monitor real-time PC performance metrics, see music that’s currently playing, stream browser content and more with NZXT CAM software.

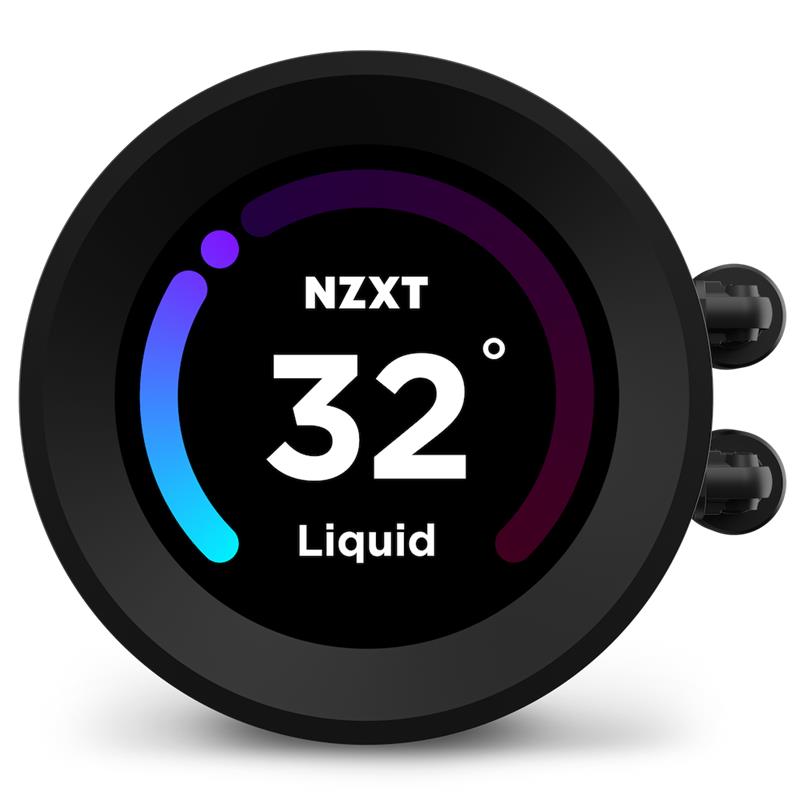

2.36” diameter wide-angle LCD display with 640×640 resolution and 60 Hz refresh rate provides a sharp image from any viewing angle
Screen supports the display of custom images, animated GIFs, and CAM system info with adjustable orientation
Powerful Asetek pump provides optimal cooling and up to 2,800 RPM whisper-quiet operation
Includes F140P/F120P Static Pressure fans
Single breakout cable simplifies installation
Rubber tubing is reinforced with nylon-braided sleeves to prevent leaks
Control custom screen content, pump speed, and zero-noise fan curves with NZXT CAM
Inside the Box

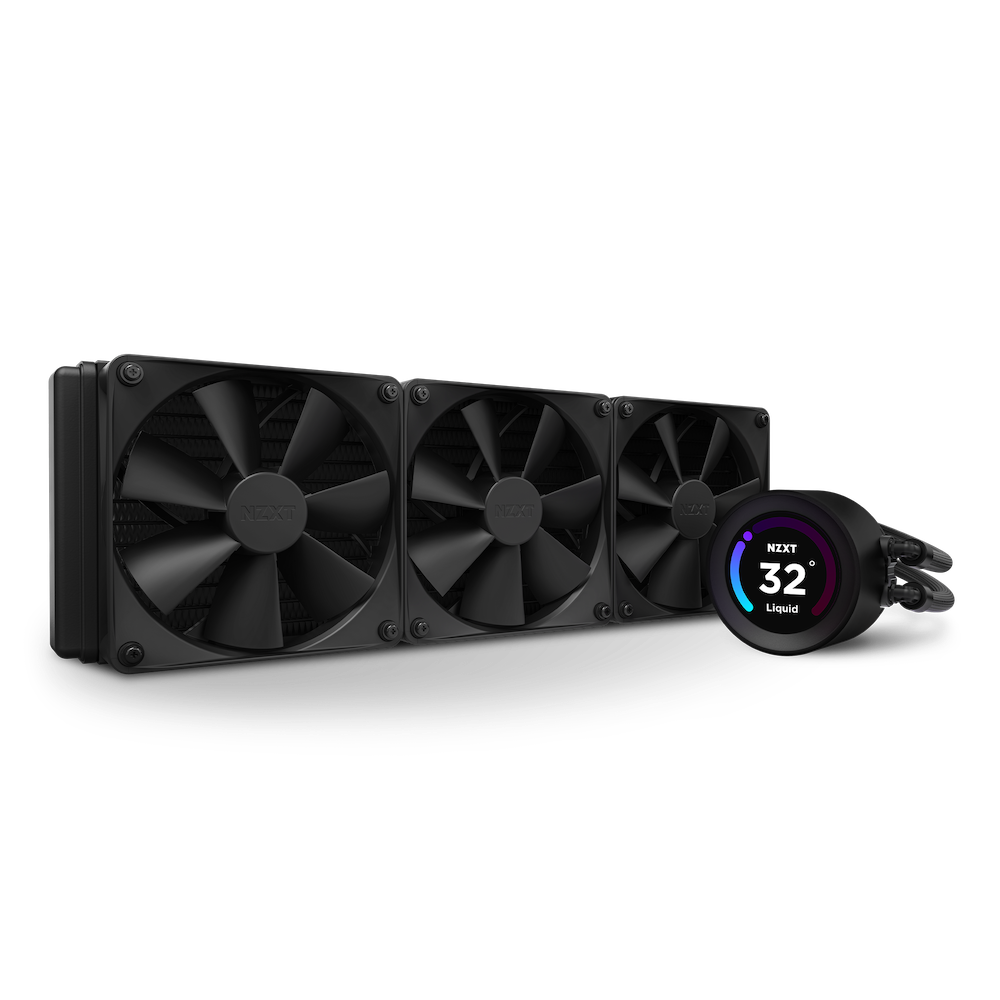

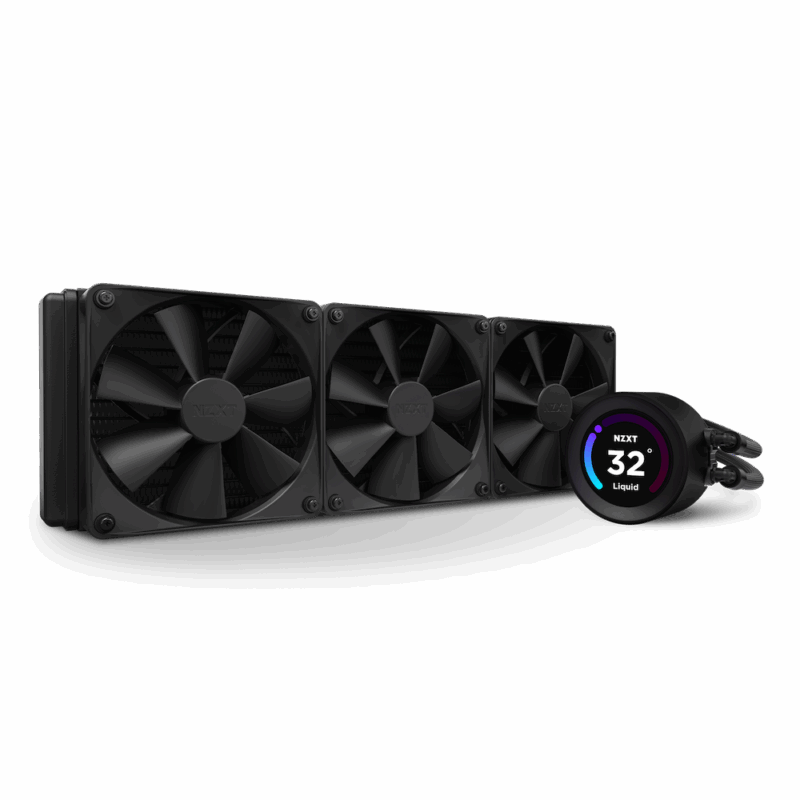

Kraken Elite 3601
F120P fan3
Installation Accessories1
Breakout cable set
Cap
Material:Aluminum and plastic
Display Orientation:Software adjustable Default, +90, +180, and -90 Degrees
Display Panel Active Area:2.36” (60mm) diameter
Display Color:24-bit true color LCD
Display Resolution:640 x 640 px
Display Brightness:690 cd/m2
Display Panel Type:TFT-LCD (Wide Viewing Angle)

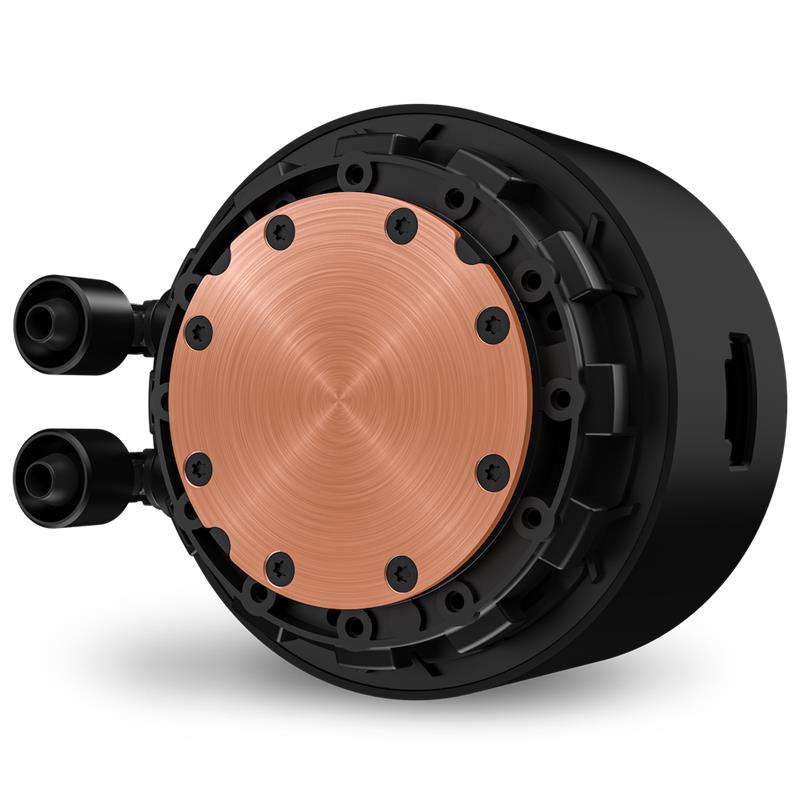

Water Block
Dimensions:Diameter: 81.9mm H: 59.5mm
Material:Block: Copper Housing: Plastic
Pump
Motor Speed:800 – 2,800 ± 300RPM
Power:12V DC, 0.3A

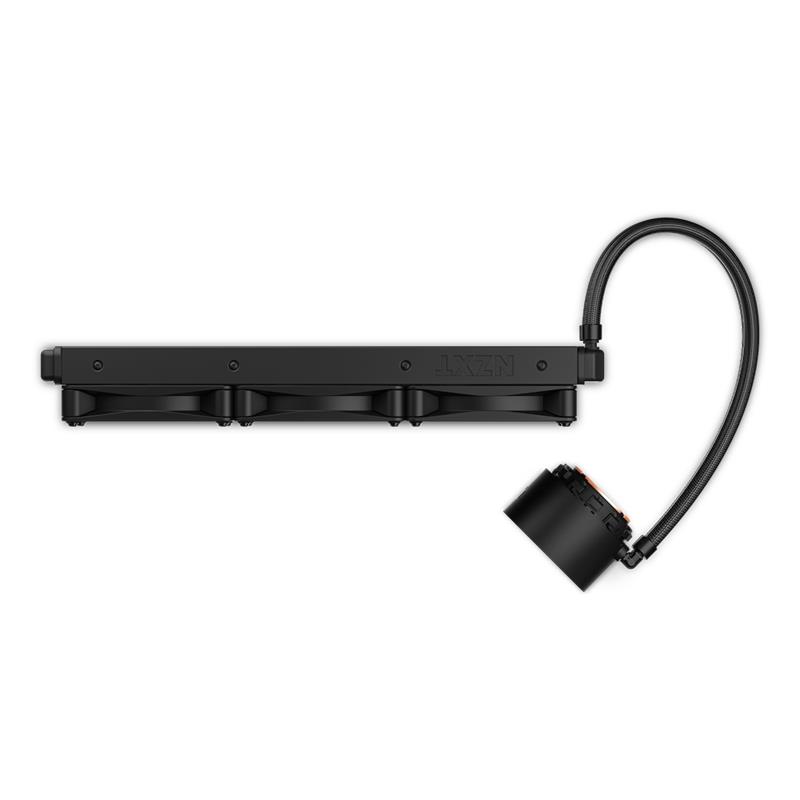

Radiator
Dimensions:121 x 394 x 27mm
Material:Aluminum
Tube
Length:400mm
Material:Ultra-low Evaporation Rubber with Nylon Braided Sleeve
Fan Specs
Model:F120P Static Pressure Fan
Quantity:3
Dimension:120 x 120 x 26mm
Speed:500-1,800 ± 180 RPM
Air Flow:21.67 – 78.02 CFM
Air Pressure:0.75 – 2.7mm-H2O
Noise:17.9 – 30.6dBA
Bearing:Fluid Dynamic Bearing
Power Consumption:12V DC, 0.23A, 2.76W
Connector:4-pin PWM
Life:60,000 hours / 6 Years
Limited Warranty:6 Years
Compatible Socket & CPU
Intel:Intel Socket LGA 1700, 1200/115X Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
AMD:AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included) AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper
General
Warranty:6 Years
Model Number:RL-KN36E-B1
UPC:810074842235
EAN:5056547202235
