Details
The Signal 4K30 Capture Card makes it easy to record and stream gameplay from current-gen consoles and a high-end gaming PC at maximum quality! It’s your stepping stone to building and growing your audience.
Record video content at 4K resolution with 30 frames per second from your console, mobile device, PC, or camera to share with your audience
Play your games in high resolution and refresh rate while recording: 4K60 HDR, 1440p144Hz HDR, or 1080p240Hz HDR with zero-lag passthrough
Get your stream picture-perfect by connecting directly with OBS, Streamlabs, or any other streaming software
Works seamlessly with Skype, Zoom, Discord, or any other video calling software
Hardware compatible with both Mac and PC, requires USB 3.2 Gen 1
Software support through NZXT CAM

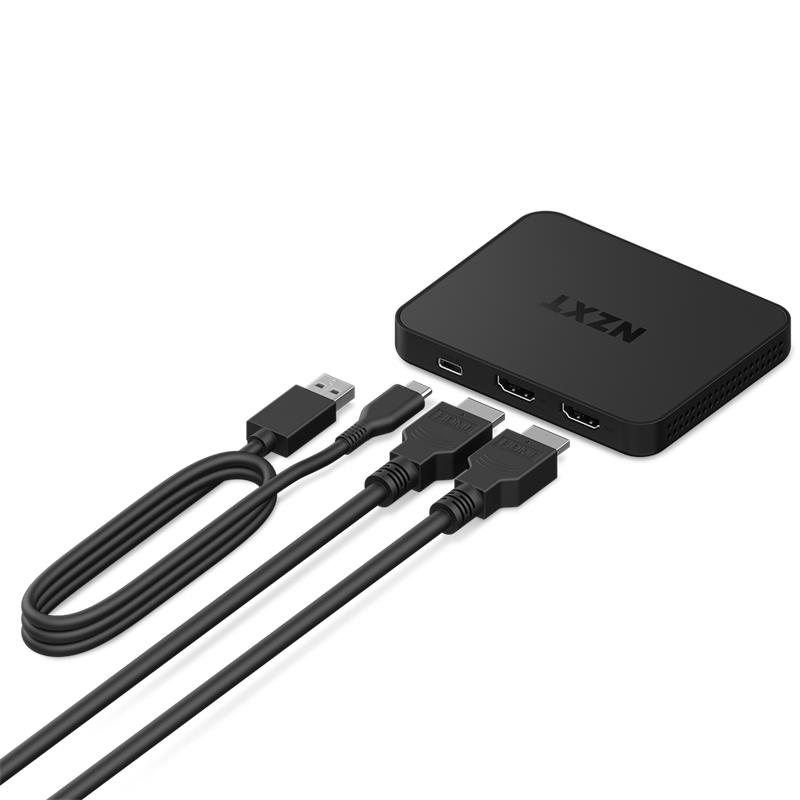

Inside the Box

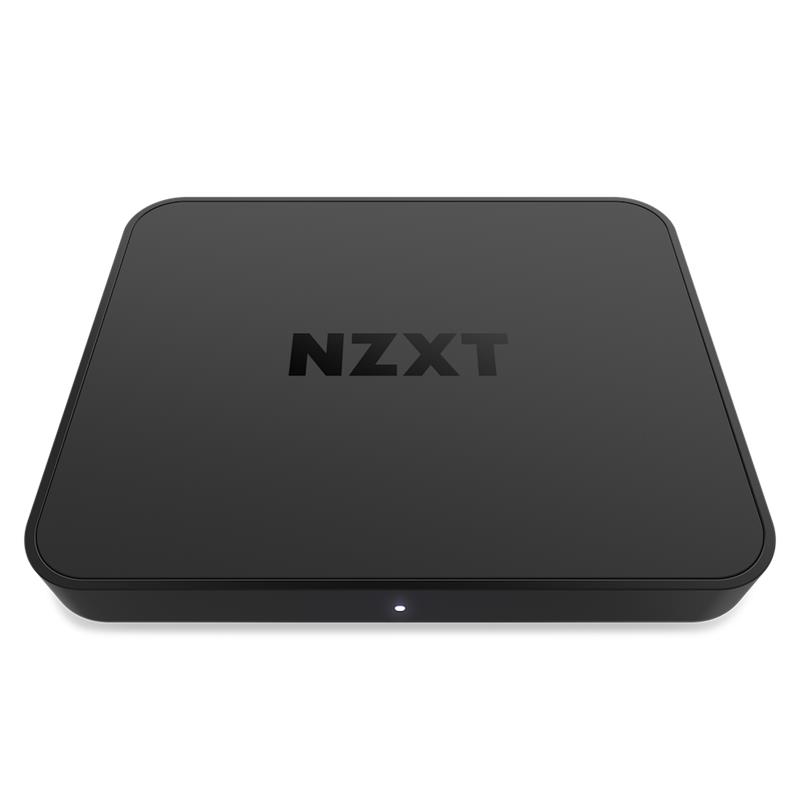

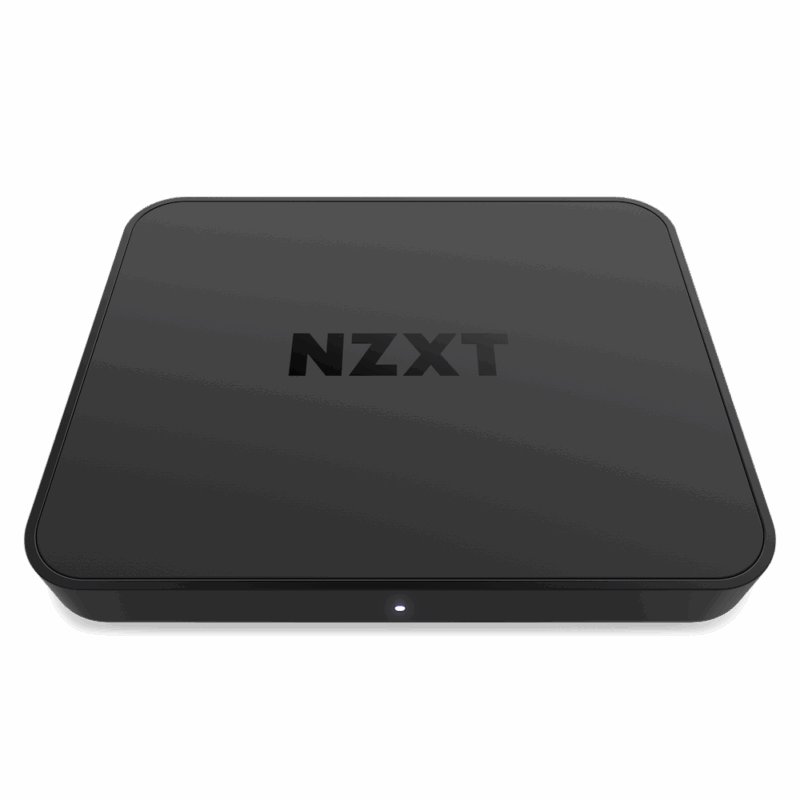

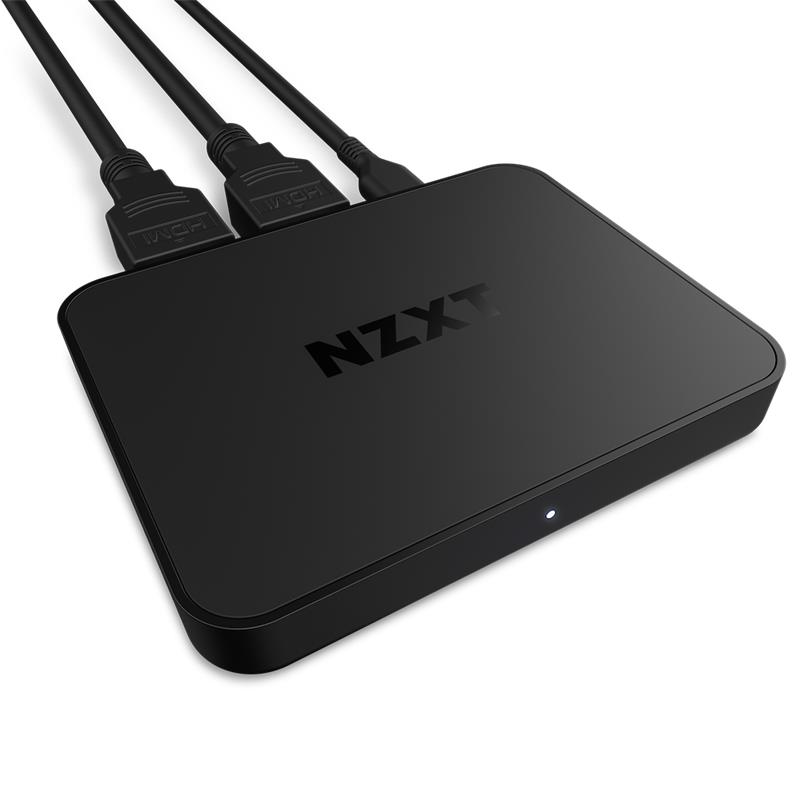

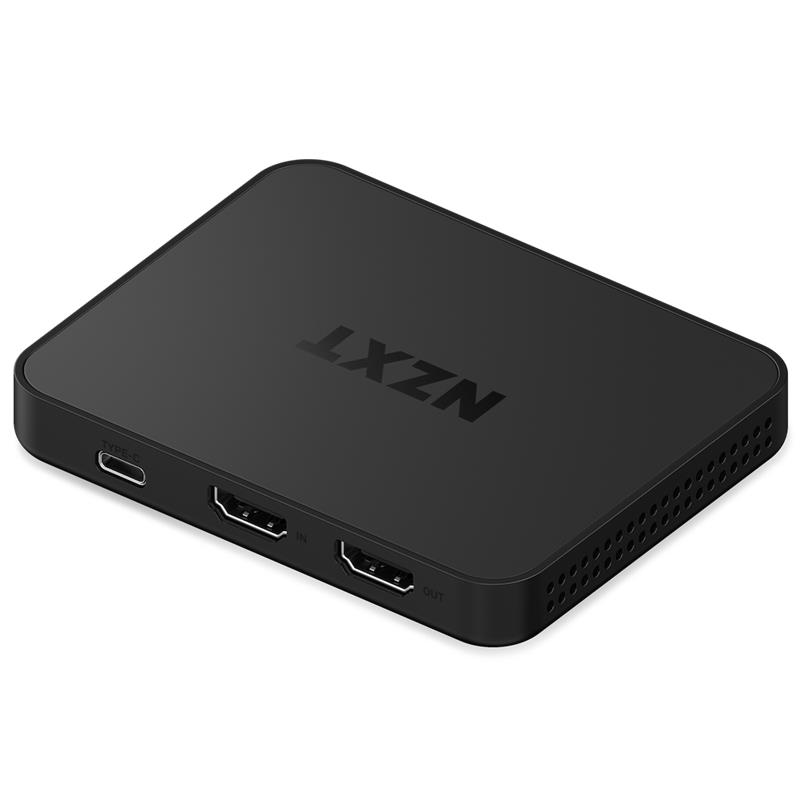

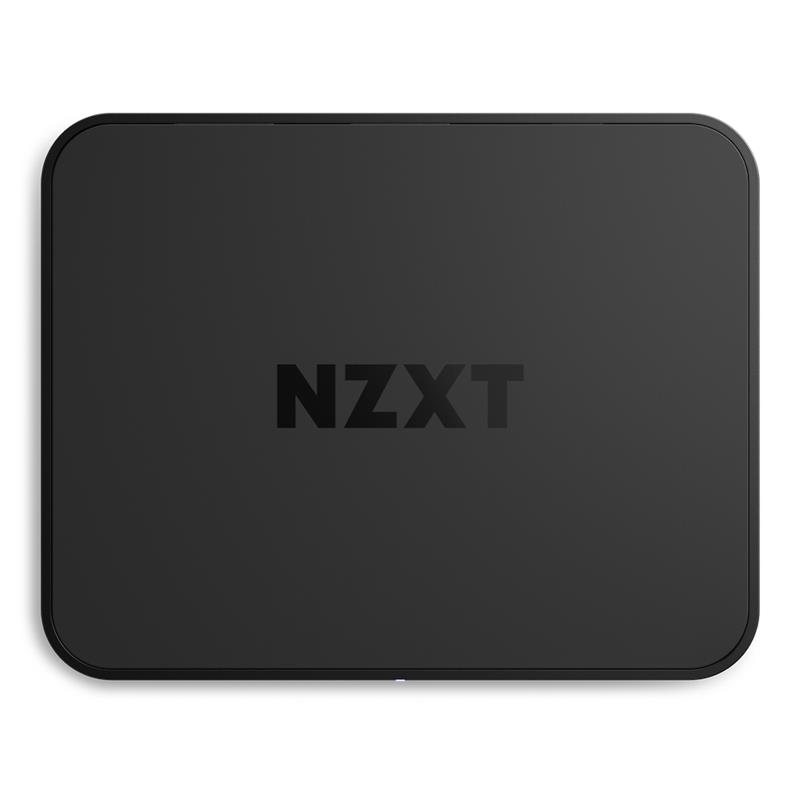

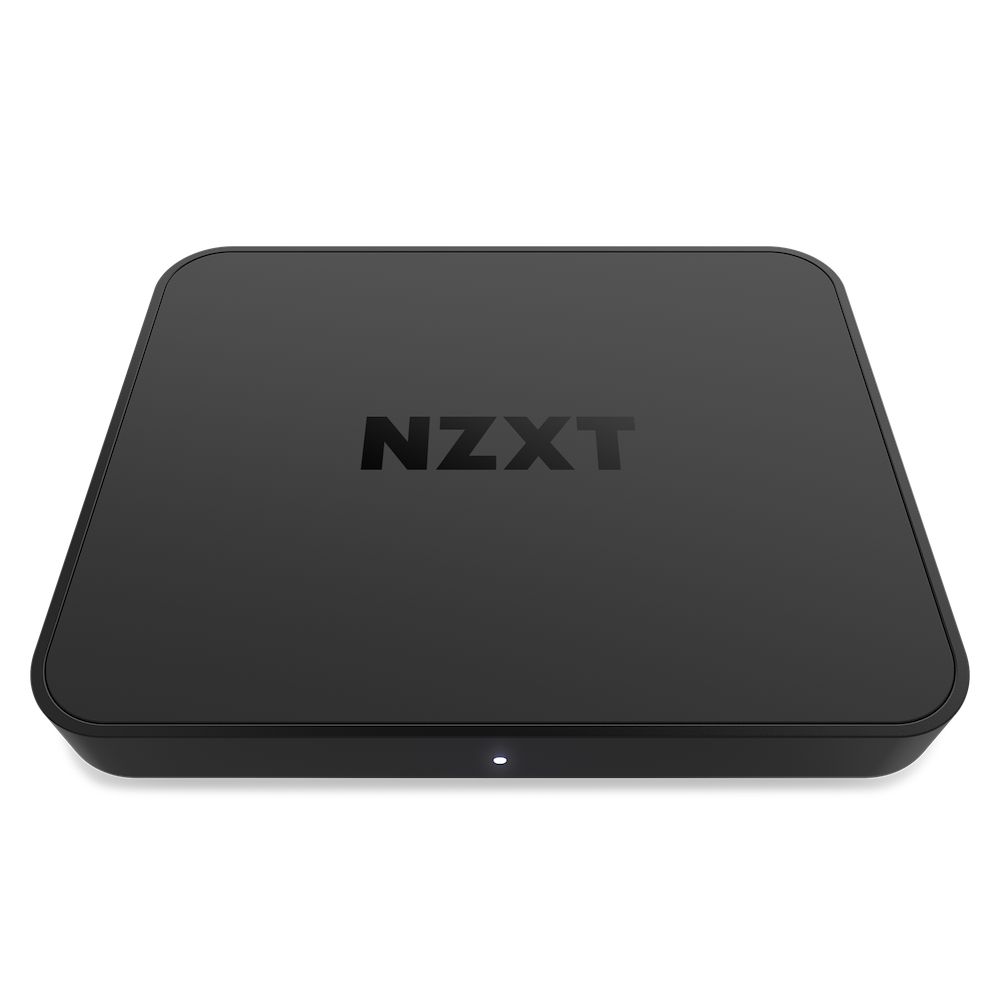

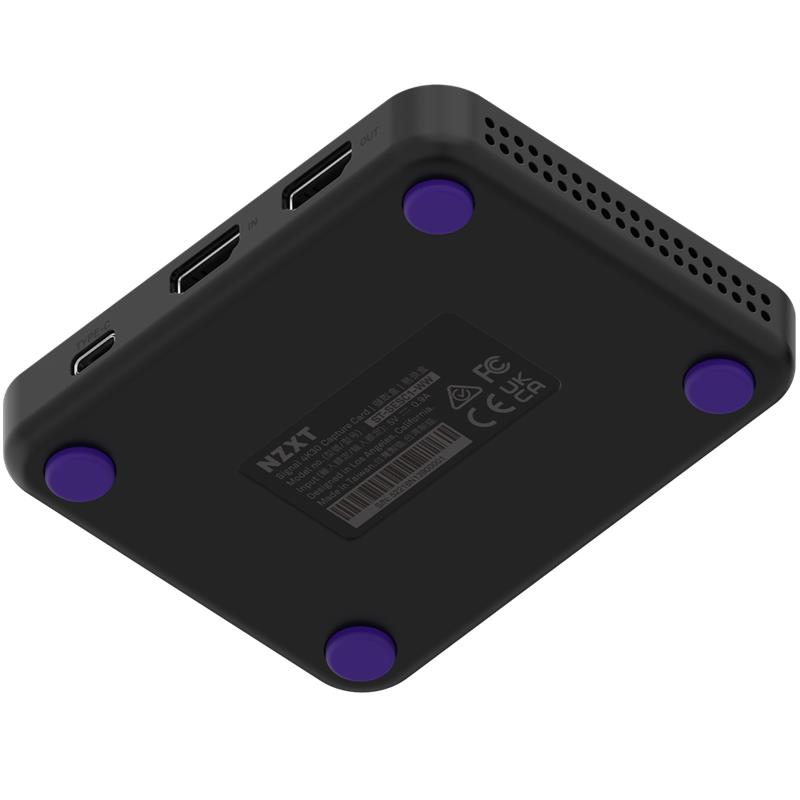

NZXT Signal 4K30 Capture Card1
HDMI 2.01
USB-C to USB-A cable1
Key Specs
Input and Passthrough:HDMI 2.0
Power and Data:USB 3.2 (Gen 1) Type C
PC Connection:USB-C to USB-A
Channels:2 (16 bit, 48 kHz Audio)
Compliance:Compliant with HDMI 2.0 and DVI 1.0 specifications
HDR to SDR Conversion:HDR10 passthrough with hardware conversion to SDR color
Maximum Input & Passthrough Compatibility
3840x2160p:60fps HDR
2560x1440p:144fps HDR
2560x1080p:144fps HDR
1920x1080p:240fps HDR
Others:720p, 480p, 576p, 480i, 576i, 1920x1080i
Dimensions
Length:173 mm
Width:143 mm
Height:60 mm
Weight:324 g
Gross Weight:450 g
Software
Audio:HDMI: Stereo 16 bit 48K samples/sec
Scaling:Hardware downscaling, and upscaling to 1080p
UCV Supported Raw Formats:NV12 & YUY2 (for up to 1440p)
System OS:PC / Windows 10, Windows 11
General
Warranty:2 years
Model Number:ST-SESC1-WW
UPC:815671016584
EAN:5060301696499
