Details

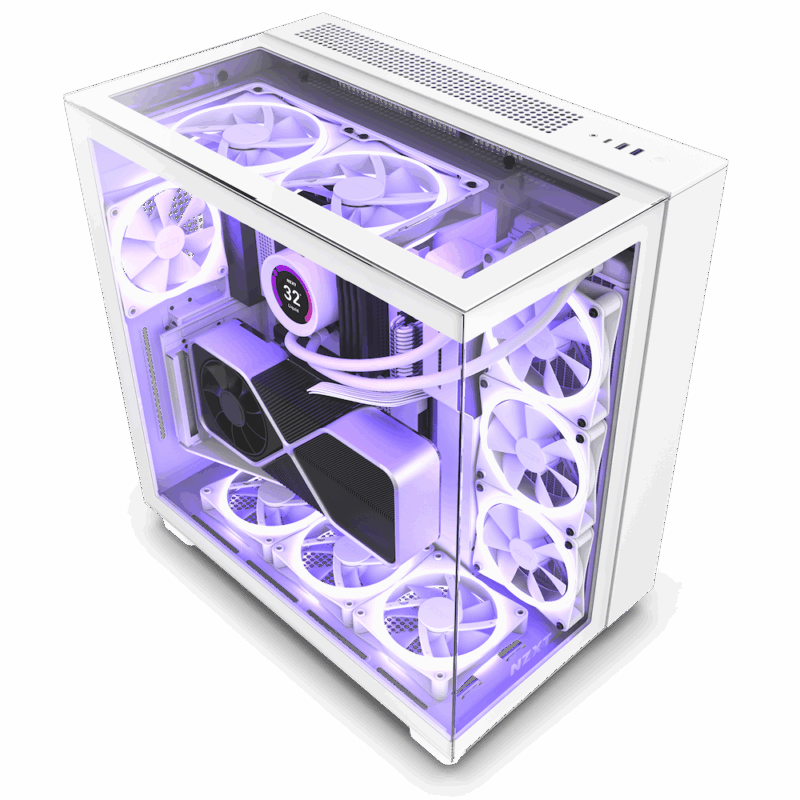

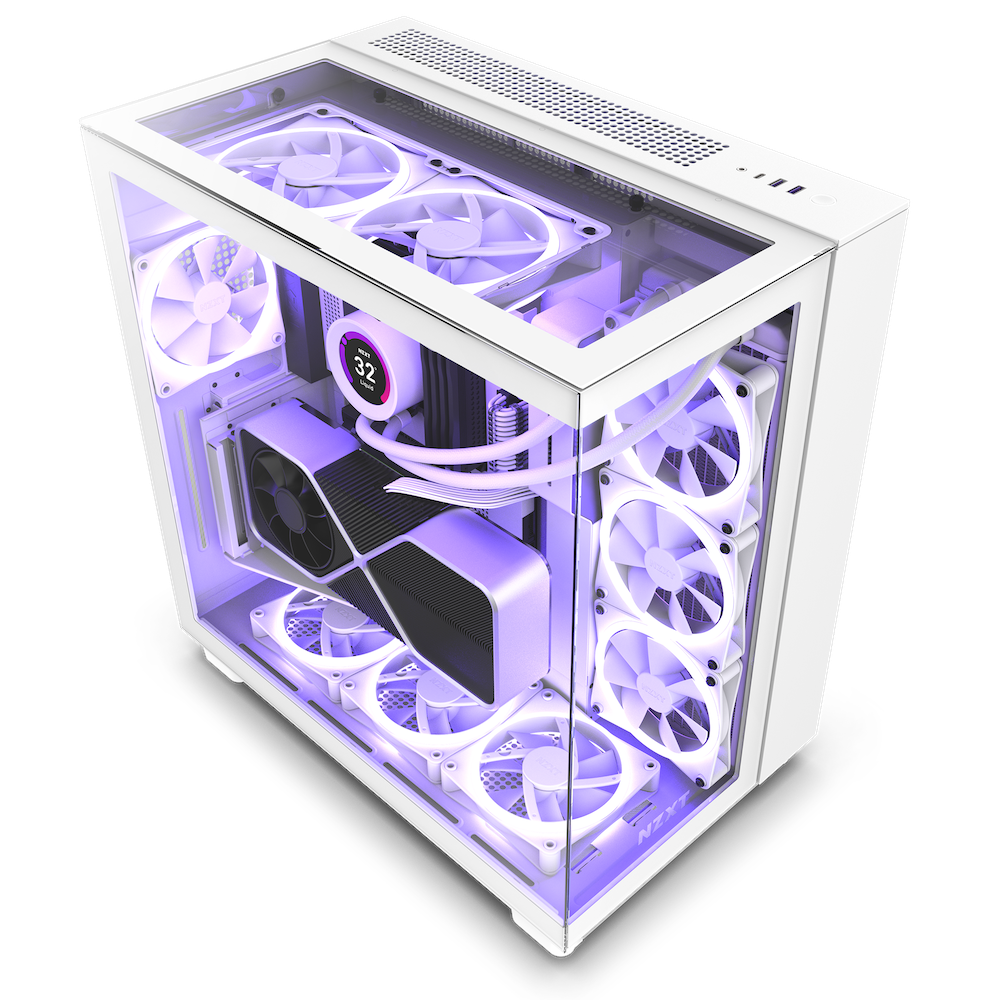

The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.

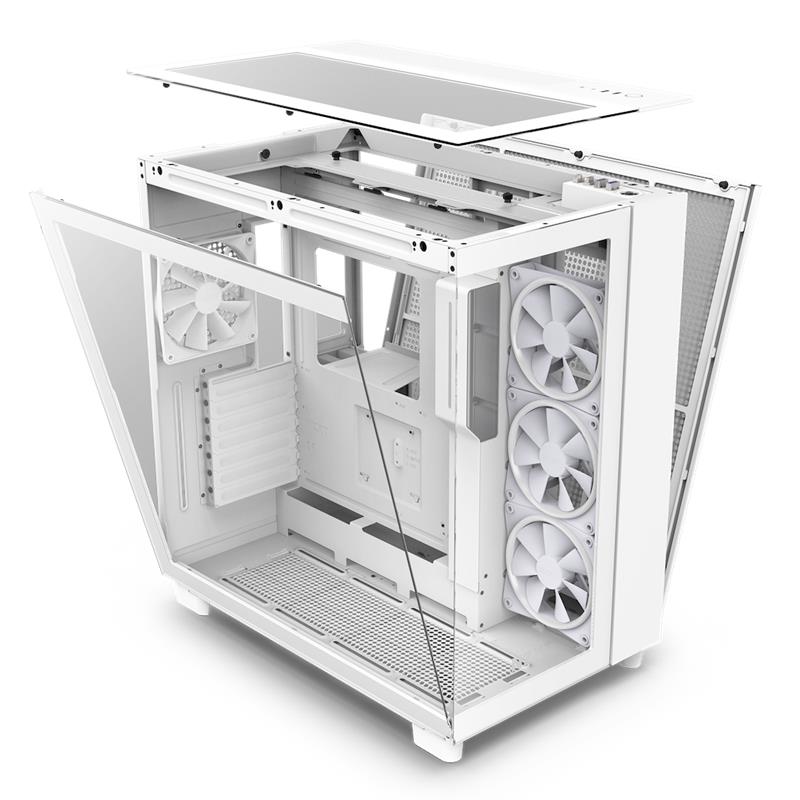

Unique uninterrupted glass panel for a clear view of the interior
Intuitive cable management and dual chamber design
Room for ten fans or three 360mm Radiators

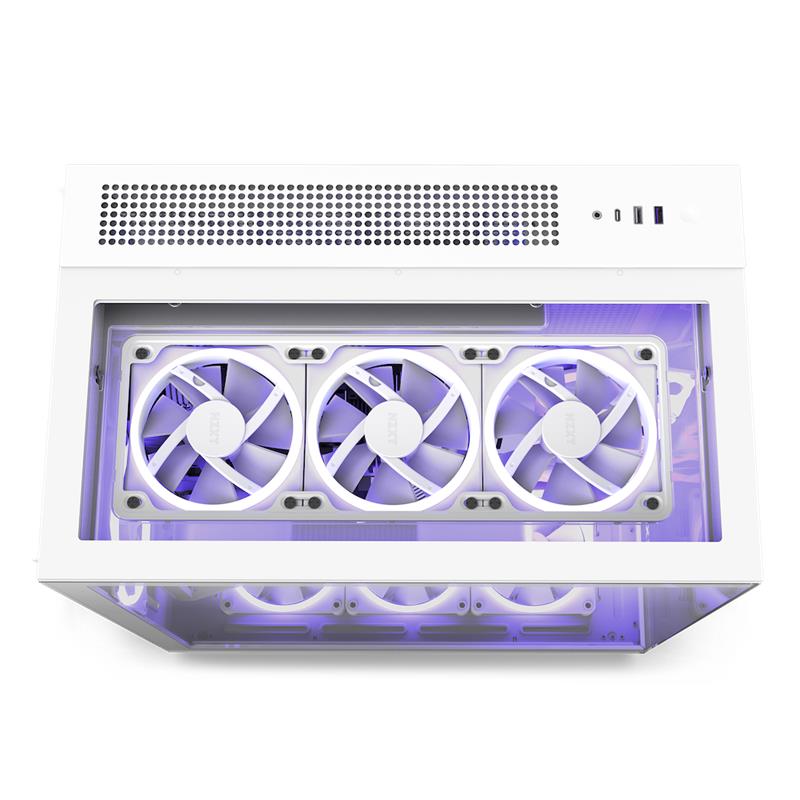

Tempered glass top panel and included RGB & Fan Controller
Direct airflow to the GPU for handling high-powered components
Enhanced experience with other products from the NZXT ecosystem
Includes three F Series 120mm RGB Duo Fans and one F120Q Fan
Inside the Box
H9 Elite Case1
Front I/O split cables1
120mm RGB Duo Fan3
120mm Quiet Airflow Fan (Case Version)1
RGB and Fan Controller1
Installation Accessories1
Manual1
Key Specs
Motherboard Support:Mini-ITX, Micro-ATX, ATX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, TUltra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
Dimensions
Height:495mm (With Feet)
Width:290mm
Depth:466mm
Weight:13.1 kg
Compatibility & Clearance
CPU Cooler Clearance:Up to 165mm
GPU Clearance:Up to 435mm
PSU Clearance:200mm
Cable Management:91mm
Front I/O Ports
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
Expansion Slots
Standard:7
Vertical:0
Drive Bays
2.5″:4+2
3.5″:2
Fan Support
Side:3 x 120mm
Top:3 x 120mm / 2 x 140mm
Bottom:3 x 120mm / 2 x 140mm
Rear:1 x 120mm
Filters:All Air Intakes
Radiator Support
Side:Up to 360mm
Top:Up to 360mm
Bottom:Up to 360mm
Rear:Up to 120mm
Fan Specs
Model:F120Q (Case Version)
Speed:1200 ± 240RPM
Airflow:62.18 CFM
Static:1.05 mm – H2O
Noise:25.1 dBA
Fan Connector:3-pin
Fan Specs
Model:F120RGB Duo
Speed:500 ± 1800RPM
Airflow:48.58 CFM
Static:2.42mm – H2O
Noise:29 dBA
Fan Connector:4-pin
General
Warranty:2 Years
Model Number:CM-H91EW-01 (White) / CM-H91EB-01 (Black)
UPC:810074842525 (White) / 810074842518 (Black)
EAN:5056547202440 (White) / 5056547202433 (Black)
