Details

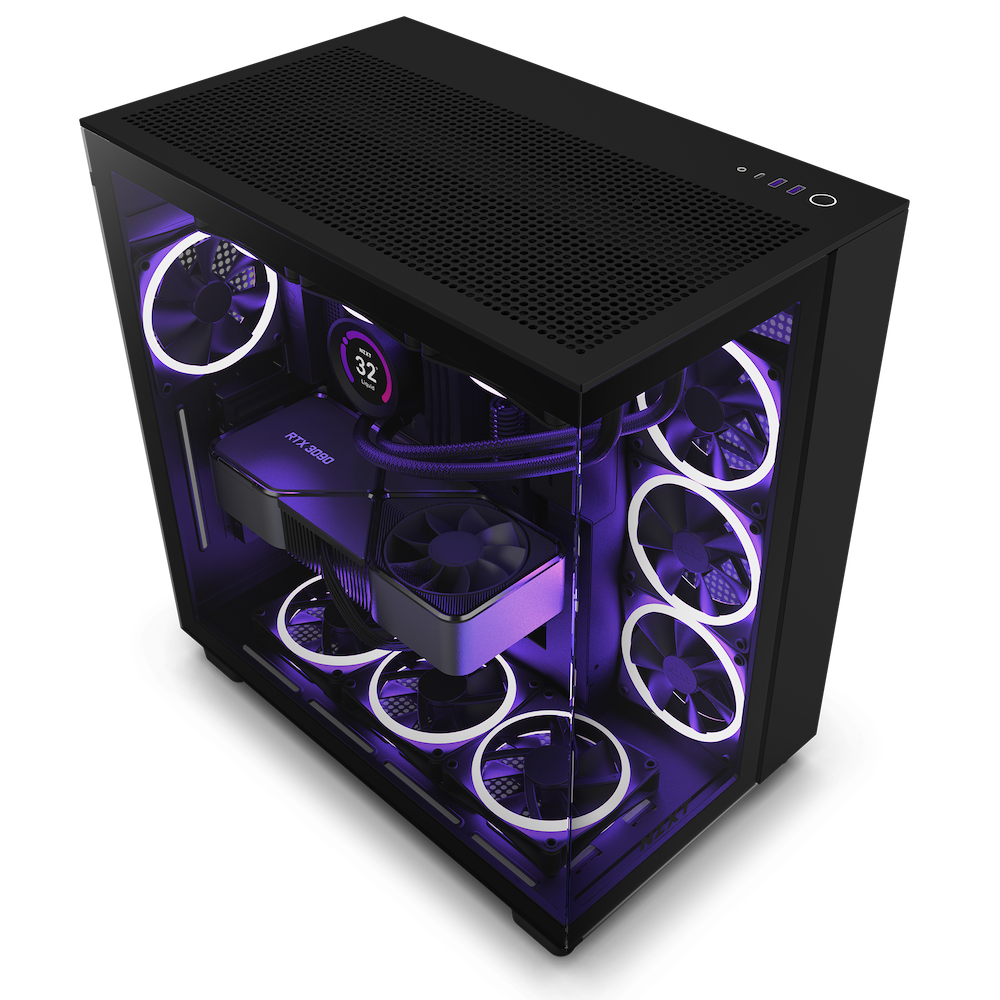

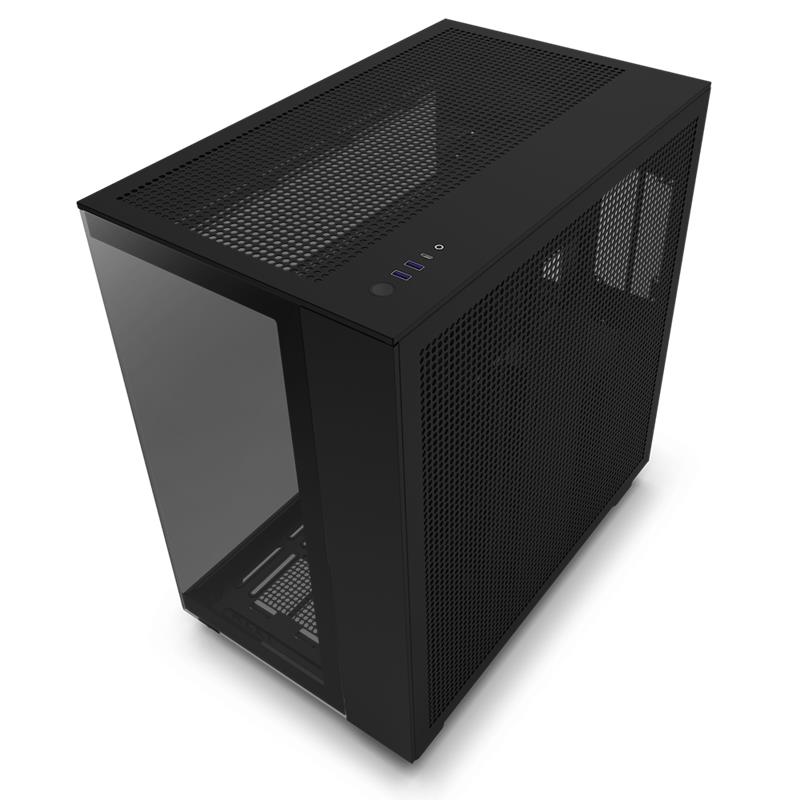

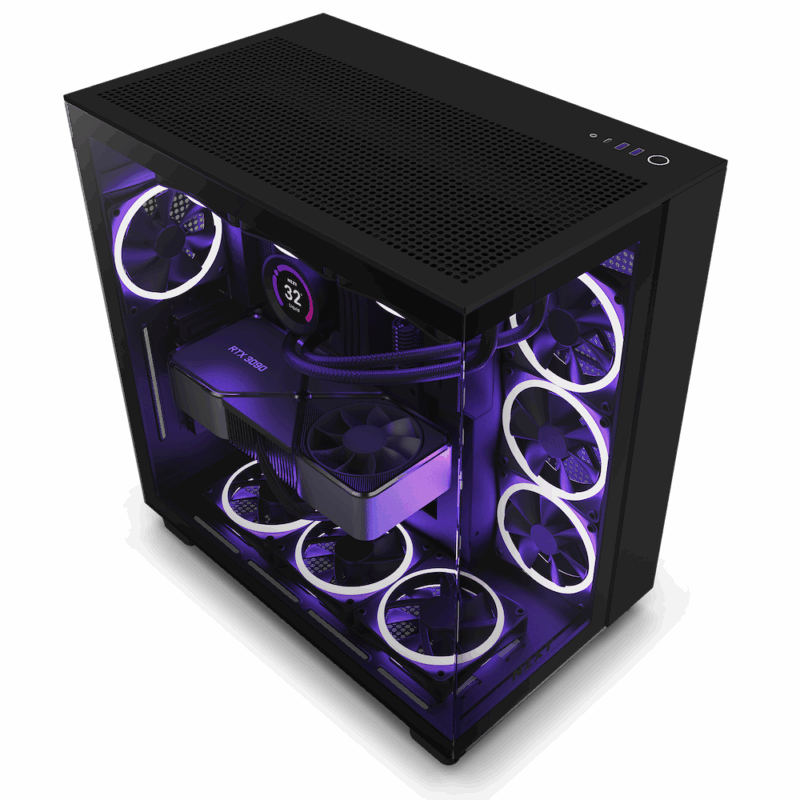

The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring the capacity for ten fans and numerous 360mm radiator mounting options and the perforated top panel takes cooling even further.
Unique uninterrupted glass panel for a clear view of the interior

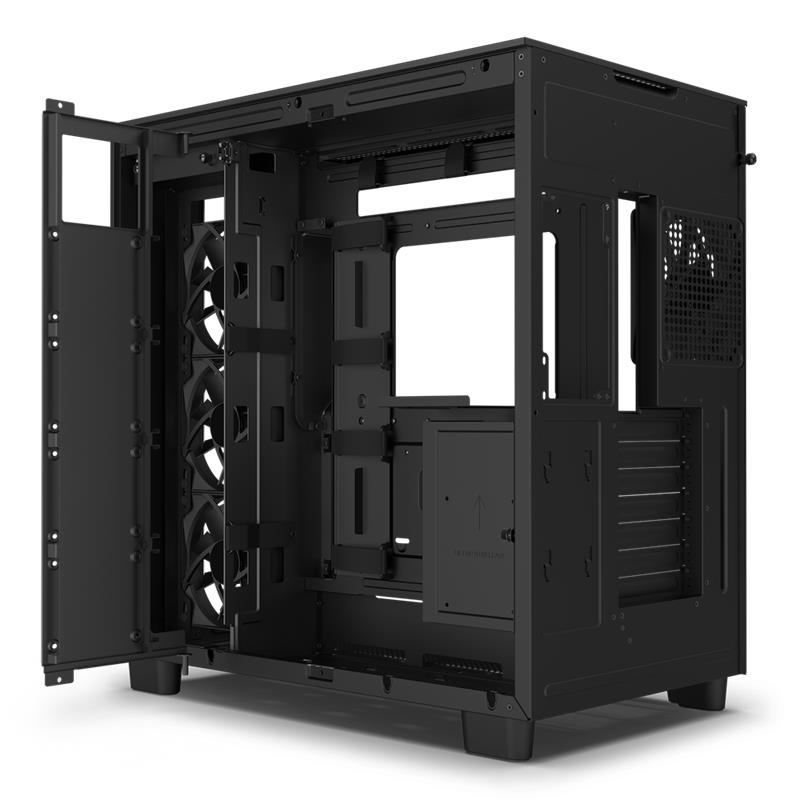

Intuitive cable management and dual chamber design
Room for ten fans or three 360mm Radiators

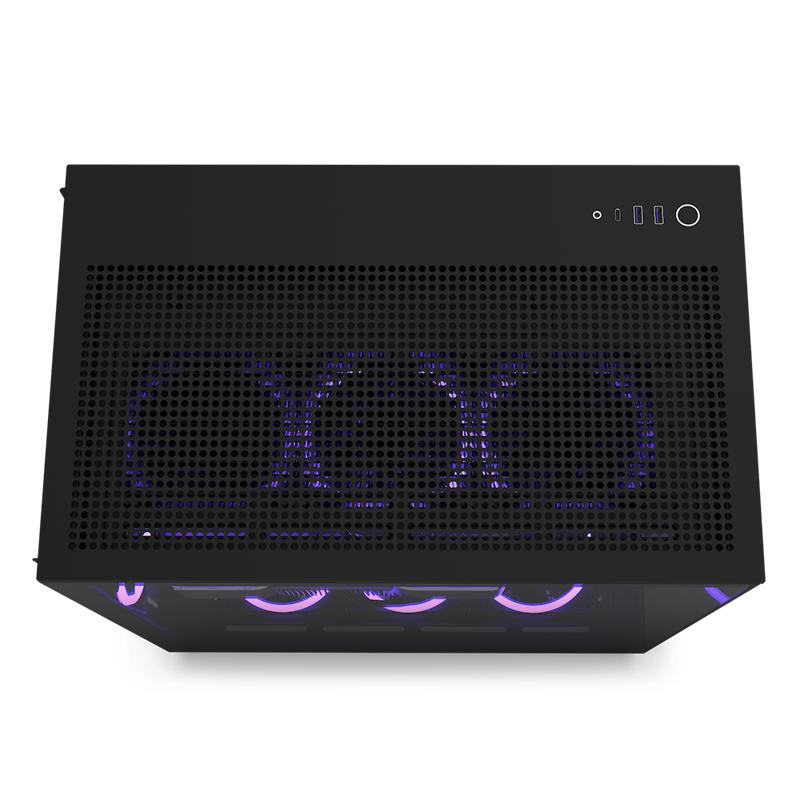

Perforated top panel for enhanced cooling
Direct airflow to the GPU for handling high-powered components
Enhanced experience with other products from the NZXT ecosystem
Includes four F Series 120mm Quiet Airflow fans
Inside the Box
H9 Flow Case1
Front I/O split cables1
120mm Quiet Airflow Fan (Case Version)4
Installation Accessories1
Manual1
Key Specs
Motherboard Support:Mini-ITX, Micro-ATX, ATX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
Dimensions
Height:495mm (With Feet)
Width:290mm
Depth:466mm
Weight:12.1 kg
Compatibility & Clearance
Max CPU Cooler Clearance:Up to 165mm
Max GPU Clearance:Up to 435mm
PSU Clearance:200mm
Cable Management:91mm
Front I/O Ports
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
Expansion Slots
Standard:7
Vertical:0
Drive Bays
2.5″:4+2
3.5″:2
Fan Support
Side:3 x 120mm
Top:3 x 120mm / 2 x 140mm
Bottom:3 x 120mm / 2 x 140mm
Rear:1 x 120mm
Filters:All Air Intakes
Radiator Support
Side:Up to 360mm with Push/Pull
Top:Up to 360mm
Bottom:Up to 360mm
Rear:Up to 120mm
Fan Specs
Model:F120Q (Case Version)
Speed:1200 ± 240RPM
Airflow:62.18 CFM
Static:1.05 mm – H2O
Noise:25.1 dBA
Fan Connector:3-pin
General
Warranty:2 Years
Model Number:CM-H91FW-01 (White) / CM-H91FB-01 (Black)
UPC:810074842495 (White) / 810074842488 (Black)
EAN:5056547202419 (White) / 5056547202402 (Black)
