feature summary
80 PLUS® Gold certified
Compact Size – 140 mm deep
Tight Voltage Regulation
Cable-free Connection Design
S3FC – Fanless until 30 % load
Multi-GPU setup
Gold plated connectors
10 years warranty
FOR FOCUS GX-1000:
As we continue to improve and update our products, we recently added a 12VHPWR cable to the cable set. Kindly note, during this transition period customers may purchase power supplies that are either with or without this 12VHPWR cable. We apologize in advance for the inconvenience.
RECOMMENDED INSTALLATION OF 12VHPWR CABLE
BOTH 8-pin connectors must be plugged in at all times to your power supply.
All connectors must be correctly INSERTED, CLICK-LOCKED and TIGHT.
DO NOT bend or apply force to the cable after it is plugged into place. (See below)

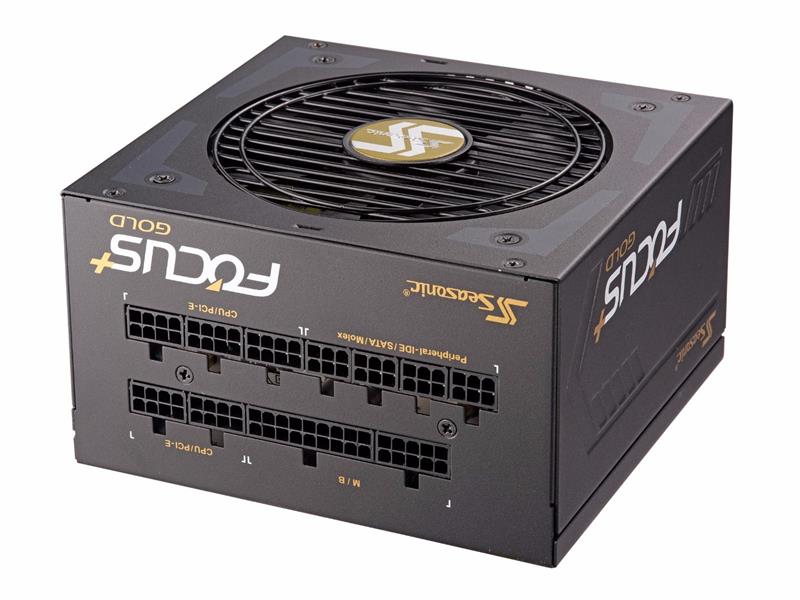

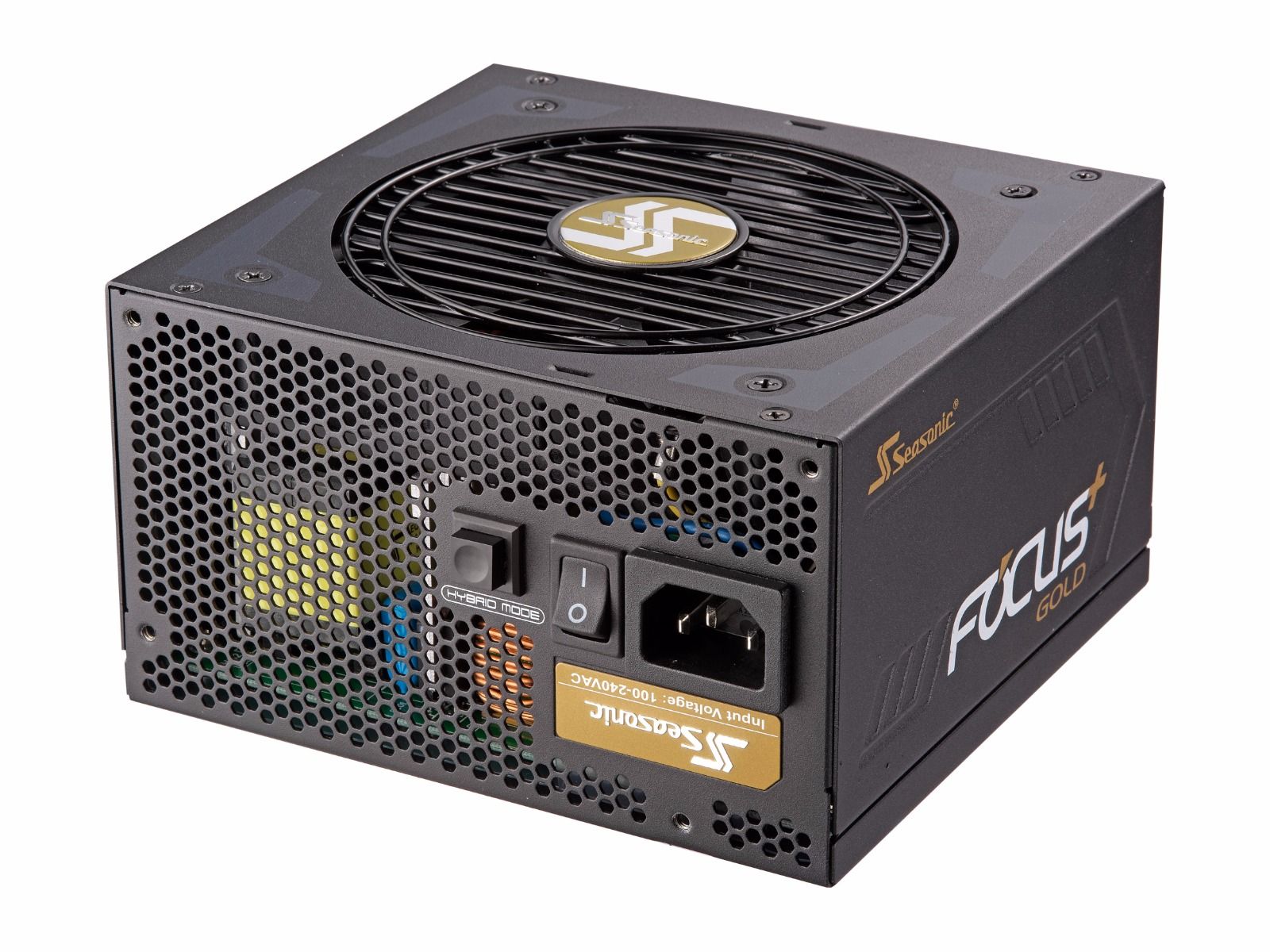

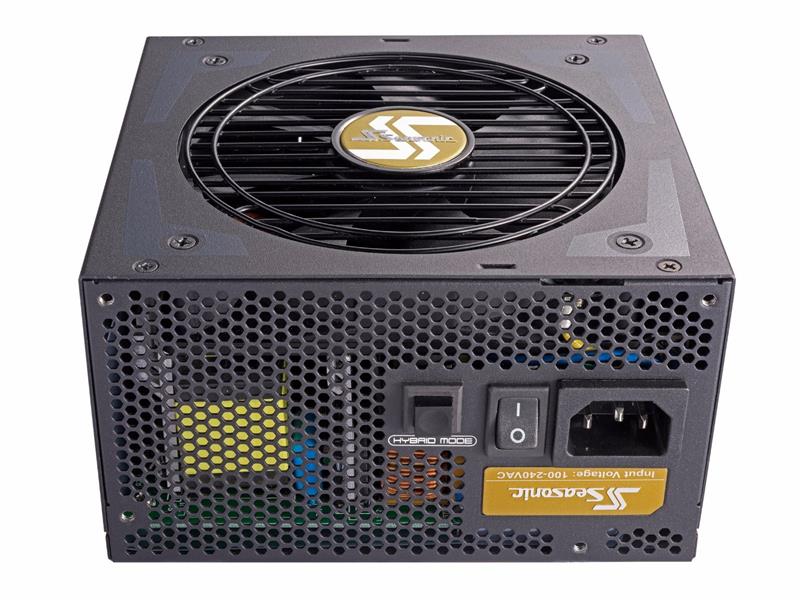

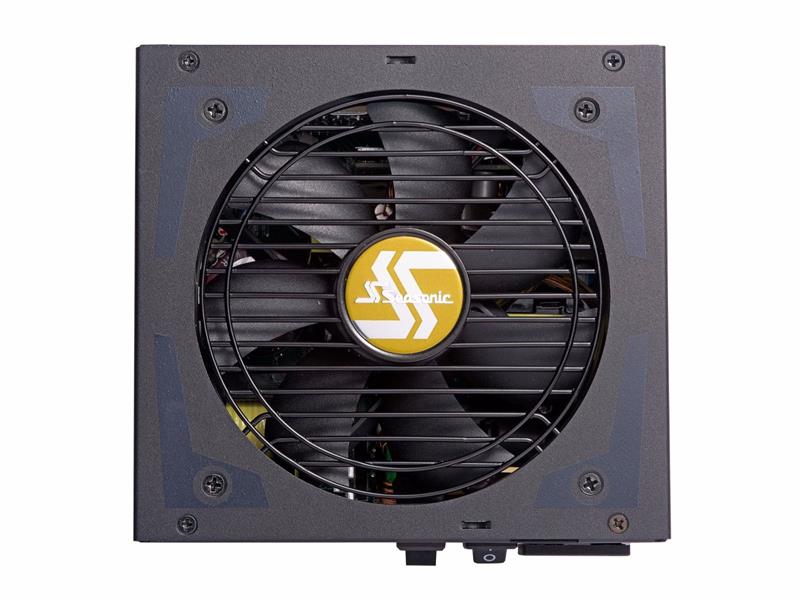

FOCUS-GX-650
Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control S3FC – Fanless until 30 % load
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % – 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 10 Years
