The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply:
– Fully compatible with ATX 3.0 and PCIe 5.0 standards
– Full modularity for the best cable management options:
– Added 12VHPWR cable to comply with the new graphic cards
– 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation
– Seasonic Hybrid Silent Fan Control for optimal cooling
– Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP
– 12 years warranty – our commitment to high quality

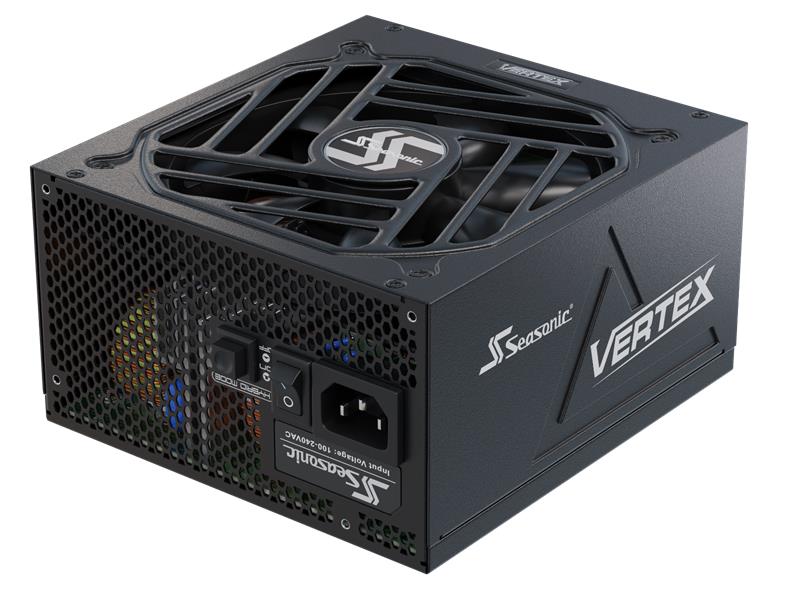

Vertex GX-850
Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level Platinum (See report)
Cybenetics Noise Level Lambda A (See report)
Form Factor Intel ATX 12 V
Dimensions 160 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 135 mm
Fan Control Digital Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % – 65 % RH
Cable Information Modularity Fully Modular
Cable type Flat black cables
Electrical Features Operating Temperature 0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years
