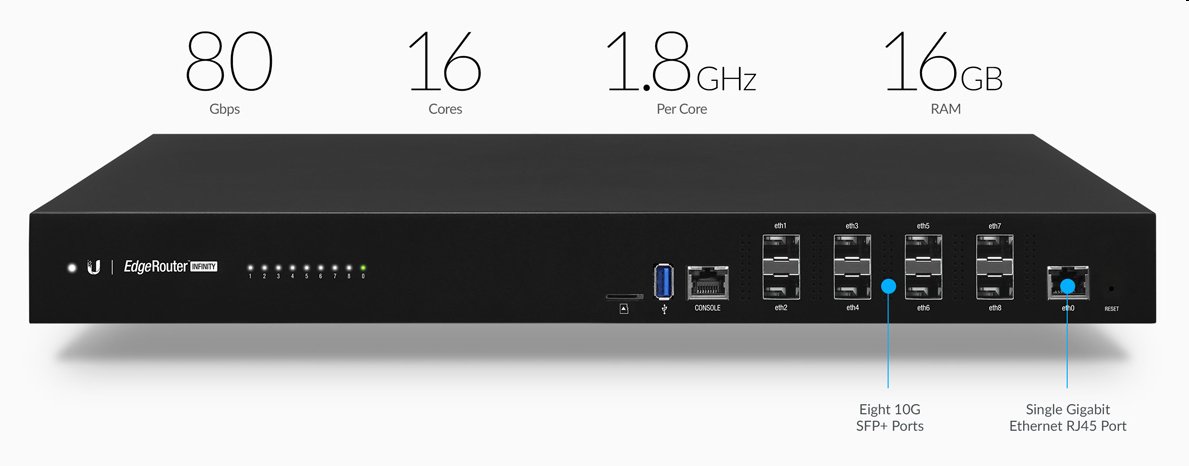

Compact, rack-mountable router with Gigabit Ethernet and fiber uplink capability and an 80 Gbps aggregate throughput.
(1) GbE RJ45 port
(8) 10G SFP+ ports

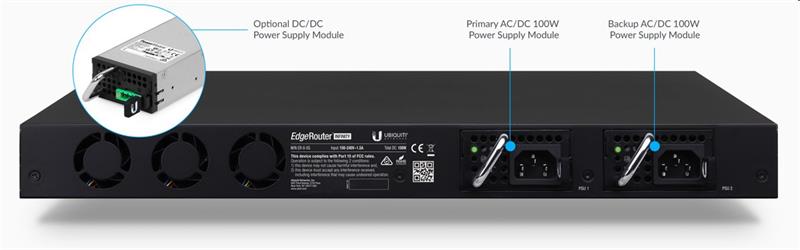

(2) Hot-swappable AC/DC PSU
Rack-mountable, 1U
Technical Specifications
Mechanical

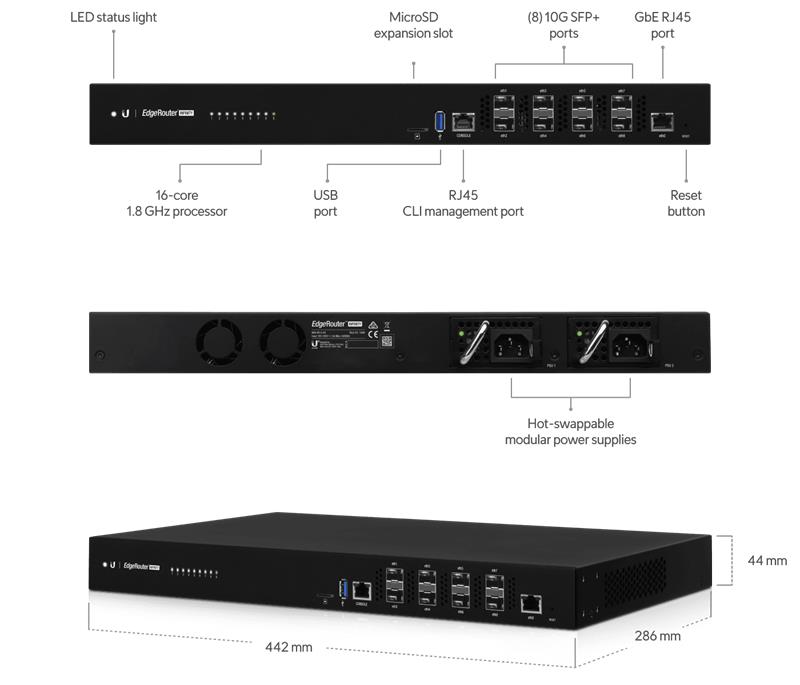

Dimensions 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight Without mount: 4.95 kg (10.9 lb)
With mount: 5.05 kg (11.1 lb)
Hardware
Processor MIPS64 16 Core 1.8 GHz
System memory 16 GB DDR4 RAM
On-board flash storage 8 MB NOR
4 GB eMMC NAND
Networking interface (1) RJ45 serial port
(8) SFP+ ports
(1) GbE RJ45 port
Power method (2) Hot-swappable AC/DC PSU
Supported voltage range AC input: 100–240V AC
Max. power consumption 100W
ESD/EMP protection Air: ± 24 kV, contact: ± 24 kV
Button Factory reset
LEDs System SFP+ data: Status
RJ45 ports: link/activity
Data port: link/activity
Button Factory reset
Mounting Rack
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
